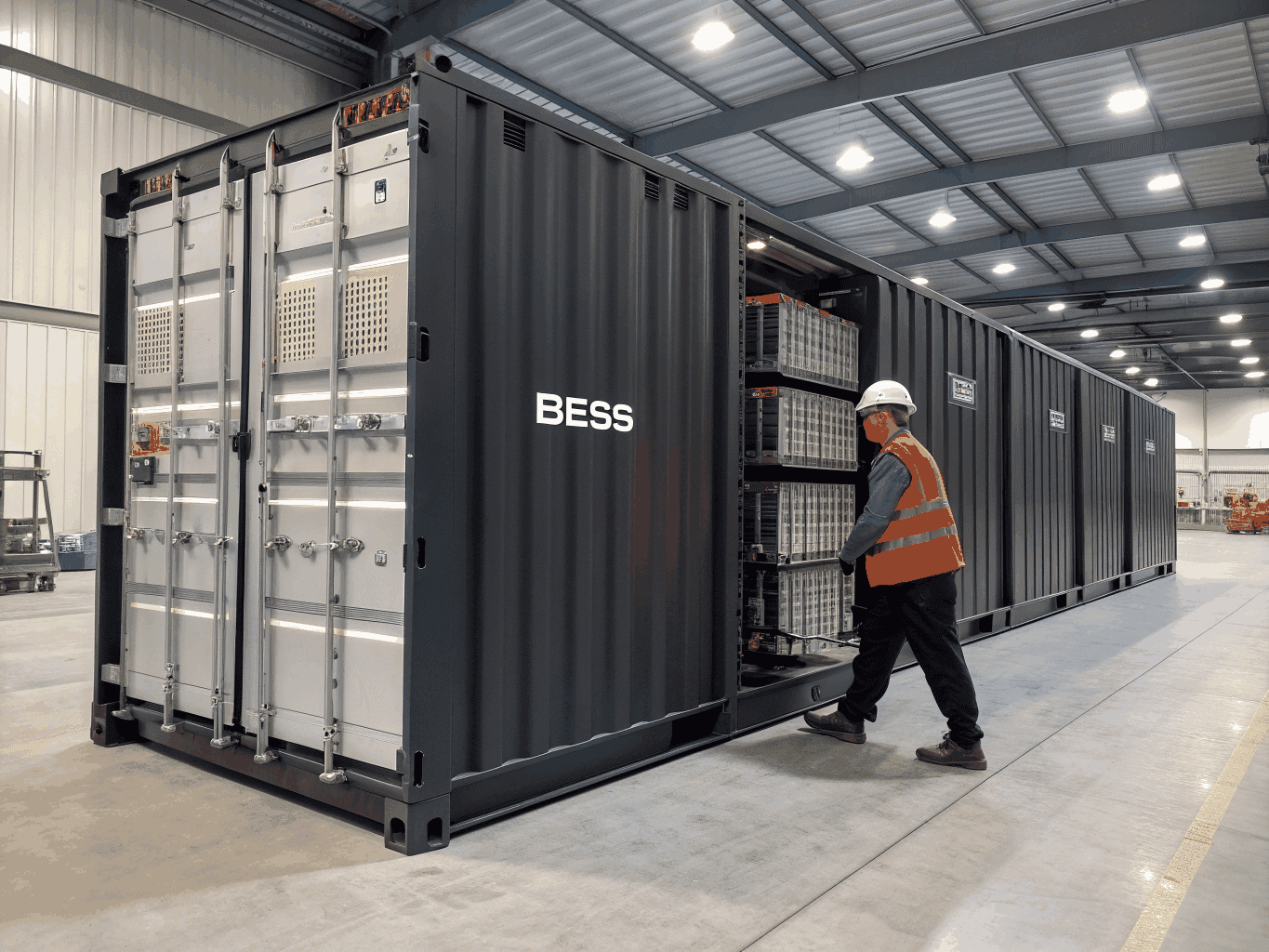

Custom Energy Storage Cabinets for Global Infrastructure
Enterprise-grade BESS enclosures engineered for thermal safety, scalability, and seamless OEM integration across utility-scale and commercial projects.
UL 9540 / 9540A Standards
Rigorous thermal runaway fire testing compliance

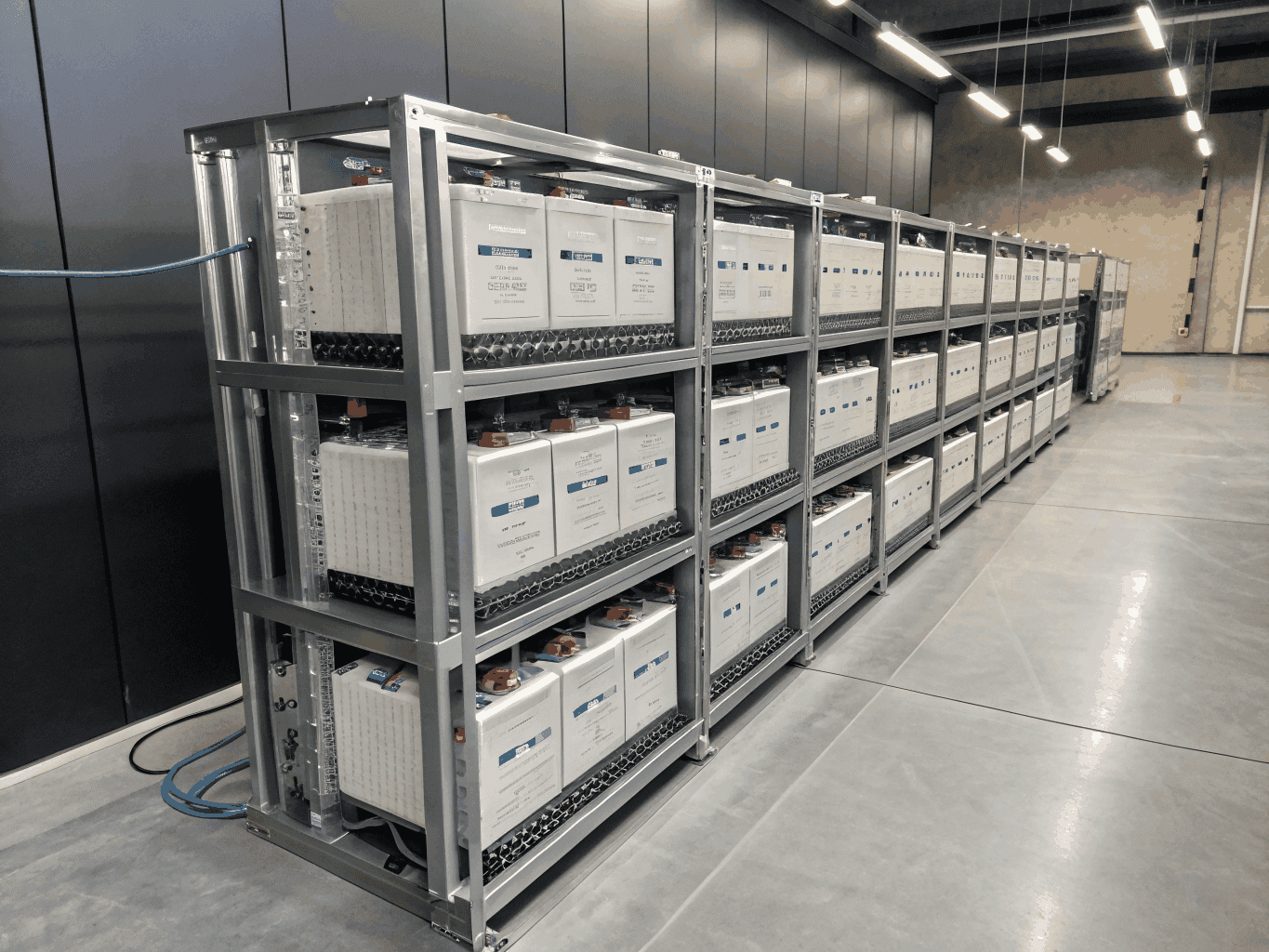

Modular Battery Rack Systems
Flexible 19-inch / 23-inch rack scalable integration
IP54 / NEMA 3R Engineered
Engineered liquid & forced-air HVAC thermal management
Thermal Runaway Containment
Aerosol fire suppression and gas venting integration
Technical Specifications & Enclosure Standards
Standard and custom manufacturing tolerances for industrial battery, power distribution, and heavy-duty control enclosures. Built to strict international safety and environmental benchmarks.
48" × 36" × 20" to 84" × 48" × 24"
48V DC – 600V AC / 4000A Max
Multi-Point RTD Sensor Array + Active HVAC
5052-H32 Al / 304 & 316L Stainless Steel
IP54 / IP55 & NEMA 3R / 4X Engineered
-20°C to +55°C (-4°F to +131°F)
Verified Compliance & Testing
All sheet metal fabrication assemblies undergo rigorous structural load, dielectric, salt spray, and ingress testing prior to shipment.
Need non-standard sizing or custom enclosure requirements? Our engineering team provides full DFM review.
Related reading: louver and airflow design
Engineered Enclosure Solutions for Critical Energy & Power Systems
From thermal containment baffling to turnkey modular battery racks, our precision sheet metal engineering minimizes integration cycle times and protects critical OEM installations worldwide.
Multi-layer thermal isolation with pressure relief vents prevents cascade failures and protects adjacent equipment. Built with internal baffle walls and blast-release directional exhaust ducts that channel critical heat away from sensitive cells and electrical controls during extreme thermal events, preserving surrounding industrial equipment.
Plug-and-play battery rack configurations scale from 10kWh to 1MWh+ capacity without redesign. Standardized mounting rails, high-strength slide-out shelves, and customizable busbar channels give energy storage integrators flexibility to match specific cell configurations and pack form factors across global projects.
Engineering aligned to UL 9540, UL 9540A, IEC 62619, and NFPA 855 standards streamlines OEM integration timelines. Every enclosure is manufactured with full traceability, structural FEA validation reports, mill test certificates, and third-party weld inspection records to accelerate your site-level approvals.
Our optimized 8-step production workflow delivers custom enclosures in 4-8 weeks from finalized CAD drawings. Combining automated fiber laser cutting, precision CNC press brakes, robotic seam welding, and in-house powder coating lines supports quick turnaround for high-mix, low-to-medium volume OEM runs.
Heavy-gauge galvannealed steel frames engineered to IP54 and NEMA 3R ingress protection specifications with polyurethane continuous foam gaskets. Multi-stage thermoset epoxy primer and UV-resistant outdoor architectural powder coats withstand marine salt spray, desert dust storms, heavy precipitation, and aggressive industrial fumes.
Optional CAN bus and Modbus-compatible thermal sensor nodes pair with cabinet control modules for real-time telemetry. Factory-integrated pre-wiring channels, dedicated DIN rails, smoke detection probe mounts, and BMS communication cutouts eliminate costly field modifications and cable routing delays.
Need custom sheet metal enclosures built to your exact specs?
Review CAD models, material options, and volume manufacturing lead times with our engineering group.
Field-Tested Energy Storage Cabinet Deployments
Engineered sheet metal enclosures built to endure extreme environmental conditions, heavy thermal loads, and demanding mission-critical duty cycles worldwide.
System Uptime
99.8%
Autonomous Run Time
4.5 Hrs
Diesel Fuel Saved
68%

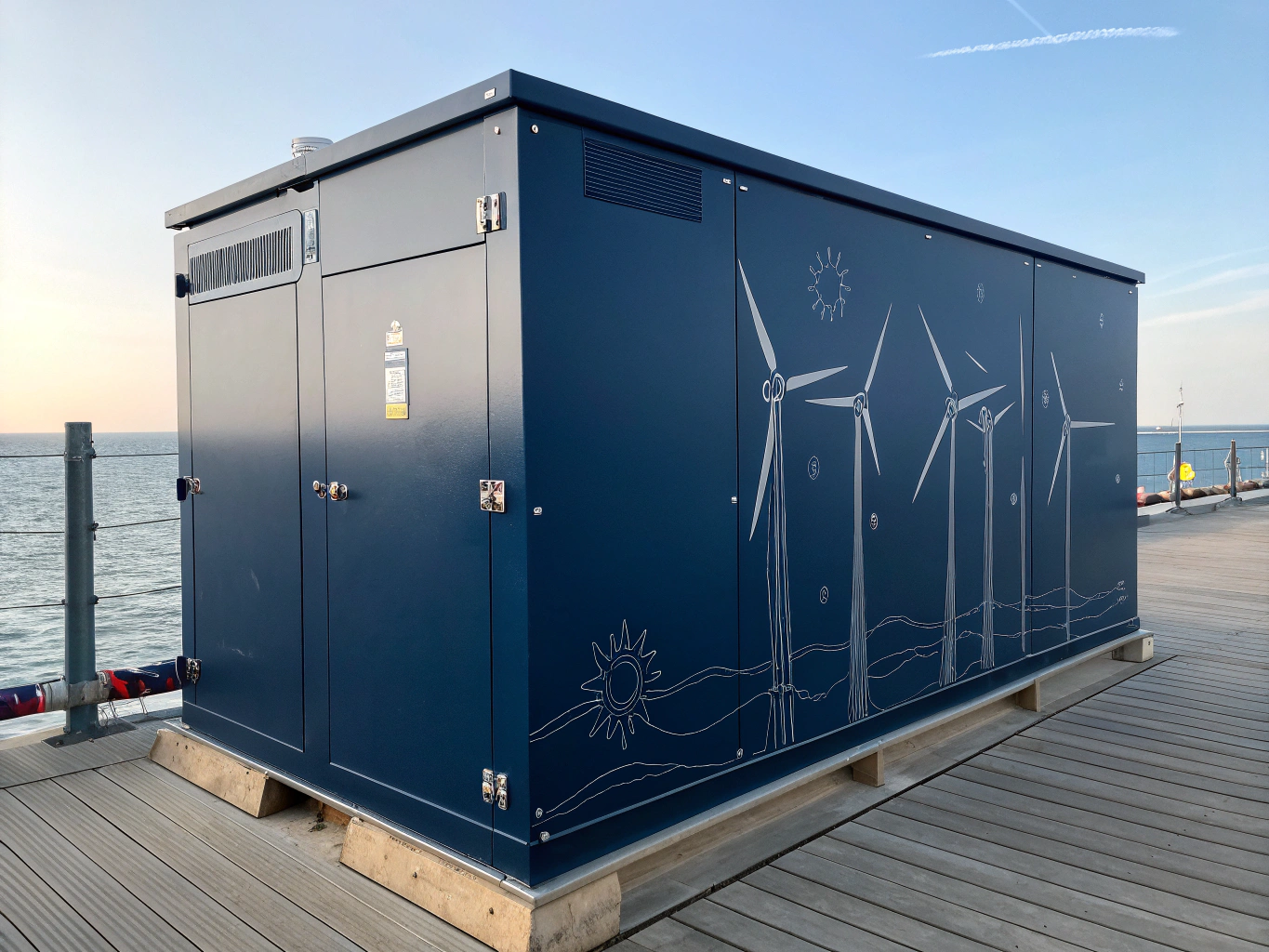

Off-Grid Island Resilience & Continuous Power Autonomy
A remote island community facing extreme humidity, salt spray corrosion, and frequent diesel generator dropouts required a ruggedized energy storage solution. We engineered custom stainless steel outdoor battery enclosures to IP65 specifications equipped with automated environmental conditioning. The cabinets now anchor the local hybrid microgrid, harmonizing solar arrays with marine battery systems for uncompromised community resilience.
Mitigated extreme saltwater atmospheric corrosion and eliminated diesel brownout interruptions across critical municipal infrastructure.
2200 x 1400 x 1100 mm
500 kWh array engineered to NEMA 4X
Closed-Loop HVAC & In-Rack Liquid Cooling
Annual Dispatch
120 MWh
Peak Shaving Factor
34%
Curtailment Cut
92%

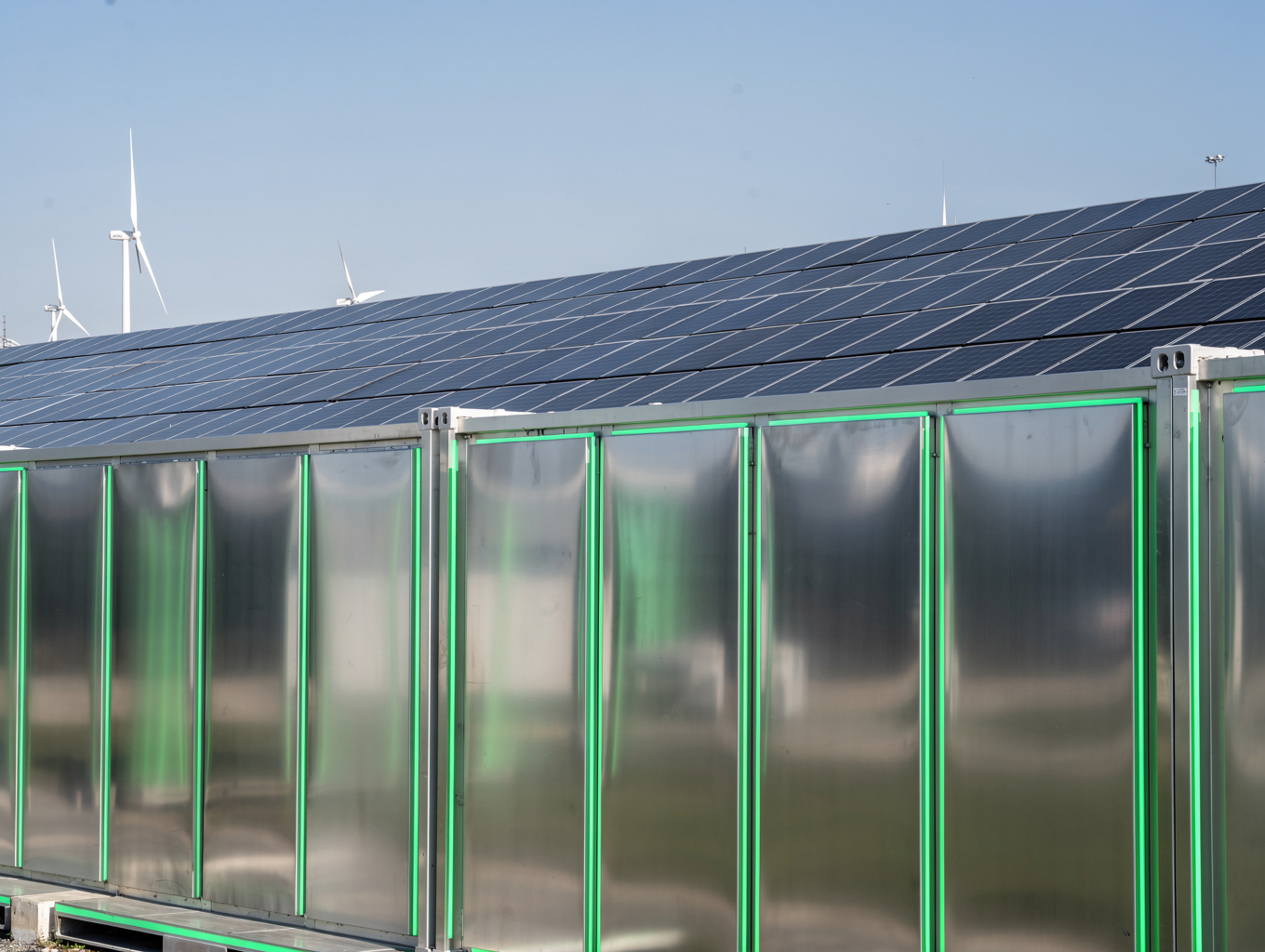

High-Capacity Solar Farm Peak Shaving Array
A utility-scale 80MW photovoltaic generation facility required robust multi-bay battery enclosures to stabilize grid injection during intense peak daylight hours and feed stored energy into evening high-demand curves. Our engineered heavy-duty multi-bay enclosures feature seismic zone 4 rated internal bracing, dual-point compression latches, and integrated explosion-relief venting to safeguard operations under severe desert ambient heat.
Absorbed thermal surges reaching 48°C ambient while managing multi-megawatt rapid cycling without capacity degradation.
10-Bay Modular System (2400mm H)
2.4 MWh Integrated ESS
Smart Redundant Chilled Fluid Circulation
Switchover Speed
<50 ms
Factory Scrap Cut
100%
Annual Cost Savings
$185k

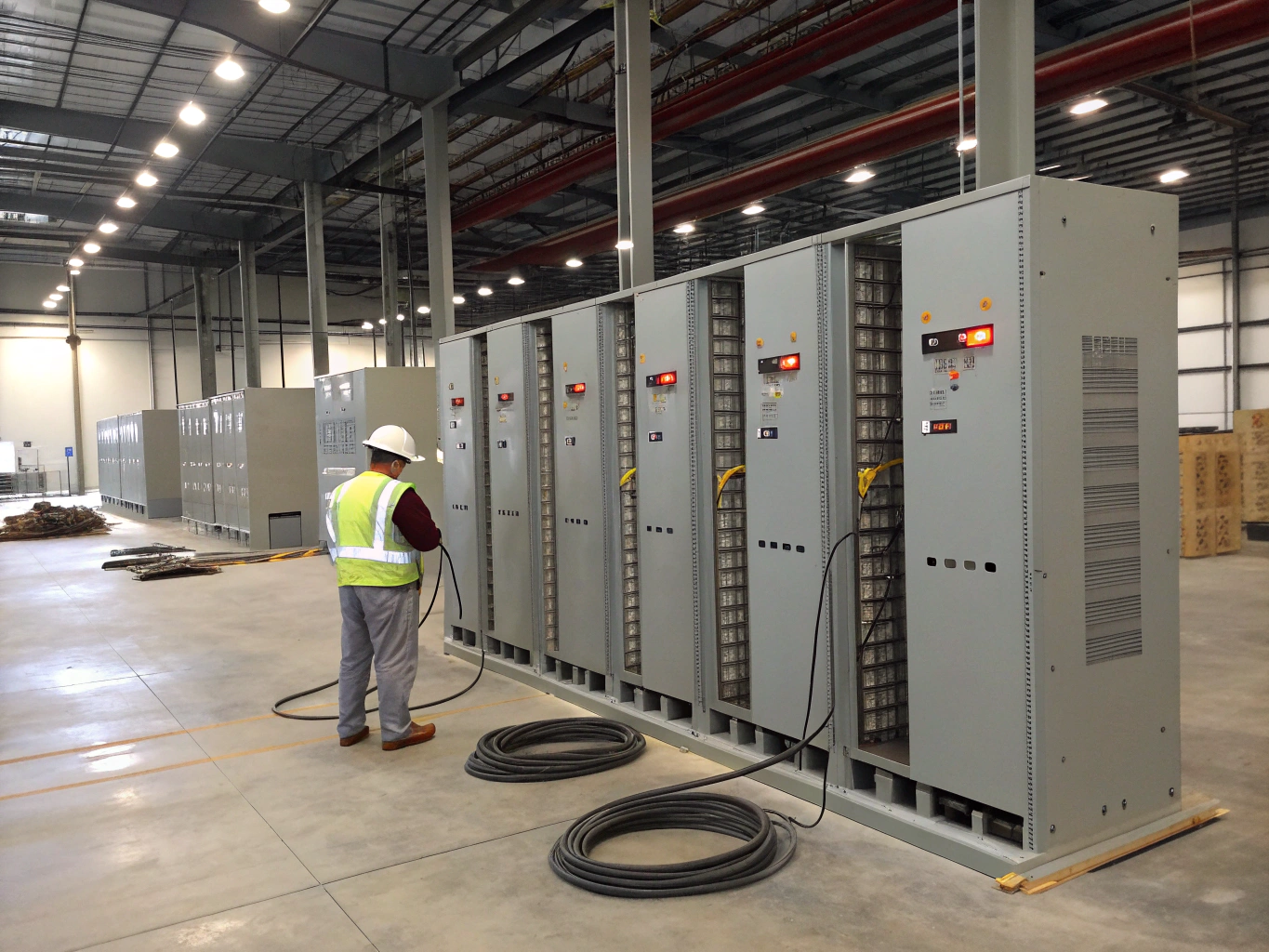

Zero-Latency Uninterruptible Power for Automated CNC Lines
A high-precision tier-one automotive tooling plant suffered costly micro-outages and voltage sags that halted automated multi-axis milling cells. We fabricated heavy-gauge sheet steel indoor UPS cabinets and battery racks engineered to NEMA 12 housing high-discharge lithium-ion modules alongside static transfer switches. The design isolates sensitive electronics from factory dust while providing instantaneous, reliable battery transfer.
Eliminated line scrap and precision spindle damage by providing millisecond-level power bridging against utility fluctuations.
2000 x 800 x 1000 mm
350 kWh High-Rate Discharge
Forced Air Cooling with HEPA Filtration
Demand Charge Cut
42%
Simultaneous Cars
8 Ultra-Fast
Grid Expansion Cost
$0 Extra

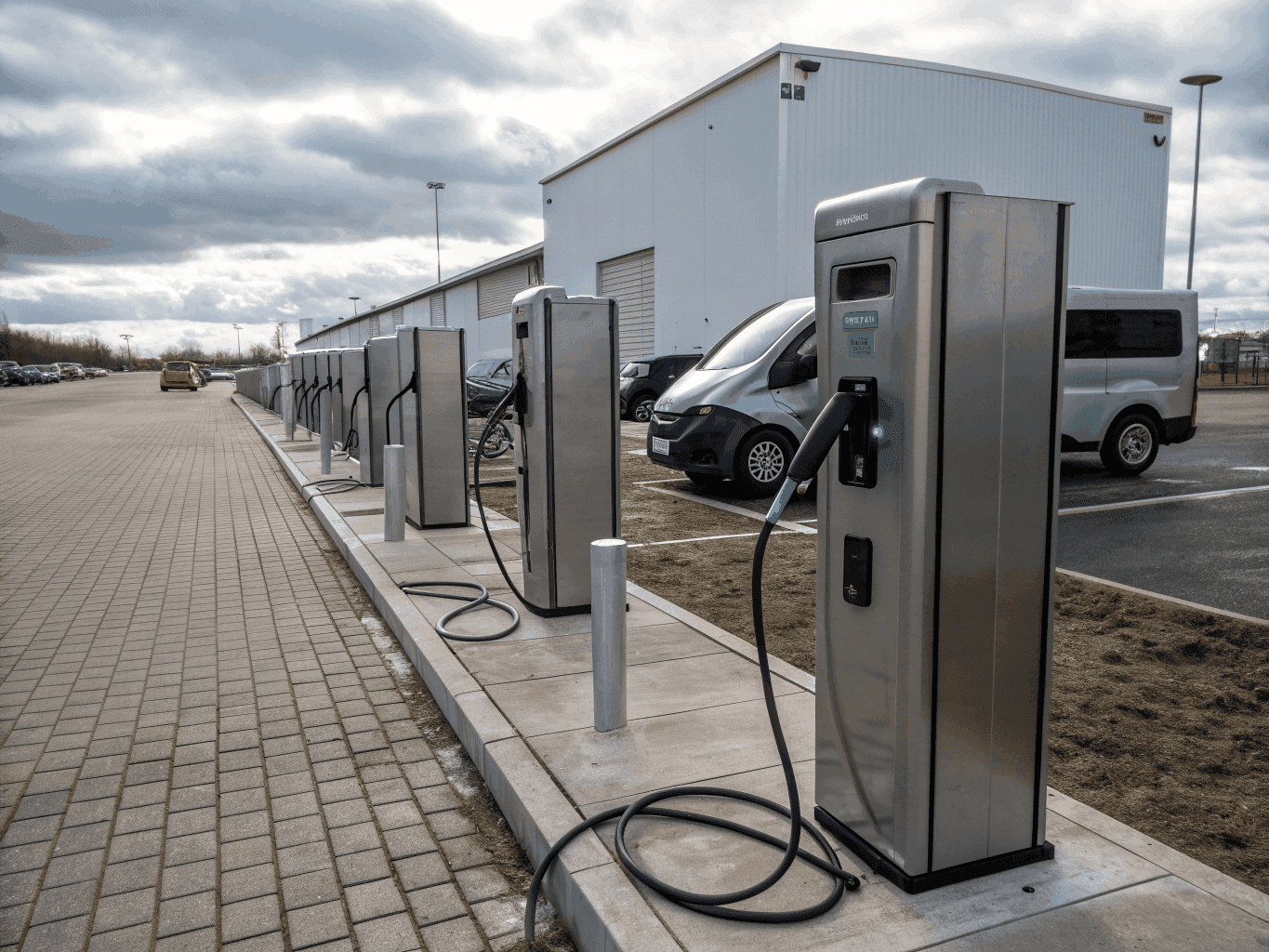

High-Power Fast-Charging Station Buffer System
An ultra-fast 350kW commercial EV charging hub faced prohibitive local grid upgrade fees and extreme demand charge penalties during transit rush hours. Our compact dual-wall insulated outdoor energy storage cabinets act as dynamic power reservoirs. They trickle-charge from the municipal grid overnight and discharge during peak traffic congestion to support multiple simultaneous fast-charge cycles.
Bypassed six-figure substation expansion costs while protecting site operations from steep utility peak demand penalties.
1800 x 1200 x 950 mm
400 kWh C-Rate Optimized
Dual-Wall Insulated Active Heat Exchanger
Have a Custom Storage Enclosure Specification?
Our engineering team reviews your thermal dissipation, IP ingress protection, and seismic structural requirements to build production-ready sheet metal prototypes.
Complementary Enclosure Systems
Industrial-grade cabinets, thermal protection modules, and racking architecture built to exact customer specifications for critical energy and automation deployments.
- Dimensions: Custom (43" to 85" displays)
- Protection: IP65 / NEMA 4X engineered
- Application: Commercial displays & digital signage

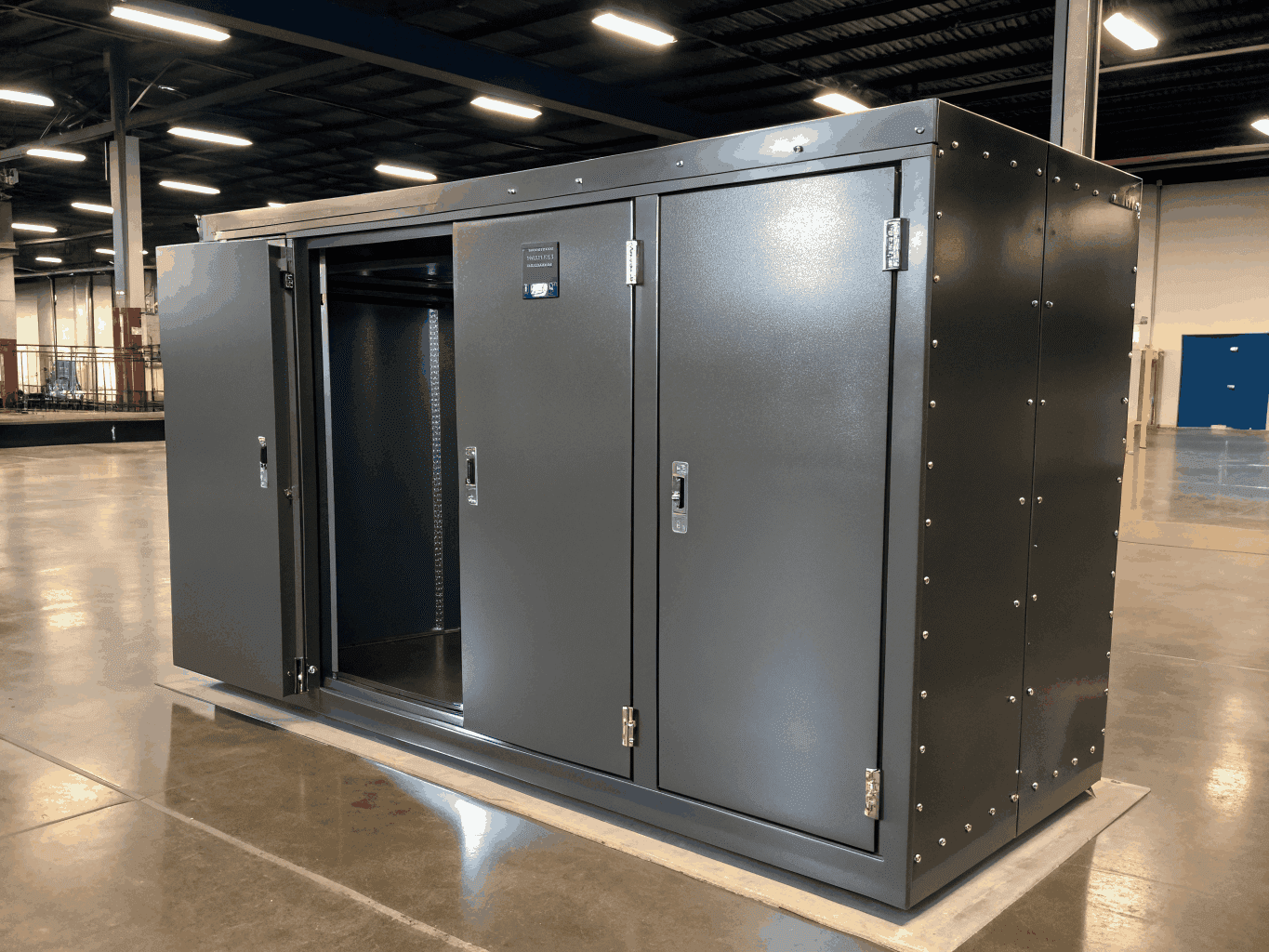

- Dimensions: Up to 2200H x 1200W x 800D mm
- Protection: IP55 / IP66 engineered
- Application: Power distribution & automation
- Dimensions: Standard 19-inch rack / chassis
- Protection: Corrosion-resistant powder finish
- Application: High-density heat dissipation
- Dimensions: Configurable 12U to 48U heights
- Protection: Heavy-gauge reinforced structure
- Application: ESS & industrial backup power
8-Step Production Process
A structured, highly controlled OEM/ODM fabrication pipeline engineered for quality, compliance, and predictable delivery times.
Process Description
Engineering validates custom specifications against thermal and electrical requirements.
DFM Report & Specification Sign-off
Engineering validates custom specifications against thermal and electrical requirements.
Detailed 3D modeling and CFD thermal simulation to optimize structural integrity and heat dissipation.
Order standards-based raw materials and battery rack components per validated design standards.
Precision CNC cutting, robotic welding, and automated surface preparation of the cabinet frame.
Install battery racks, thermal sensors, busbars, and management electronics.
Thermal runaway simulation, ingress protection verification, and high-voltage electrical safety testing.
Final dimensional verification via CMM and functional inspection strictly against specifications.
Protective multi-layer packaging, export customs documentation, and logistics coordination.
Ready to review your custom fabrication project?
Send your 3D CAD files or project specification sheets for an engineering feasibility review and formal quotation.
Standards-Based Manufacturing & Global Compliance
Our custom sheet metal enclosures and industrial cabinets are fabricated to satisfy international safety directives, thermal management standards, and rigorous outdoor durability benchmarks for global OEMs.
Related reading: lithium-ion charging safety
Related reading: IP and NEMA ratings
Comprehensive standard governing energy storage system enclosures, covering containment integrity, thermal runaway mitigation, and electrical safety under demanding industrial environments.
Thermal runaway containment verification; fire propagation resistance; high-voltage insulation clearance; structural seismic rigidity.
Prescribes stringent safety requirements for the fabrication of stationary battery enclosures and battery management integration under regular and abnormal operation.
Drop and impact resistance; short-circuit containment; cell thermal control airflow design; grounding continuity.
Defines spatial clearance, ventilation thresholds, and mechanical barrier criteria to prevent hazard spread between modular enclosure compartments.
Multi-barrier fire compartmentation; deflagration explosion venting geometry; specialized gas exhaust routing; smoke seal compliance.
Specifies mechanical containment, electrical separation, and electromagnetic interference shielding criteria for telecom and data center backup power enclosures.
Operator protection barriers; EMC/RFI cabinet shielding; internal busbar segregation; anti-corrosion surface finishing.
Validates enclosure sealing performance against windblown rain, dust accumulation, ice formation, and environmental corrosion in outdoor utility locations.
Formed-in-place foam gaskets; labyrinth water louvers; zinc-plated structural hardware; multi-stage powder coat adhesion testing.
Every custom fabrication program follows strict factory acceptance tests (FAT). We pair dimensional coordinate measurements with dynamic testing to deliver turnkey compliance for power, ESS, and industrial deployments.
Require Custom Standard Certification for Your Enclosure Project?
Our engineering team prepares design-for-manufacturing (DFM) files, sample testing, and third-party laboratory documentation tailored to your target regional codes.
Frequently Asked Questions
Technical specifications, custom fabrication capabilities, containment standards, and manufacturing workflows for our industrial battery and equipment enclosures.
Our containment architecture combines multi-layer ceramic and aerogel thermal insulation barriers, calibrated directional pressure relief vents with flash-arresting mesh, integrated multi-point gas/thermal sensor arrays, and dedicated blast-rated containment vessels designed to isolate cascading cell failures.
Have specific project dimensions or thermal requirements?
Speak directly with our engineering team for custom CAD review, DFM analysis, and rapid prototype quoting.
Industrial Cabinet Configuration System
Configure custom sheet metal enclosures engineered for lithium-ion storage, power distribution, and harsh environmental deployments. Every specification is manufactured to tight ISO tolerances.
Cabinet Size
Standard industrial rack units or precision bespoke footprints.

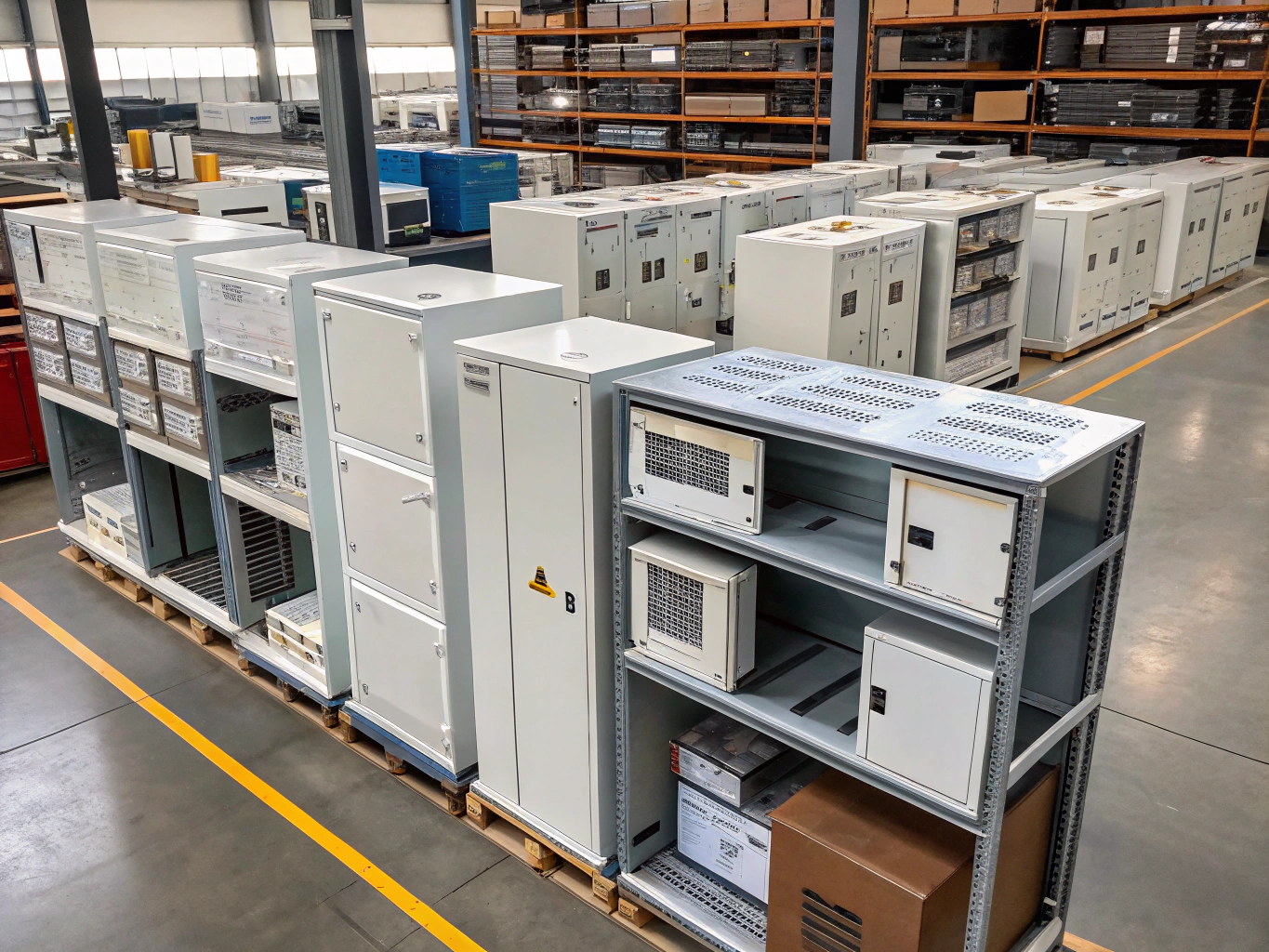

42U Standard Industrial
2000mm H x 800mm W x 1000mm D | Max Load 1500kg

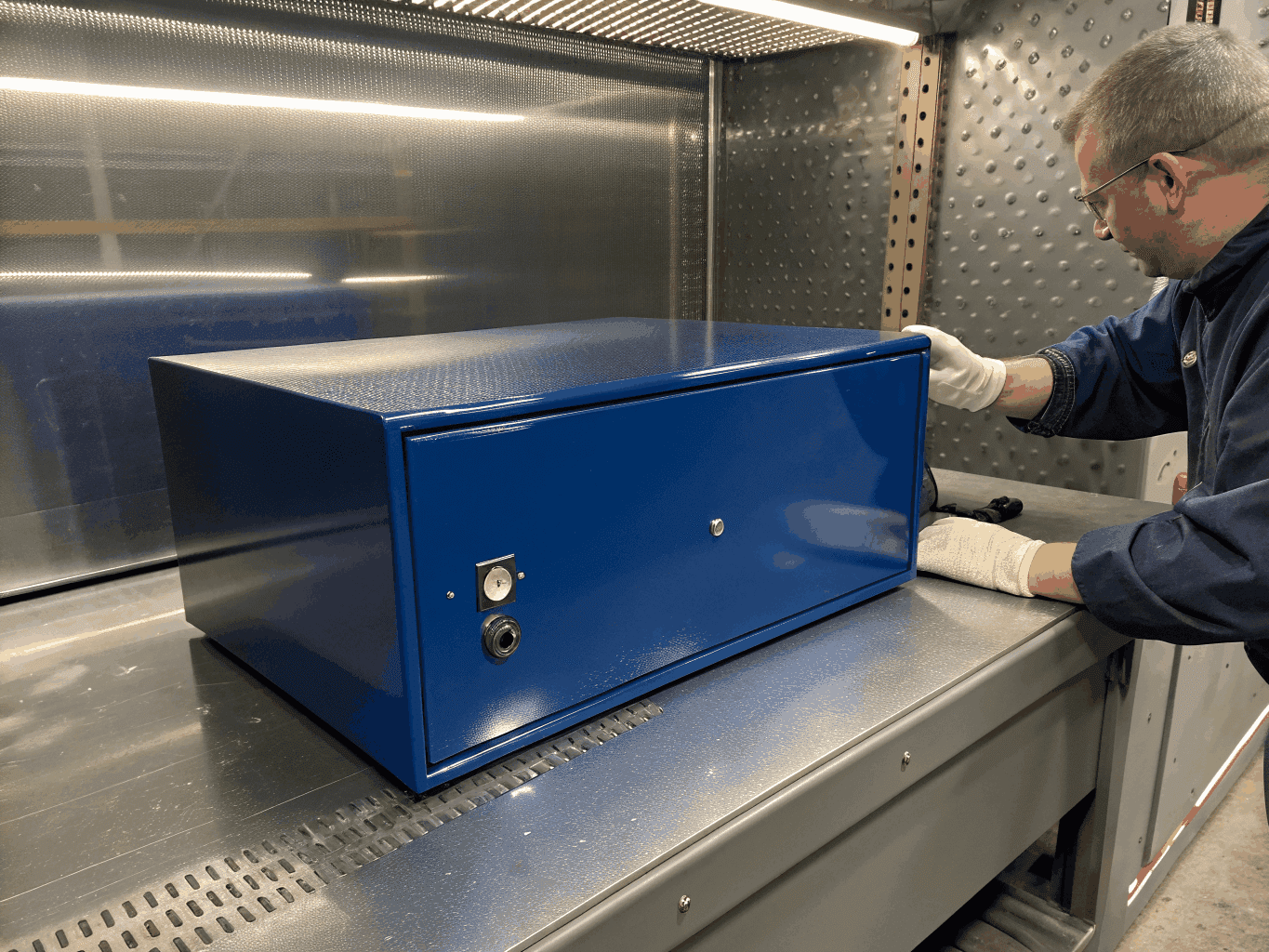

24U Compact Enclosure
1200mm H x 600mm W x 800mm D | Max Load 800kg

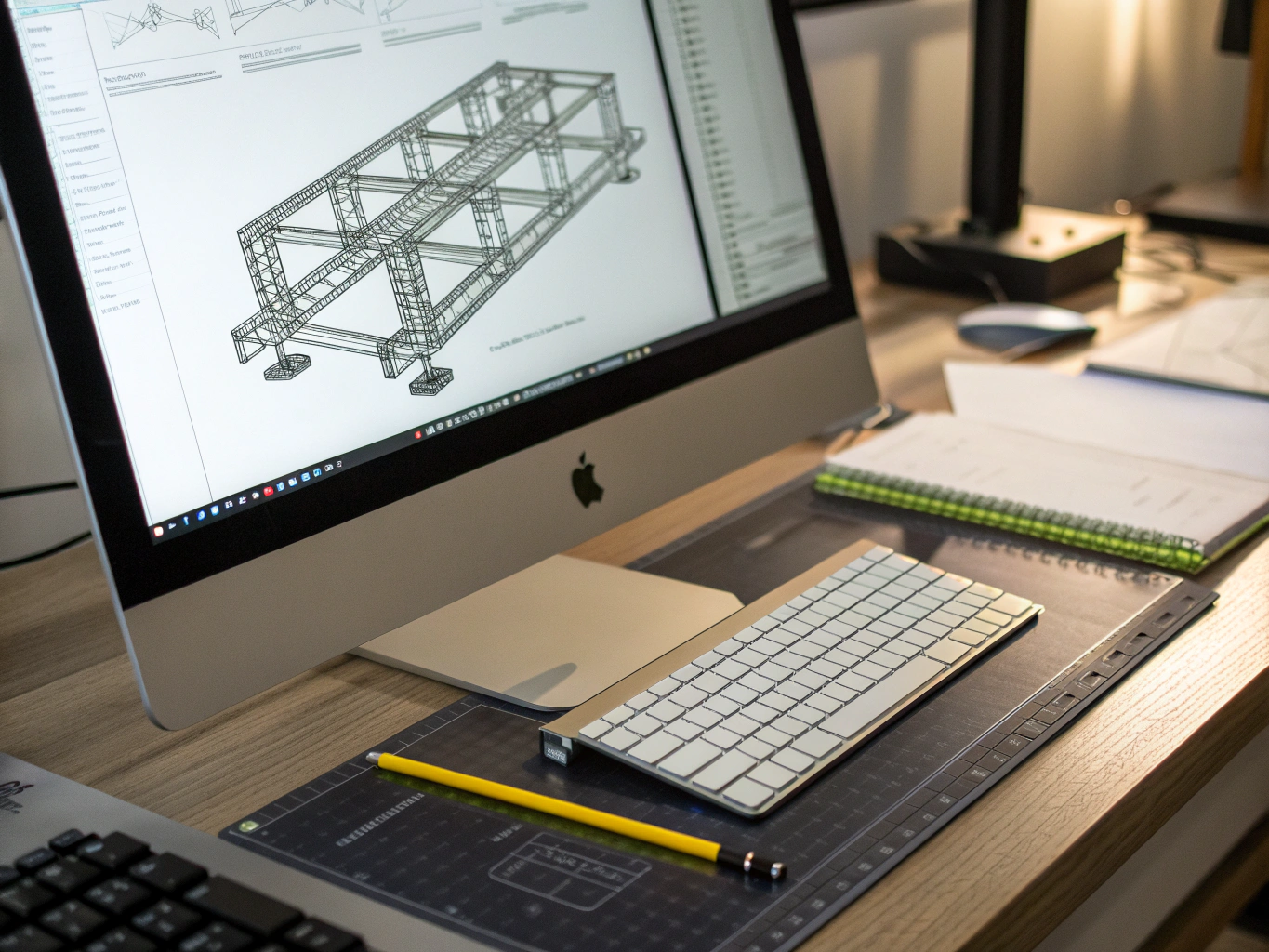

Custom Dimension Spec
Bespoke H x W x D per CAD / SolidWorks engineering model
Ready to Integrate Custom Energy Storage Cabinets?
From precision laser cutting to modular rack assemblies and IP-rated thermal management, our engineering team brings your OEM battery and power distribution designs to production quickly and reliably.
