SAFEFABER / CAD-ENG-REV4.2
SHEET METAL ASSEMBLY [SOLIDWORKS / FEA]
Precision 3D CAD technical drawing and sheet metal engineering assembly model
TOL: Per your drawing • K-FACTOR: 0.44
DFM PASSED • 100% DRAWING RELEASE
MATERIALAL5052 / SUS304 / SPCC
STANDARDISO 2768-mK
FILE FORMATSSTEP / DXF / IGES
B2B Custom Sheet Metal Engineering

Design & Engineering Service

SafeFaber delivers end-to-end custom metal design, precision DFM optimization, and contract manufacturing engineering. We transform initial industrial concepts and 2D/3D sketches into production-ready, cost-optimized sheet metal assemblies built for scale.

24-48hDFM Feasibility Feedback
Per your drawingPrecision Tolerance Band
100%Production Yield Readiness
Engineering Capabilities

Full-Cycle Concept to Mass Production

Integrated B2B Custom Metal Design & Contract Manufacturing

At SafeFaber, our dedicated design and engineering service bridges the gap between creative industrial concept and high-yield manufacturing reality. We understand that precision sheet metal fabrication begins long before laser beams touch raw steel. By embedding advanced engineering analysis directly into your design phase, we help ensure that every bend, cut, weld, and fastener placement is optimized for repeatability and cost efficiency.

Whether you provide early-stage industrial sketches, standard 2D blueprints, or complex 3D assemblies, our seasoned sheet metal engineers conduct in-depth design audits. We specialize in custom metal design for complex telecommunications enclosures, battery storage racks, power distribution cabinets, and heavy-duty structural frames, refining CAD models to minimize scrap rates, reduce machine cycle times, and eliminate secondary operations.

From rapid functional prototyping to full production tooling release, SafeFaber acts as your agile engineering extension in China. Our seamless CAD-to-CNC pipeline helps minimize loss in dimensional fidelity, delivering robust sheet metal solutions aligned with ISO 2768-mK tolerances and international manufacturing standards.

Related reading: DFM for sheet metal

Core Competencies

Core Engineering Services

Specialized sheet metal engineering solutions designed to accelerate prototyping and secure high-volume production integrity.

Chassis & Frame Architecture
Tolerance Stack-up Analysis
Thermal Dissipation Channeling
Bend Radius Standardization
Laser Cut Path Streamlining
Weld & Fastener Access Refinement
Parametric 3D Solid Modeling
Flat Pattern Unfolding with K-Factor
ASME Y14.5 GD&T Dimensioning

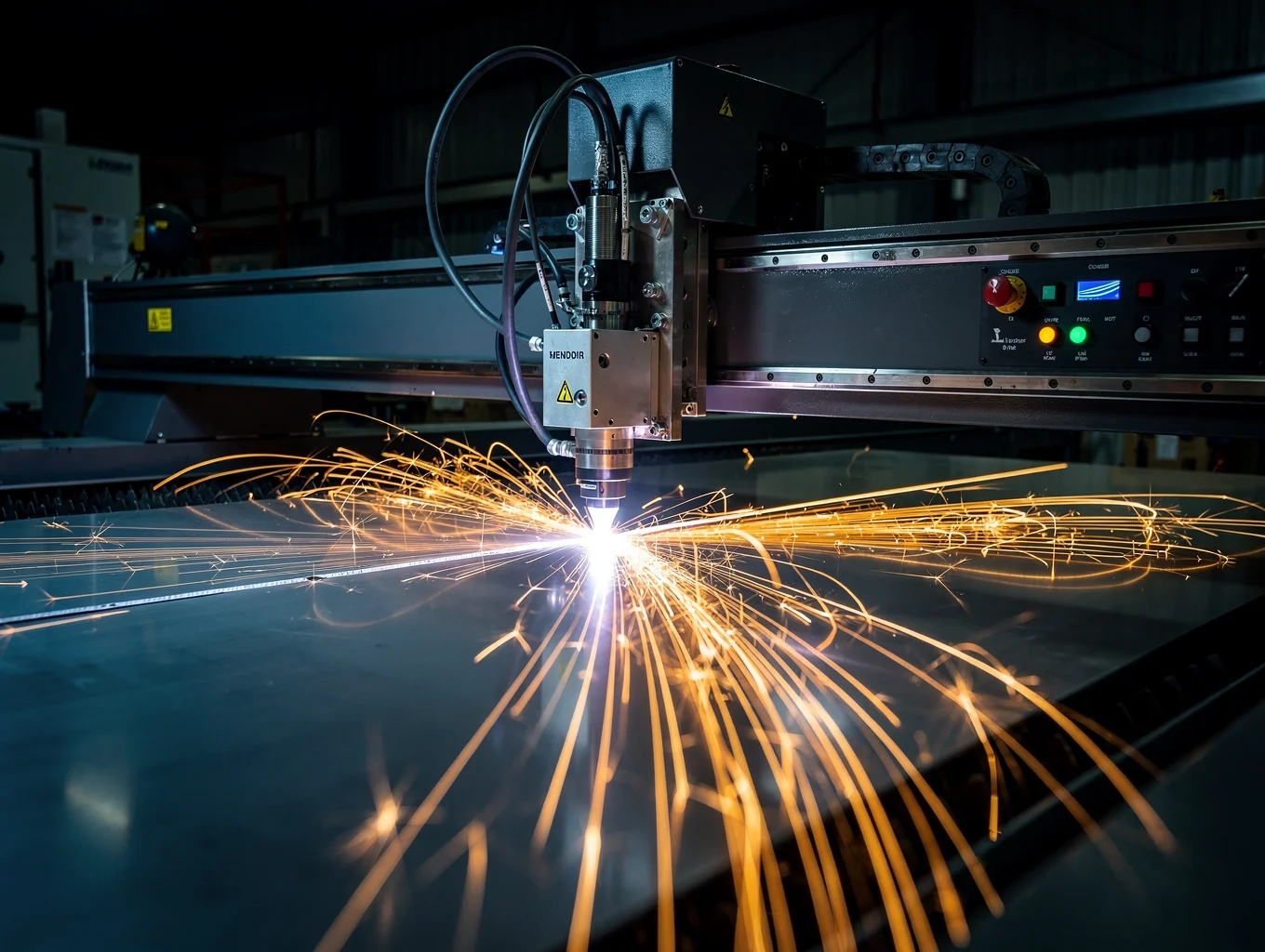

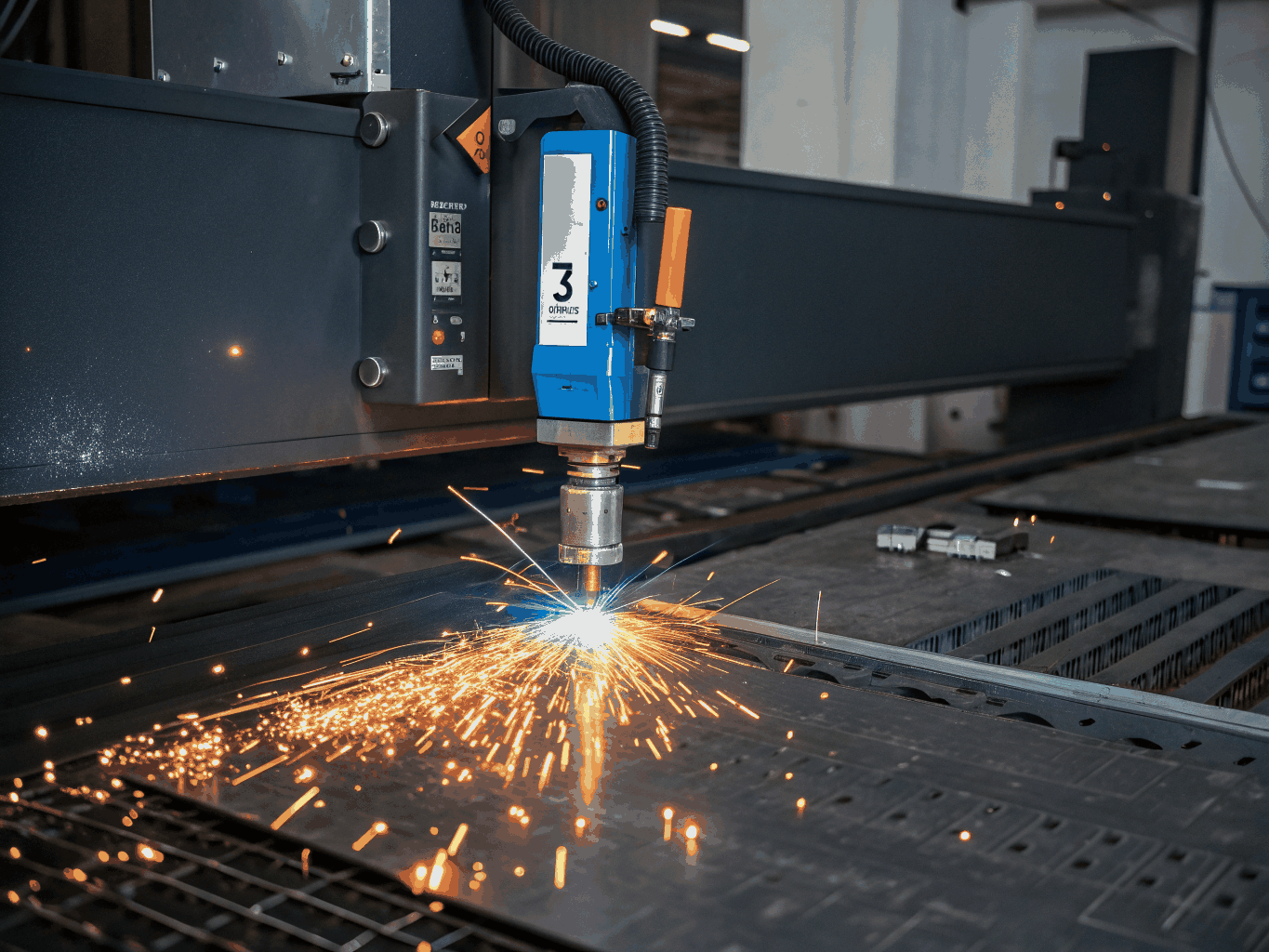

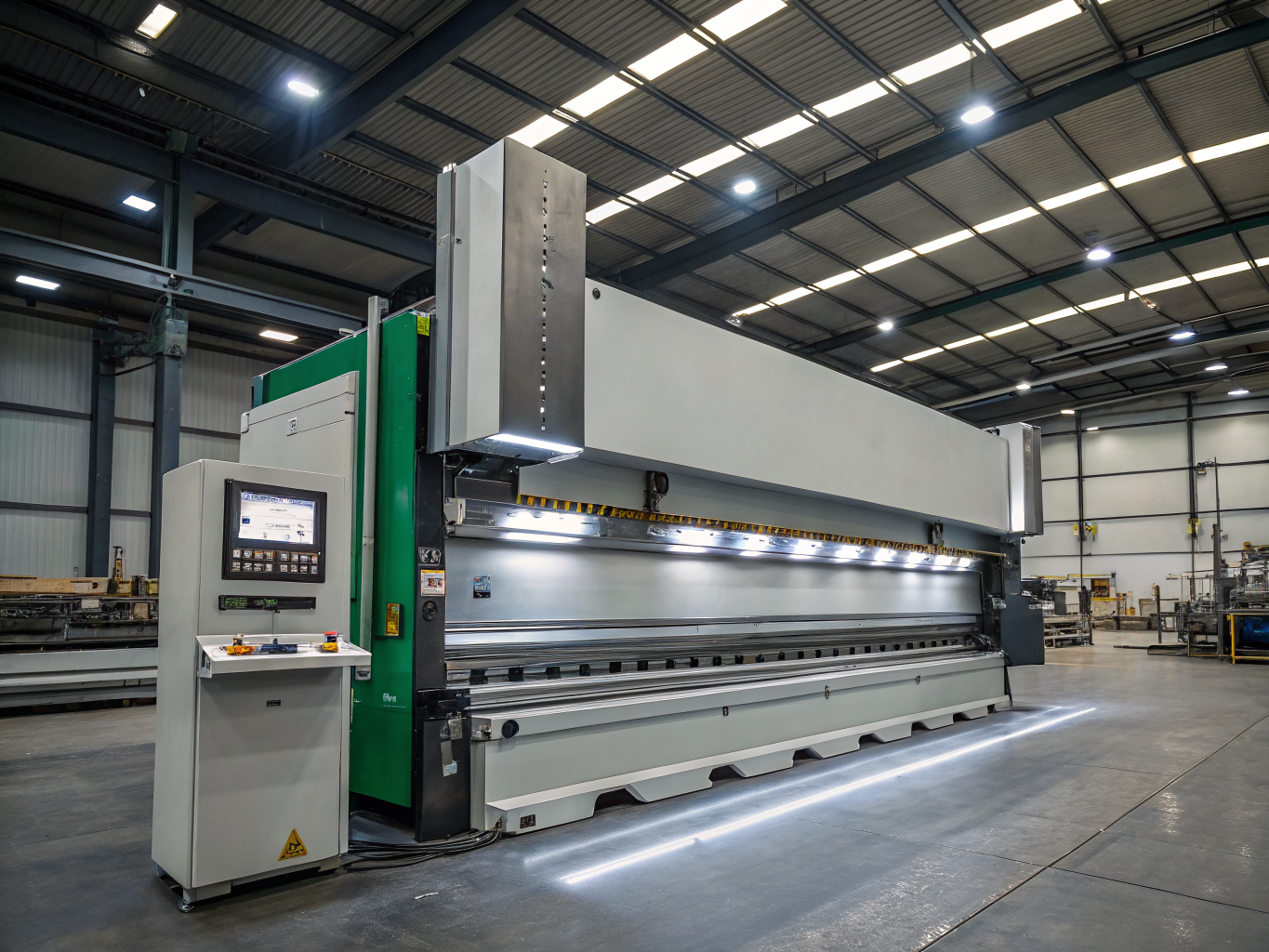

Quick-Turn CNC Laser & Forming
Functional Fit & Assembly Check
Pilot Batch Verification
Engineered to IP55/IP65/IP66 Gasket Geometries
EMC/RFI Shielding Integration
Labyrinth & Drainage Design
Sheet Nesting Yield Maximization
Hardware & Fastener Consolidation
Alternative Alloy Evaluation
Structured Process

Design & Development Workflow

A rigorous 7-stage engineering pipeline eliminating design flaws before tooling and high-speed CNC production.

STAGE 01

Requirement Briefing

Specs, GD&T & Application Analysis

STAGE 02

Concept Design

3D Mechanical & Chassis Layout

STAGE 03

DFM Review

Bending, Forming & Nesting Audit

STAGE 04

Drawing Release

DXF, STEP & Flat Patterns

STAGE 05

Prototype Validation

Sample Fabrication & Fit Test

STAGE 06

Optimization

Feedback Loop & Tolerance Tuning

STAGE 07

Mass Production

SOP Sign-Off & Line Rollout

Engineering Infrastructure

Software Stack & Manufacturing Standards

CAD / CAE Software Stack

Direct multi-format interoperability

SolidWorksCAD / Modeling

3D Parametric Sheet Metal & Assembly

AutoCADCAD / Drafting

2D Production & Flat Pattern DXF Release

CATIAAdvanced CAD

Complex Surface & Structural Modeling

ANSYS FEACAE / Simulation

Finite Element & Thermal Stress Analysis

International Standards

Verified dimensional & welding compliance

ISO 2768-mK
General Tolerances (Linear & Angular)

Fine-to-medium precision manufacturing

DIN 6930
Sheet Metal Stamping Tolerances

Punching, shearing, and forming accuracy

AWS D1.1 / D1.2
Structural Welding Code (Steel & AL)

Standards-based weld integrity and joint strength

IEC / NEMA / IP
Enclosure Ingress Protection

Engineered to IP54, IP55, IP65, IP66 & NEMA 4X specifications

Have a 2D Drawing or 3D CAD Assembly Ready?

Upload your files for a confidential DFM review and comprehensive engineering quote within 24 hours.

Submit Files For Review
Engineering Capabilities

Strategic Engineering Advantages

SafeFaber partners directly with your product developers and sourcing teams to eliminate manufacturing roadblocks, decrease cycle times, and support structural reliability.

Deep Sheet Metal Process Expertise

Decades of hands-on fabrication experience across bending allowances, laser tolerances, structural welding, and automated surface treatment pipelines.

SafeFaber Standard

Cost Optimization & Value Engineering

Comprehensive DFM feedback reduces scrap rates, standardizes tooling profiles, and eliminates unnecessary secondary operations to minimize unit costs.

SafeFaber Standard

Fast DFM Turnaround

Rapid manufacturability analysis delivered within 24–48 hours, detailing bend relief clearances, hole-to-edge proximity, and structural suggestions.

SafeFaber Standard

Full-Process Technical Support

Direct engineer-to-engineer communication throughout your product lifecycle—from early concept modeling and tolerance stackup to production tooling.

SafeFaber Standard

Strict NDA & IP Protection

Complete confidentiality protocols, secure data storage, and non-disclosure governance protecting your proprietary designs and market advantage.

SafeFaber Standard

Precision Prototyping to Scale

Seamless bridge from single-unit functional prototypes to pilot runs and full-rate contract manufacturing with zero tooling transfer friction.

SafeFaber Standard
Sector Specialization

Industries We Support

Tailored sheet metal fabrication and structural engineering for mission-critical industrial applications worldwide.

Telecom & Server Racks

SafeFaber engineers high-density 19" and 23" server chassis, outdoor IP65 telecom cabinets, and thermal management ducting built to stringent telecom standards.

Sector Capability 01

Medical & Lab Enclosures

Precision-formed stainless steel instrument housings, diagnostic consoles, and hygienic cart frames with continuous welded seams and refined cosmetic finishes.

Sector Capability 02

Industrial Automation & Robotics

Rugged controller consoles, robot teach-pendant brackets, multi-axis machine frames, and protective guarding engineered for demanding factory environments.

Sector Capability 03

Energy & Power Distribution

Arc-resistant MCC enclosures, outdoor solar inverter cabinets, and modular battery energy storage system (BESS) racks with UL-ready structural engineering.

Sector Capability 04
Tolerance Capability

GD&T Symbols, Datums and Tolerances We Work To

Our engineers read the gd and t symbols on your drawing before we quote, so every datum scheme is agreed before the first sheet is cut. We run a tolerance stack up on multi-part assemblies and flag features, such as perpendicularity of a flange to a mounting face, that need a tighter process. Read our GD&T and inspection tolerances and our sheet metal design and tolerance guidelines for more detail.

SymbolWhat it controlsHow we verify it
FlatnessHow far a panel or mounting face may deviate from a perfect plane, within a zone of two parallel planes.Granite surface plate with height gauge, or CMM point scan across the face.
StraightnessHow straight an edge, flange line or axis must be along its length.CMM line scan, or straightedge with feeler gauge on long edges.
PerpendicularityThe 90° relationship of a flange, bend or hole axis to a datum plane.CMM measurement against datums A and B, or a right-angle gauge for production checks.
ConcentricityHow closely the centre points of a round feature sit on the datum axis.CMM derived median points, checked against the datum axis.
RunoutCombined form and axis wobble of a round feature when rotated about a datum axis.Dial indicator on V-blocks or a rotary fixture, or CMM scan.
True positionWhere holes, slots, studs and cut-outs may sit relative to the datums, in a diameter tolerance zone.CMM or optical measurement, plus functional pin gauges on a fixture.
Profile toleranceThe allowed 3D form or contour of a surface or line against the CAD model.CMM scanning or optical comparison against the CAD surface.

Interference, Slip and Press Fit Tolerances

We choose the fit class from what the joint must do. Press fits for pins and PEM hardware get interference, hinges and sliding panels get slip fits with clearance, and locating features sit in between. We confirm the choice with a tolerance stack up across the mating parts, allowing for bend deduction, coating thickness and material grade.

Inspection and Gauge Capability

Parts are measured on a calibrated CMM, backed by pin, thread and go/no-go gauges for repeat batches. A first article report lists the ballooned drawing, measured against nominal values for every dimension, GD&T results, material and coating certificates, and the inspection tool IDs with calibration dates, so you can approve production with evidence.

Engineering Clarifications

Frequently Asked Questions

Key technical details regarding CAD submissions, DFM revisions, project confidentiality, and mass production handover.

Get Started With SafeFaber

Ready to Optimize Your Sheet Metal Design?

Send us your CAD files today for an expert Design for Manufacturability (DFM) review and comprehensive cost estimate. SafeFaber delivers precision custom manufacturing solutions built around your exact engineering tolerances.
