LITHIUM-ION BATTERY CABINETS OEM
Engineered for global energy storage integrators. We engineer heavy-duty enclosures to NEMA 4X / IP66 specifications with advanced thermal barrier management, UL 9540A fire containment engineered design, and modular 19-inch battery rack structural frames.
Related reading: lithium-ion battery charging cabinets
Engineering & Compliance Standards
Product Overview

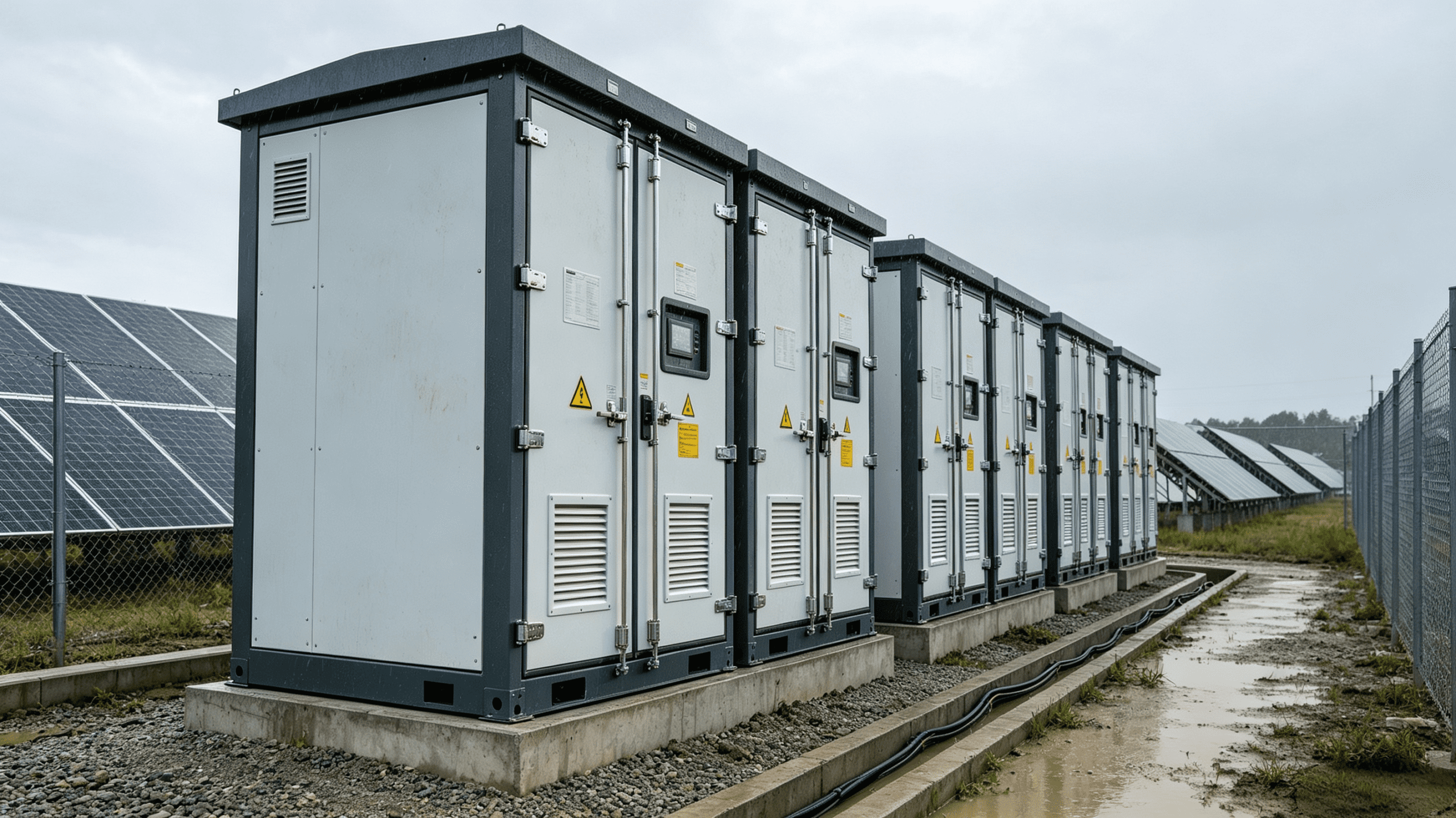

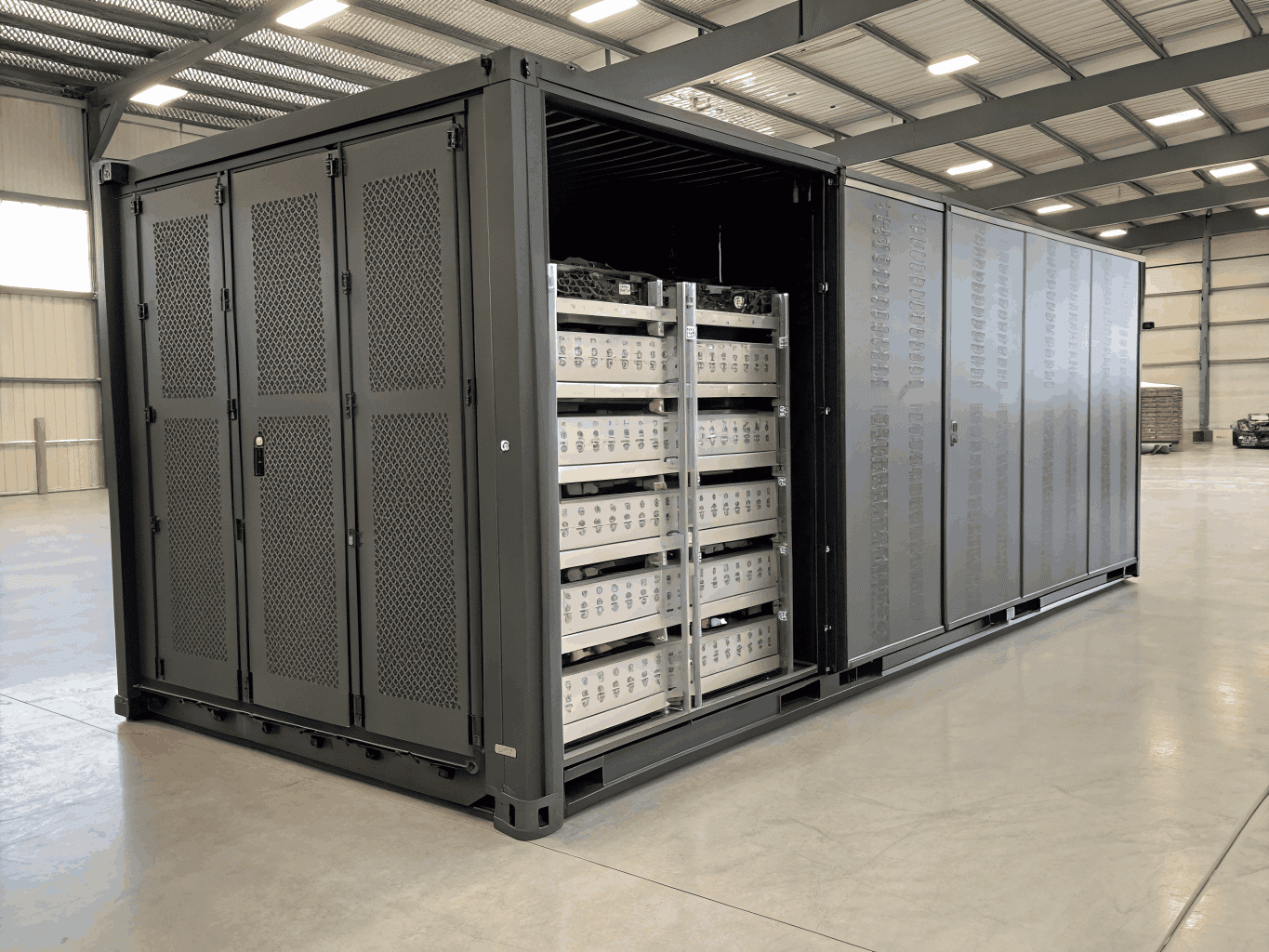

01 / 04Front-facing view: heavy-gauge galvanized steel and dual-wall insulated enclosure
PRECISION-ENGINEERED BATTERY ENCLOSURES
Designed to exceed rigorous industrial electrical safety, thermal isolation, and mechanical load thresholds for utility and commercial BESS applications.
Mechanical Specifications
HEAVY-DUTY STANDARDHeavy-gauge structural frame with CNC folded reinforced panels for maximum seismic and rigidity standards.
Seamless polyurethane gasket seal barrier engineered for severe outdoor wind-driven rain and dust ingress.
High-yield structural corner extrusions and reinforced tray guides validated for dense multi-tier battery racks.
Multi-stage zinc phosphate pre-treatment followed by high-durability thermoset polyester powder coating.
Low-impedance copper bonding system throughout doors, side skins, frame members, and cable entry points.
Engineered Pillars for Utility & Industrial Battery Storage
Our specialized battery energy storage enclosures are custom-fabricated from heavy-gauge structural steel and aluminum alloys, delivering high thermal uniformity, dense mechanical integration, and engineered multi-barrier containment for tier-1 battery cells.
Engineered manifold routing and optimized plenum baffling built per your thermal design specifications across full discharge cycles. Compatible with direct-to-cold-plate liquid loops and closed-loop forced-air HVAC units.
Related reading: preventing battery heat build-up

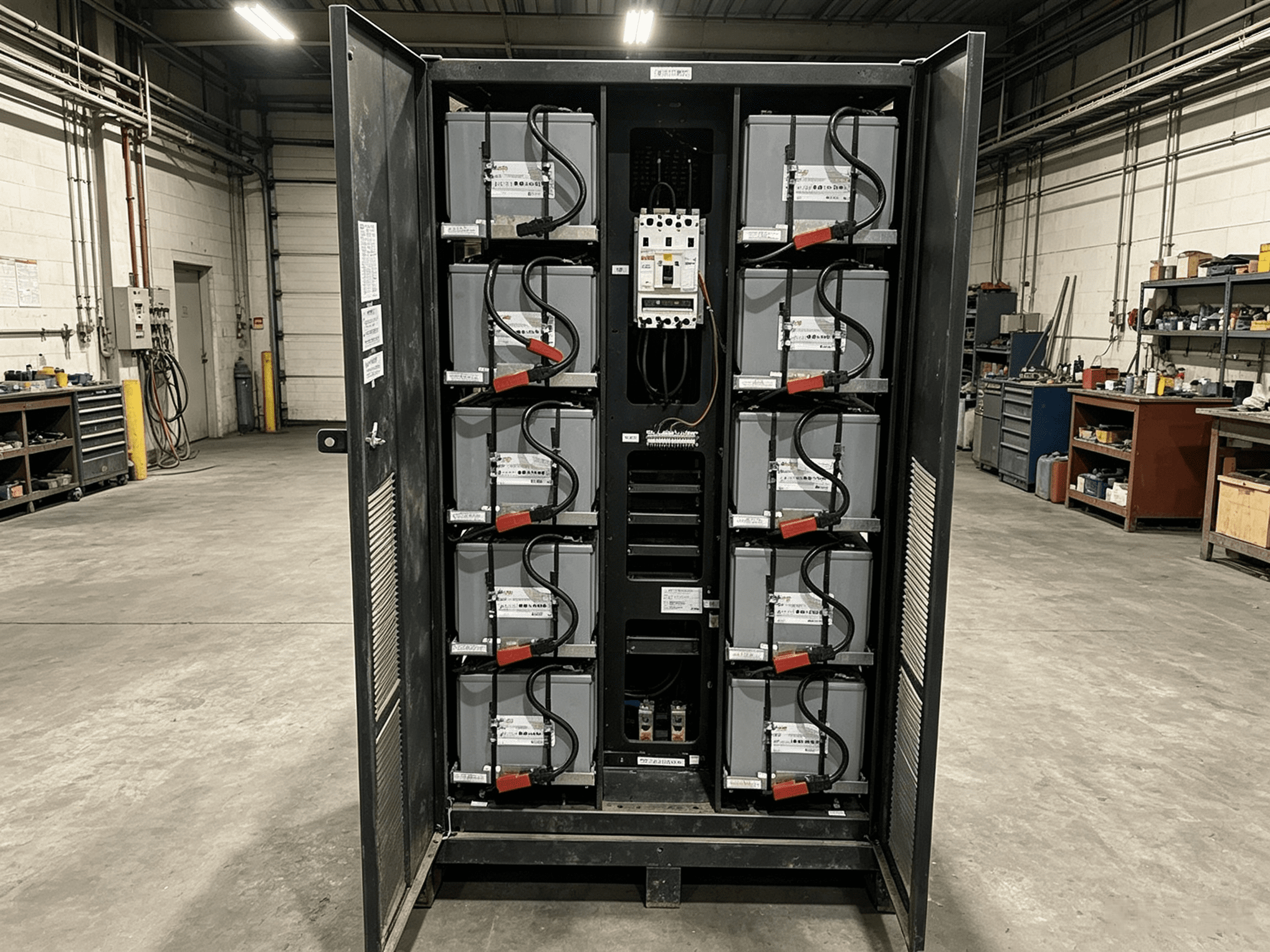

Precision-formed heavy-gauge steel framework featuring customizable 3U/4U/5U slide guides, reinforced busbar routing channels, and isolated low-voltage BMS wireways engineered for rapid field maintenance and module swaps.
Comprehensive multi-layer hazard containment engineered to NFPA 855 standards, including pre-engineered aerosol suppression nozzles, automated thermal disconnect triggers, and calibrated burst-disc deflagration relief panels.
Related reading: flammable storage compliance
Engineered For The Harshest Environments
From remote multi-megawatt desert solar installations to high-salinity coastal charging super-hubs, our precision sheet metal enclosures deliver uncompromising thermal control, structural rigidity, and fire containment.

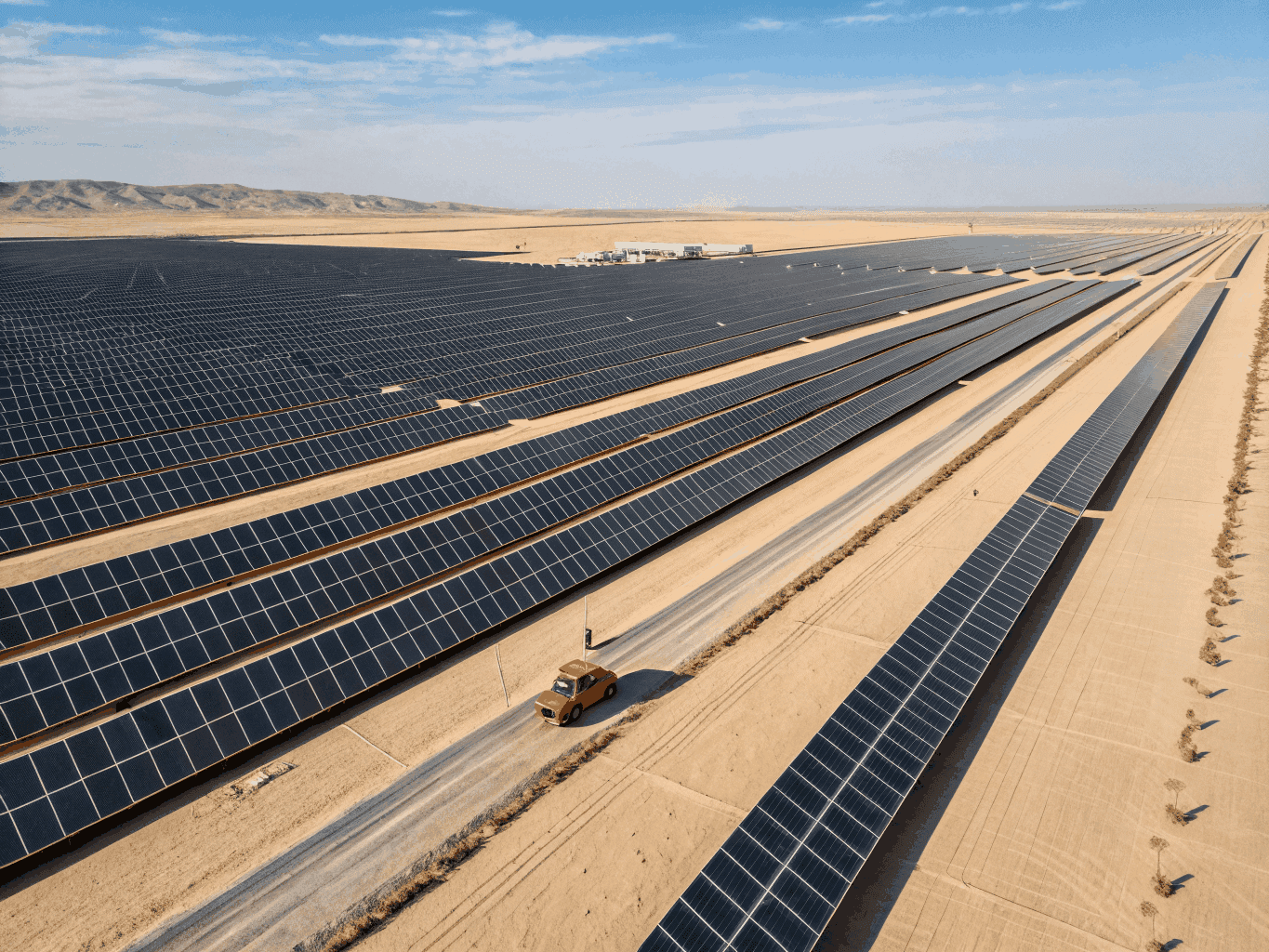

Utility-Scale Solar-Plus-Storage Park
High-capacity BESS enclosures designed to safeguard multi-rack lithium batteries in harsh high-irradiance desert zones.

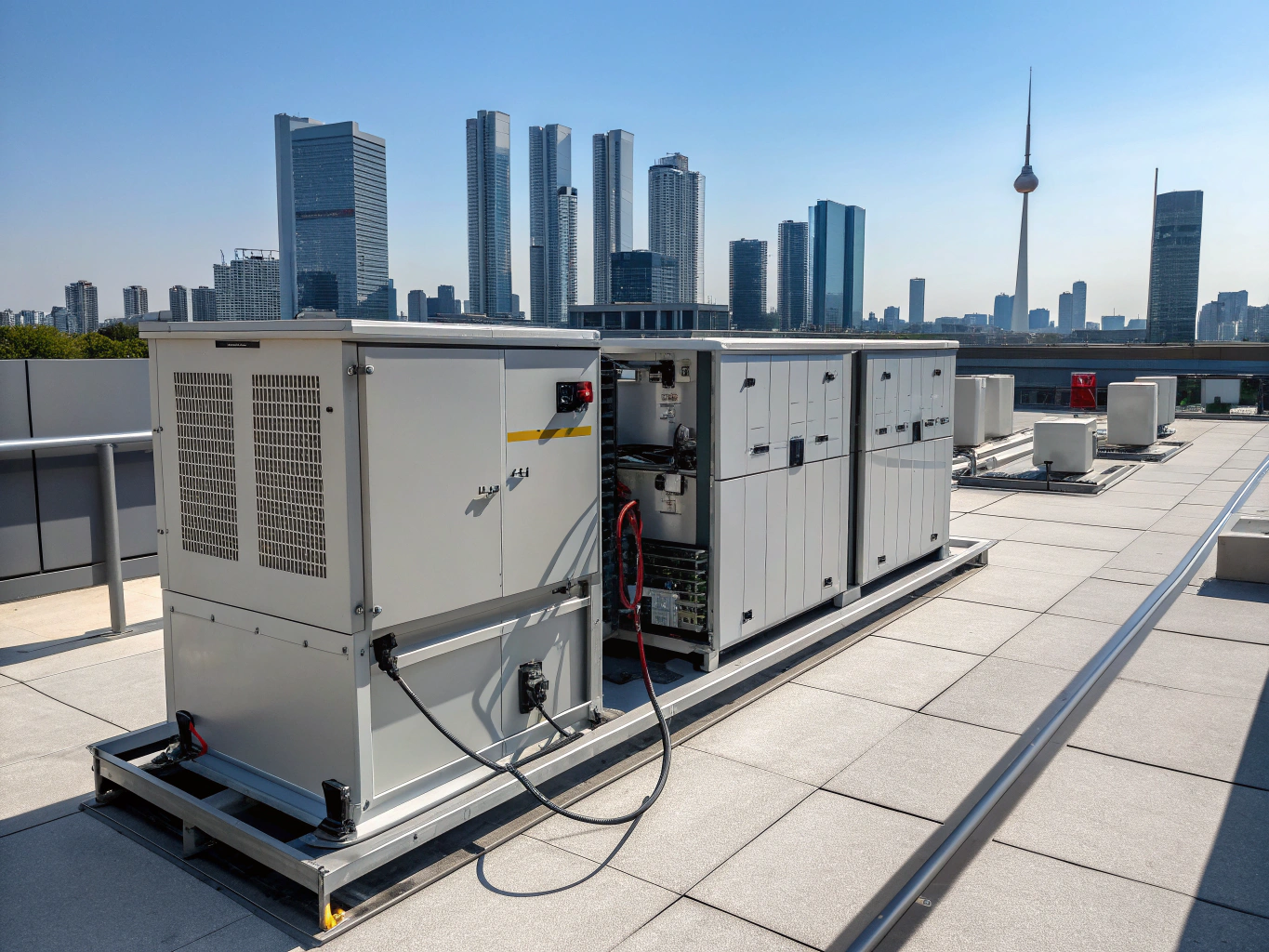

Commercial Rooftop Microgrid Enclosure
Weight-optimized modular battery cabinets engineered for high-density urban commercial rooftops.

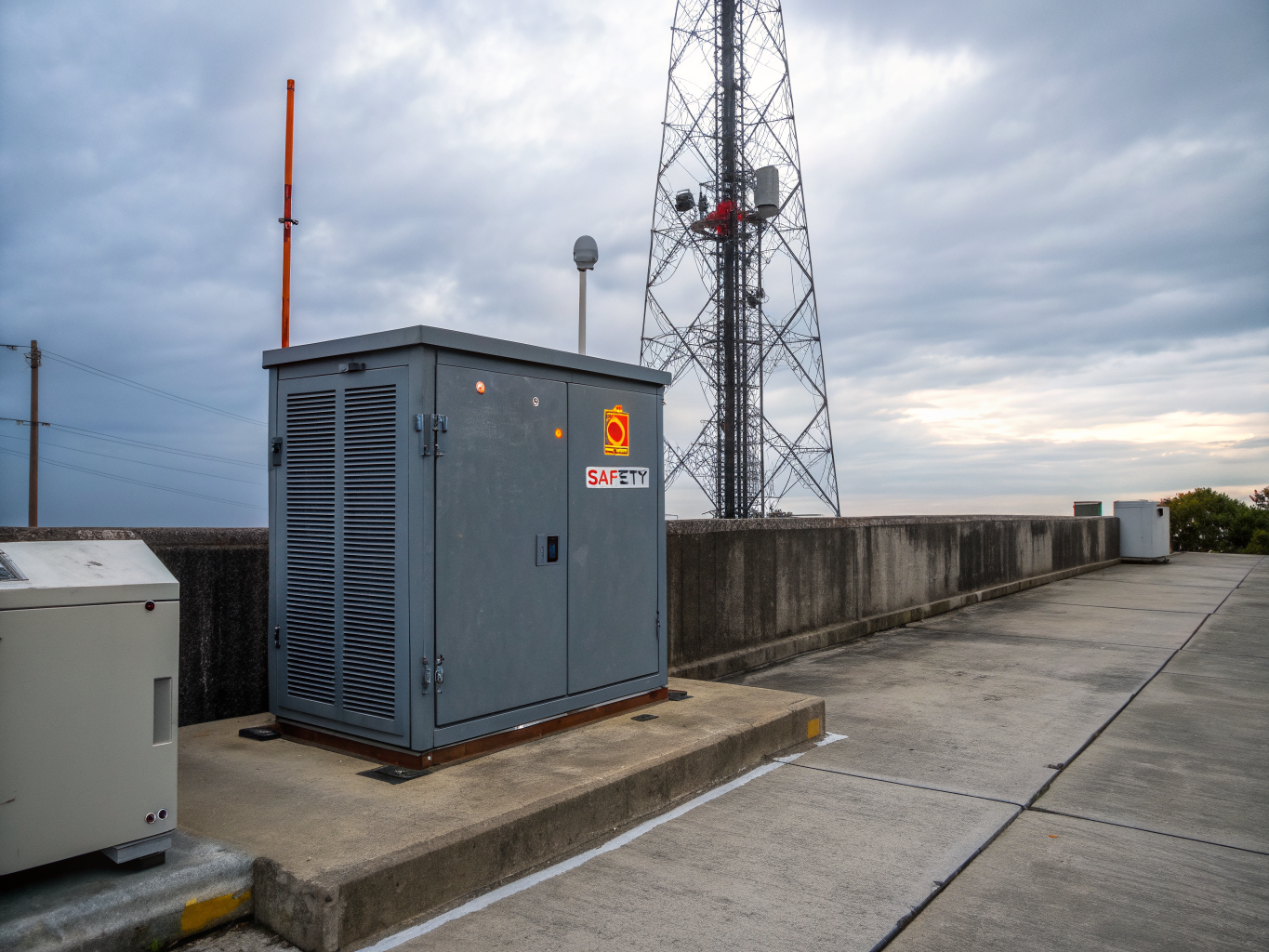

Telecom DC Fast-Backup Battery Banks
Ruggedized 48V/192V lithium bank enclosures for edge cellular towers and regional switching hubs.

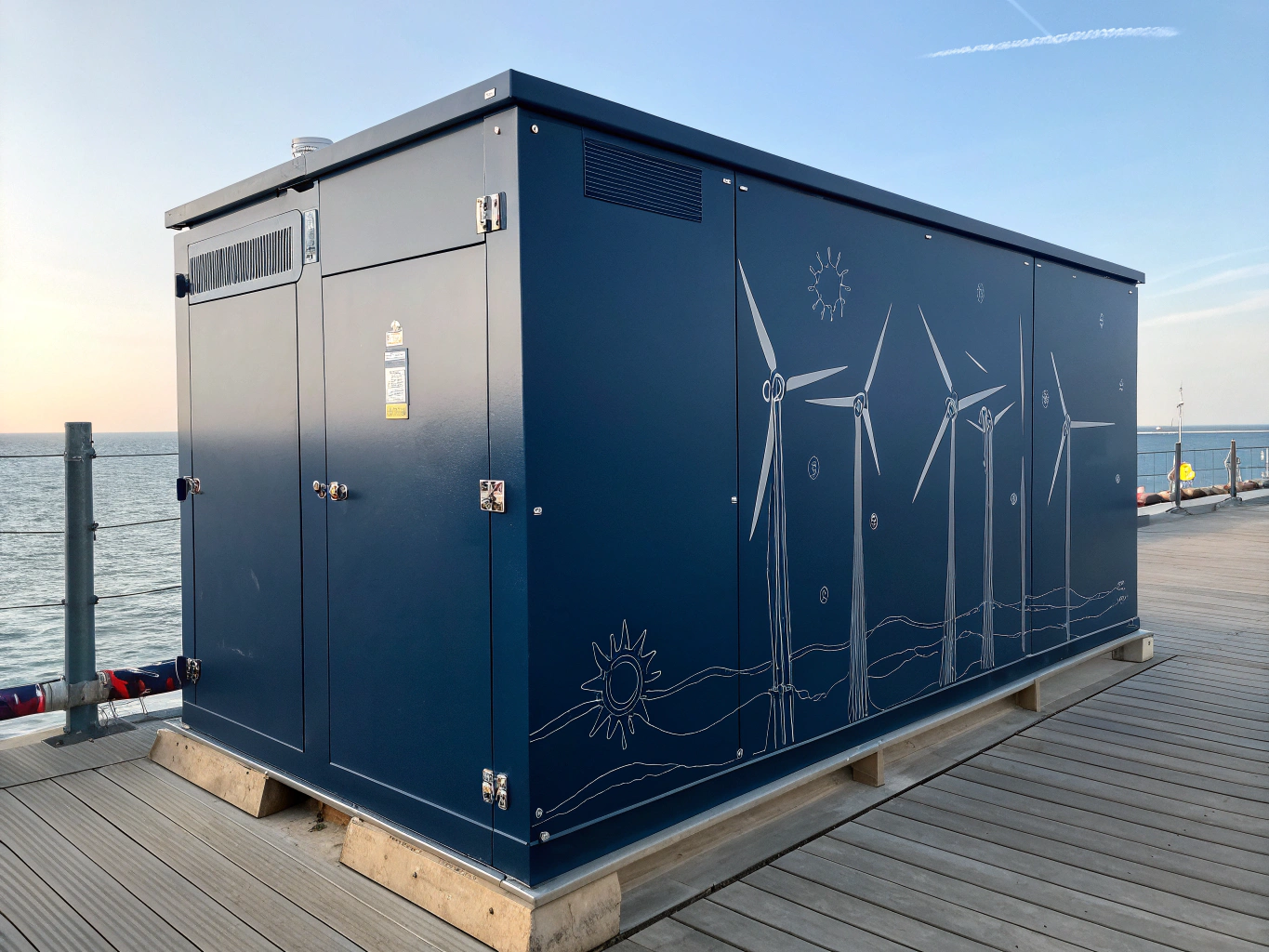

Coastal EV Supercharging Hub Battery Vaults
Ultra-resilient buffer energy cabinets supporting 350kW+ rapid vehicle chargers in corrosive sea-air environments.
Have Specific Battery Enclosure Specifications?
From NEMA 4X / IP66 engineered designs to integrated thermal runaway exhaust baffles, we fabricate to your exact drawings and mechanical tolerances.
Frequently Asked Technical Questions
Direct answers on battery rack and cabinet customisation, thermal management ducting, UL 9540A blast relief compliance for lithium-ion battery charging safety, and lead times for energy storage systems in solar or inverter applications.
Yes, our engineering team custom-tailors internal mounting rails, shelf depths, and structural stiffeners for battery racks and cabinets to your exact cell form factors (prismatic, pouch, or cylindrical modules). We engineer heavy-duty heavy-gauge steel slide rail systems and reinforced unistrut framing capable of supporting point loads exceeding 1,200 kg per tier with zero chassis deflection under dynamic seismic loading.
Key Technical Capabilities:
- Custom slide rail & telescopic heavy-duty drawer options
- Reinforced heavy-gauge unistrut & welded frame gussets
- Point load capacities engineered up to 1,500+ kg per bay
Need Custom Thermal Analysis?
Send your battery module specs, airflow requirements, or CAD files. Our senior mechanical and thermal simulation engineers provide DFM feedback within 24 hours.
We review STEP, IGES, SolidWorks, and DXF models under standard bilateral NDA protection.
CUSTOMIZATION & STRUCTURAL INTEGRATION
From thermal containment and IP-rated sealing to high-load seismic bracing, our engineering team custom-fabricates enclosure hardware configured to exact battery module geometries and OEM specifications.
Precision CNC Laser Profiling & Bending
High-precision fiber laser cutting and multi-axis CNC press braking for tight dimensional accuracy across heavy-gauge steel and aluminum panels.
Heavy-Duty Dual Compression Cam-Locking
Multi-point perimeter compression latching mechanisms engineered to withstand severe thermal expansion, pressure differentials, and vibration.
Continuous Polyurethane Foam Gasketing
Automated robotic foam-in-place gasketing delivering high ingress protection against driving rain, industrial dust, and corrosive moisture.
High-Amp Busbar & Isolation Plenums
Engineered internal segregation barriers, custom copper busbar channels, and flame-retardant isolation plenums to prevent arc propagation.
Seismic Zone 4 Base Plinth & Crane Rigging
Reinforced structural steel base frames with integrated crane lifting eyelets, heavy-duty anchor bolt patterns, and fork pockets for safe transit.
Custom BMS/Inverter/Gas Detection Mounting Brackets
Tailored internal DIN rails, sub-plates, and bracketry configured for battery management systems, rapid exhaust vents, and gas sensing units.
Have Custom Mechanical or Ingress Requirements?
Submit your STEP, DXF, or CAD specifications for a comprehensive design-for-manufacturability and cost-optimization review.
STRICT QUALITY CONTROL FOR SAFETY-CRITICAL PRODUCTS
Our custom sheet metal contract manufacturing facility combines automated precision machinery with multi-tier quality gates, supporting consistently high-quality outputs for global OEMs, utility-scale BESS integrators, and industrial brands.
Compliance & Certification Matrix
Thermal Runaway Fire Propagation Test Standard
Batteries for Stationary & ESS Applications
Standard for the Installation of Stationary ESS
Ingress & Extreme Corrosion Resistance
Secondary Lithium Cells & Industrial Battery Safety
Standards-Based Manufacturing Quality Management System
Advanced quality management system
Strict adherence to international standards ensuring consistent production quality and process control across all manufacturing phases.
Full incoming material inspection & traceability
Comprehensive raw material verification, chemical composition checks, and complete heat-lot traceability for global safety compliance.
Dimensional accuracy inspection for every production batch
Advanced laser measurement and precision gauging ensuring tight tolerance compliance (+/- 0.05mm) on every custom batch.
Structural strength & protection performance verification
Rigorous load testing, mechanical strain analysis, and IP-rating enclosure sealing tests tailored for heavy industrial use.
Pre-delivery assembly & function test for each cabinet
Complete mock assembly, door seal check, hardware alignment, and functional testing before global dispatch.
Every production batch is backed by comprehensive technical documentation, including Material Test Reports (MTRs), Certificates of Conformance (CoC), and custom Factory Acceptance Test (FAT) reports.
Our quality architecture is engineered to support compliance with European and North American industrial safety regulations for heavy-duty enclosures and structural battery containment systems.
Rigorous In-House & 3rd-Party Testing AVAILABLE
100% Helium Leak Testing
Every welded containment chamber and gas-tight compartment undergoes full automated helium mass spectrometer leak detection.
ASTM B117 Salt Spray 1,000hrs
Multi-stage zinc-phosphate pretreatment and C5-M rated powder coatings verified under continuous accelerated salt fog conditions.
Telcordia GR-63-CORE Seismic Zone 4
Multi-axis full-spectrum physical shake table testing verifying structural frame rigidity, welded joints, and internal busbar integrity.
STANDARDIZED PRODUCTION PROCESS
Every battery cabinet and industrial enclosure goes through a rigorous in-house 8-stage production workflow, with dedicated QC verification at each step to ensure uncompromised structural reliability.
DFM & Thermal Simulation
Comprehensive CAD analysis, CFD thermal airflow simulation, and sheet metal tolerance stack-up modeling to optimize manufacturability and heat dissipation.
CNC Laser Profiling & Turret Punching
High-speed multi-kilowatt fiber laser cutting and CNC turret punching for ultra-clean louvers, precision cutouts, and tight-tolerance sheet metal blanks.
CNC Bending
Multi-axis CNC press brake forming ensuring repeatable angular precision and structural rigidity across door panels, corner pillars, and module brackets.
Robotic MIG/TIG Welding
Automated robotic cell welding and skilled manual TIG/MIG welding delivering continuous hermetic seals, structural strength, and zero thermal distortion.
Chemical Zinc Phosphating
Multi-stage automated immersion degreasing and zinc phosphating pre-treatment creating superior corrosion resistance and enhanced paint bonding.
Powder Coating
Automated electrostatic powder coating line applying heavy-duty thermoset outdoor polyester coatings engineered for harsh C5-M industrial environments.
Automated Gasket Dispensing & Rail Assembly
CNC continuous polyurethane foam gasket dispensing ensuring engineered IP66 sealing per specification, followed by precision mounting of 19-inch rails and busbars.
FAT & Ingress Verification
Rigorous factory acceptance testing, CMM coordinate dimensional validation, coating thickness checks, earth bonding, and pressurized water ingress testing.
Need Custom Fabrication & DFM Consulting?
Send us your 2D/3D CAD drawings to receive a comprehensive DFM analysis, tolerance optimization review, and rapid production quotation.
Ready to Configure Your Custom Battery Cabinet?
Send your CAD files or enclosure specifications today. Our engineering team delivers a comprehensive DFM analysis within 24 hours, fully configured 3D STEP models within 48 hours, and 100% CMM dimensional verification before shipment.
15-Day Prototype Turnaround
Rapid engineering sample fabrication with rapid tooling & CNC punch press lines.
ISO 9001 Standards-Based Quality
100% CMM inspection, strict tolerance validation, and full QA compliance reports.
NDA & IP Protection
Strict intellectual property protection and signed non-disclosure agreements prior to CAD exchange.
