Industrial Electrical Control Cabinet
Custom enclosures engineered and tested per your specification requirements, engineering drawings, and applicable standards. Built specifically for demanding industrial automation, power distribution, and harsh operational conditions.
Precision CNC cutouts with standard DIN-rail mounting channels and IP-rated door seals.
Technical Architecture
Electrical Control Cabinet Specifications
Precision fabricated sheet metal enclosures built to global industrial standards. Fully customizable dimensions, cutouts, and environmental protections.
Standard:Seamless polyurethane gasketing, tested to IEC 60529 standards.
Standard:Corrosion resistance tested against ASTM B117 salt spray standards.
Standard:Pre-punched bonding studs and dedicated copper earthing busbars.
Standard:Multi-depth subpanels with 25mm modular pitch positioning.
Standard:Tin or silver plating options with fiberglass reinforced supports.
Standard:All-round contact zones on doors and removable structural panels.
Standard:Form 2b to Form 4b internal separation architecture available.
Standard:Optimized CFD-validated internal airflow channel geometry.
Standard:Heavy-duty lifting eye bolt points rated up to 1200 kg.
Need Custom Sheet Metal Dimensions or OEM CAD Layouts?
Our engineering team develops DFM-optimized enclosure drawings and complete electrical mounting subpanes.
Control Cabinet & Enclosure Benefits
Precision-engineered sheet metal electrical enclosures manufactured to strict industrial standards for maximum reliability, safety, and operational longevity.
Need custom electrical enclosure specifications?
Our engineering team reviews CAD/STEP drawings and provides DFM feedback within 24 hours.
Custom Control Cabinets Built for Demanding Environments

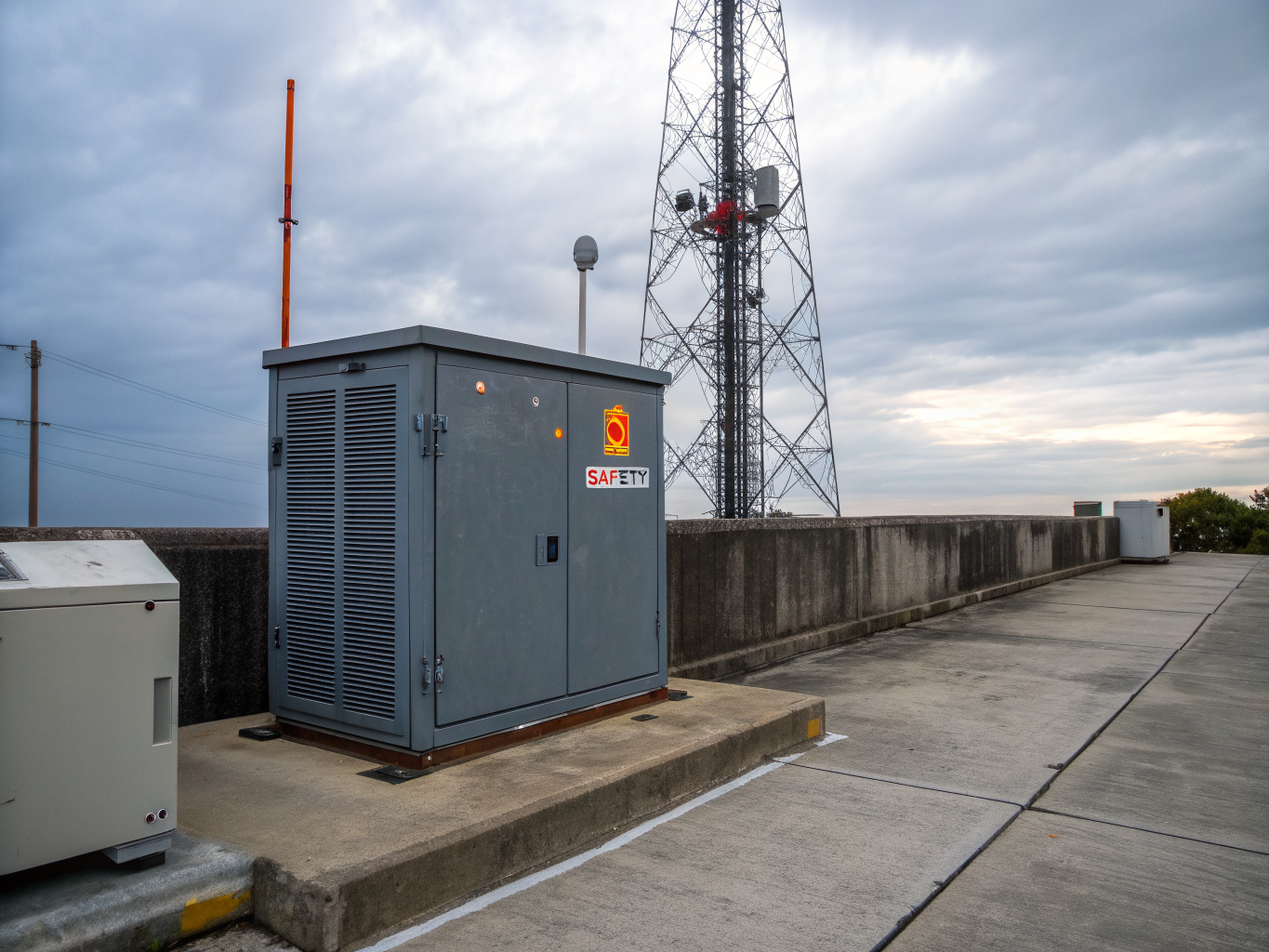

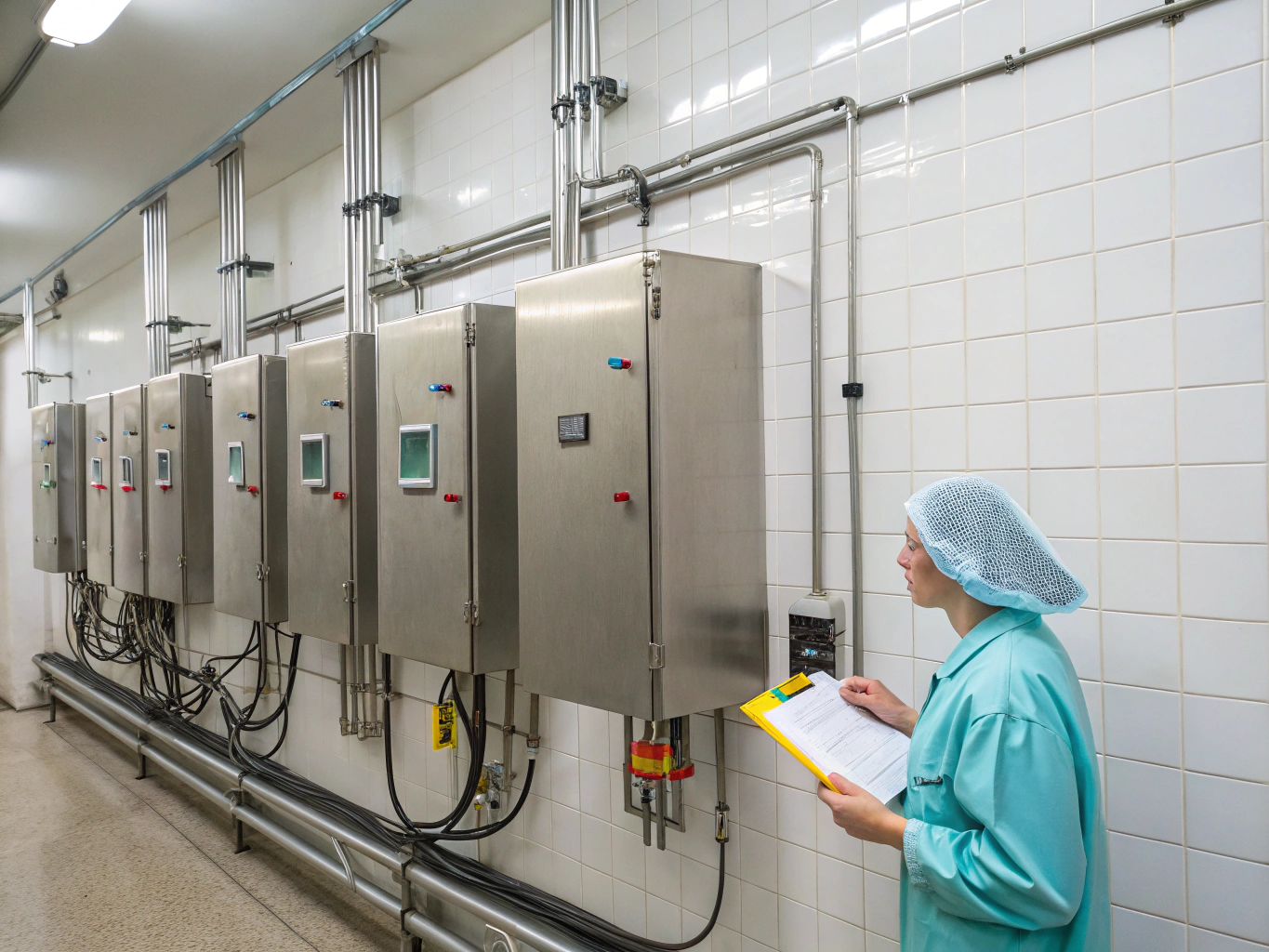

From sanitary washdown plants to rugged open-pit mining operations, our precision-fabricated sheet metal enclosures deliver dependable protection, thermal regulation, and structural safety.
Custom OEM / ODM Enclosure Requirements?
Our engineering team provides full turnkey sheet metal fabrication, laser cutting, CNC bending, and powder coating tailored to your exact CAD specifications.
Frequently Asked Questions
Technical guidance on certifications, environmental ratings, modular expansions, and custom contract manufacturing specifications.
UL 508A is the standard for the construction of Industrial Control Panels. It requires that enclosures, component selection, wiring methods, short-circuit current ratings (SCCR), and grounding meet stringent North American safety codes and electrical regulations for industrial environments.
Need custom panel specifications or CAD review?
Our engineering team provides DFM reviews and detailed manufacturing estimates within 24 hours.
Custom Metal Manufacturing
Related Enclosures & Cabinets

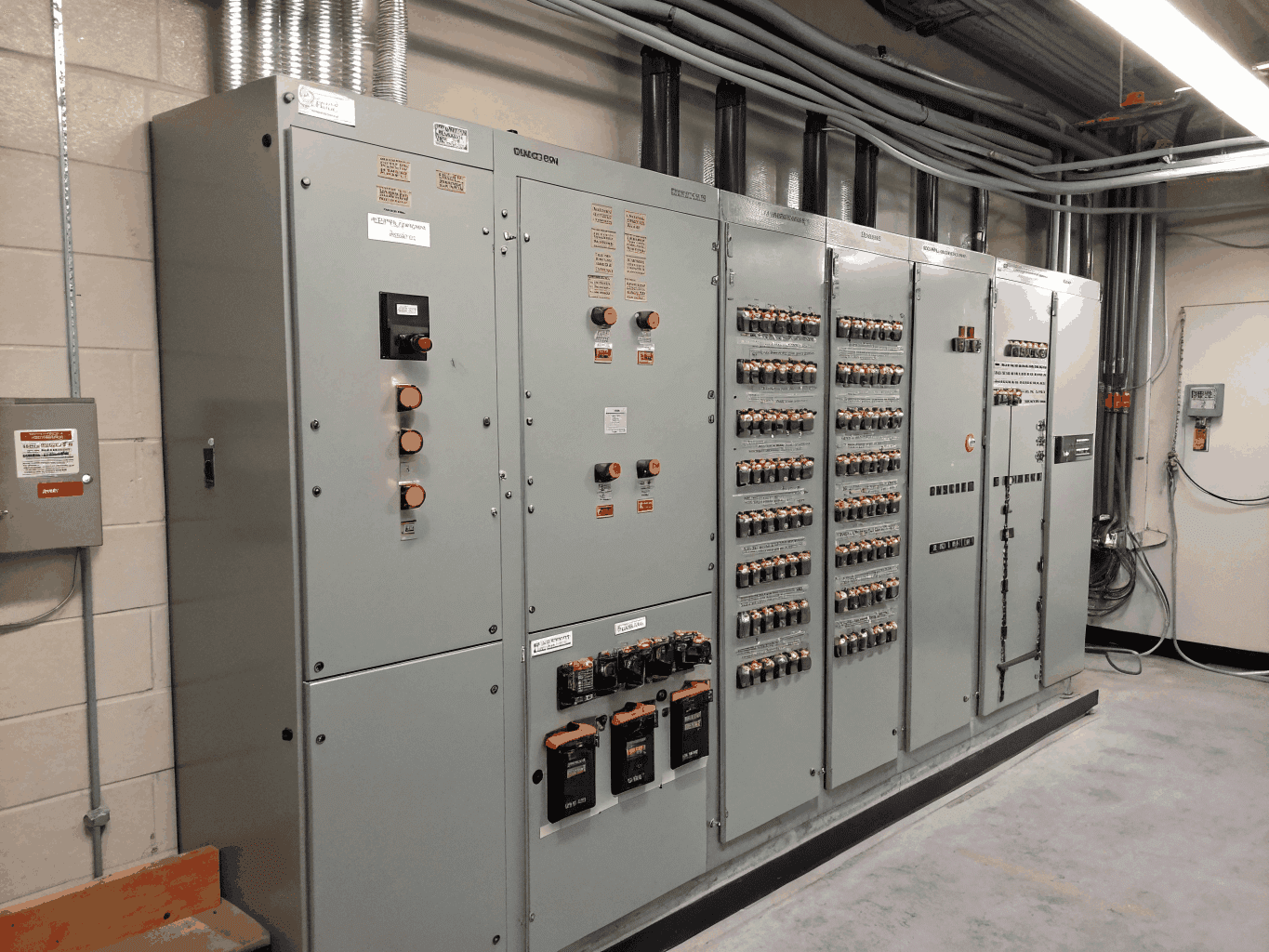

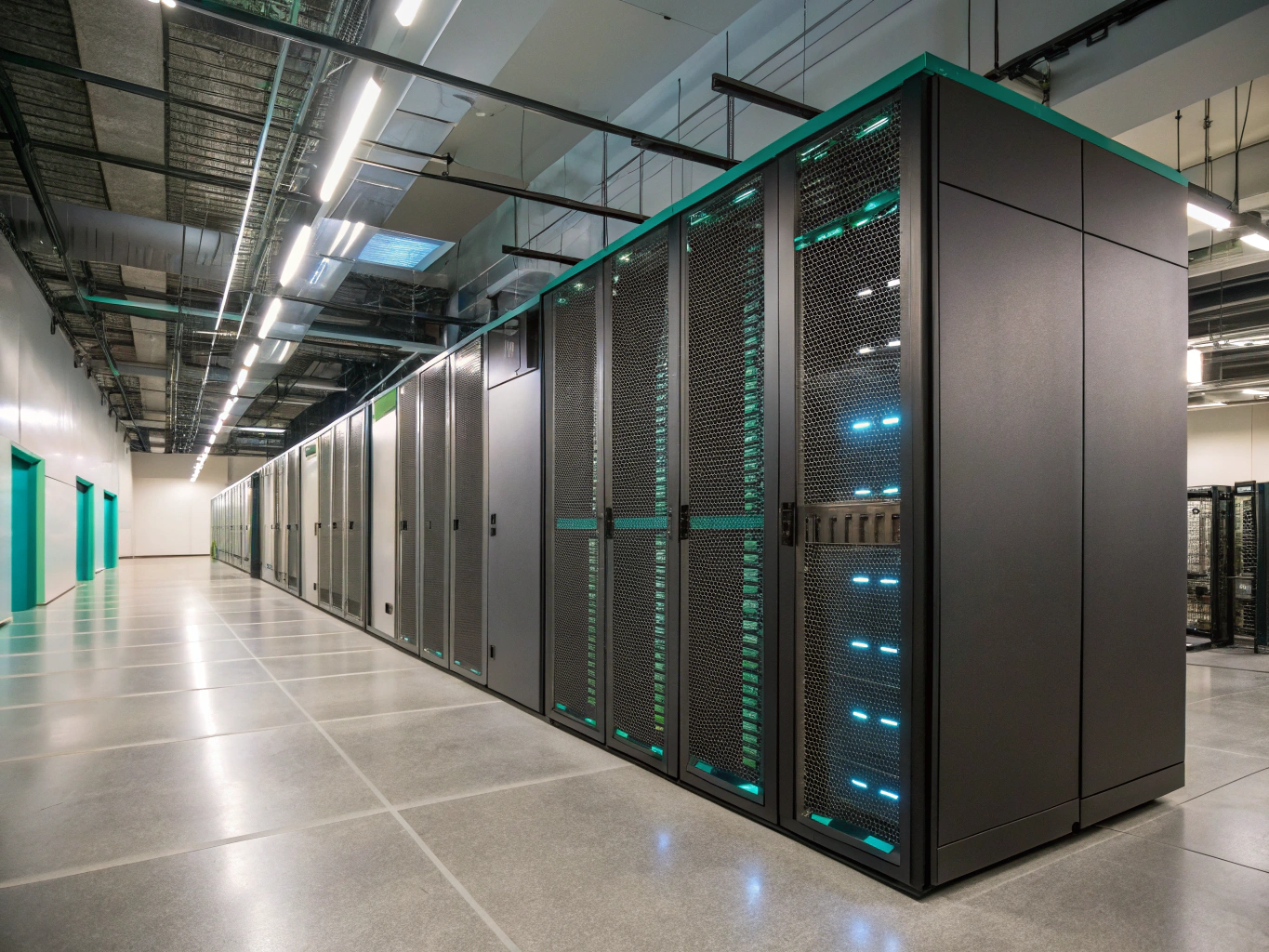

Explore our precision-fabricated industrial enclosures, including control panel enclosures and MCC motor control centers engineered with copper or aluminum busbars. Built for rigorous IP and NEMA ratings and severe operational demands alongside custom power distribution cabinets.
Industry Certifications & Standards
Every electrical cabinet, enclosure, and custom sheet metal assembly is engineered to satisfy stringent global regulatory frameworks, environmental sealing ratings, and structural safety codes.
Need custom testing or OEM third-party witness inspection?
We accommodate specialized IP verification, mil-spec coatings, dielectric withstand tests, and customized CMM dimensional inspection logs.
Customization & Configuration Options
Configure every aspect of your custom industrial electrical control cabinet. From precise dimensional tolerances and ingress protection to custom power distribution busbars and terminal labeling.
Enclosure Size
Custom width, height, and depth tolerances to millimetric specifications for floor-standing or wall-mount enclosures.
IP Rating Selection
Engineered seam welds, continuous foamed-in-place PU polyurethane gaskets, and rain hoods for severe industrial environments.

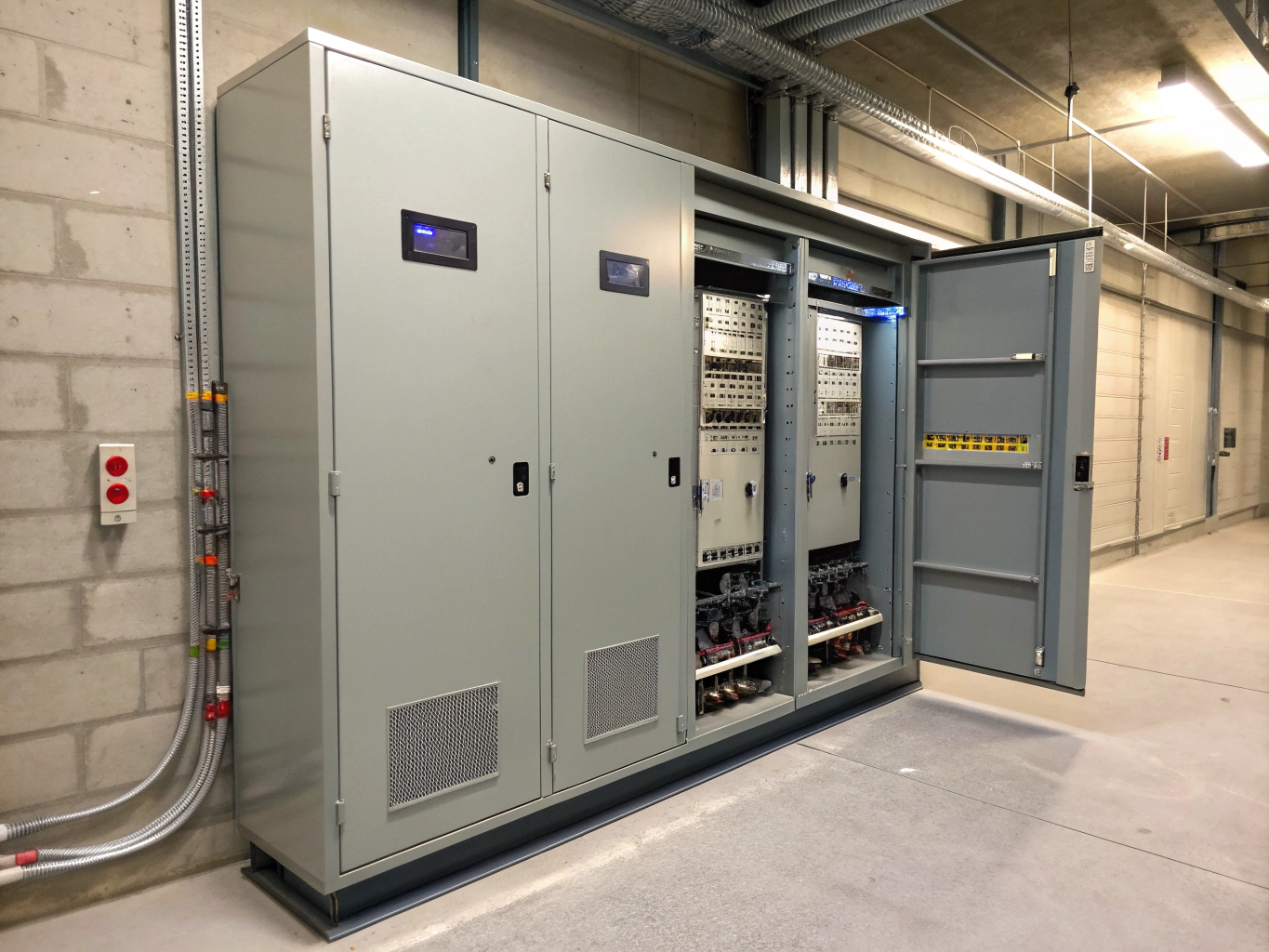

DIN Rail Capacity
Perforated zinc-plated steel or aluminum TS-35 mounting channels with pre-punched grid spacing for rapid PLC & relay assembly.
Busbar Configuration

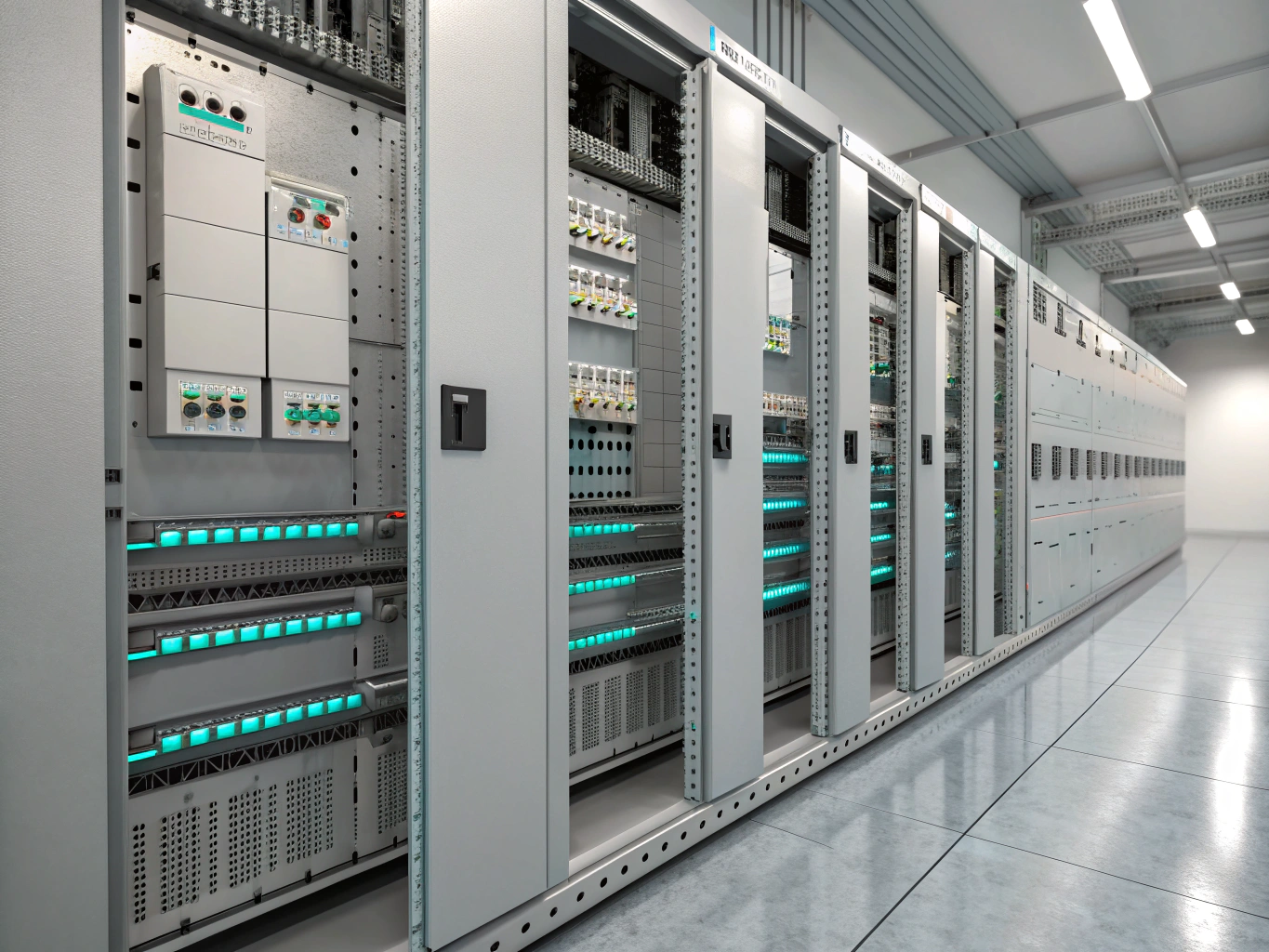

Electrolytic solid copper or tin-plated busbars rated for heavy-duty short circuit withstand with reinforced standoffs. Related reading: copper vs aluminum busbars
Door Style & Locking
Single or dual leaf configurations with multi-point rod latching mechanisms, internal document pockets, and viewing windows.
Internal Cooling & Thermal
Engineered louvers and forced convection units designed to dissipate heat loads from power electronics and high-density drives.
Cable Entry & Gland Plates
Removable bottom and side gland plates with customizable conduit cutouts, modular brush strips, or pre-punched punchouts.
Paint Finish & Coating
Electrostatic thermoset powder coating applied over iron-phosphate pretreatment for high scratch and UV resistance.
Labeling & Silk Screening
Direct-to-metal UV ink silk screening, laser-etched stainless nameplates, and internal pre-printed one-line schematic diagrams. Related reading: silk screening and panel labels
Require bespoke cutouts or unique mechanical configurations?
Upload your 3D CAD, STEP files, or electrical schematic schematics. Our engineering team provides DFM reviews and detailed manufacturing quotes within 24 hours.
End-to-End Manufacturing Workflow
From initial CAD schematics through fabrication, electrical wiring, and dielectric testing, every cabinet follows a standards-based five-stage production methodology.
- Customer spec review & DFM analysis
- 3D CAD proof & sheet metal unfolding
- Tolerance verification & thermal calculation
- High-precision laser-cut panels
- CNC press brake bending & welded steel frame
- Corrosion-resistant powder coat application
- DIN rail mounting & busbar installation
- Terminal block routing & harness wiring

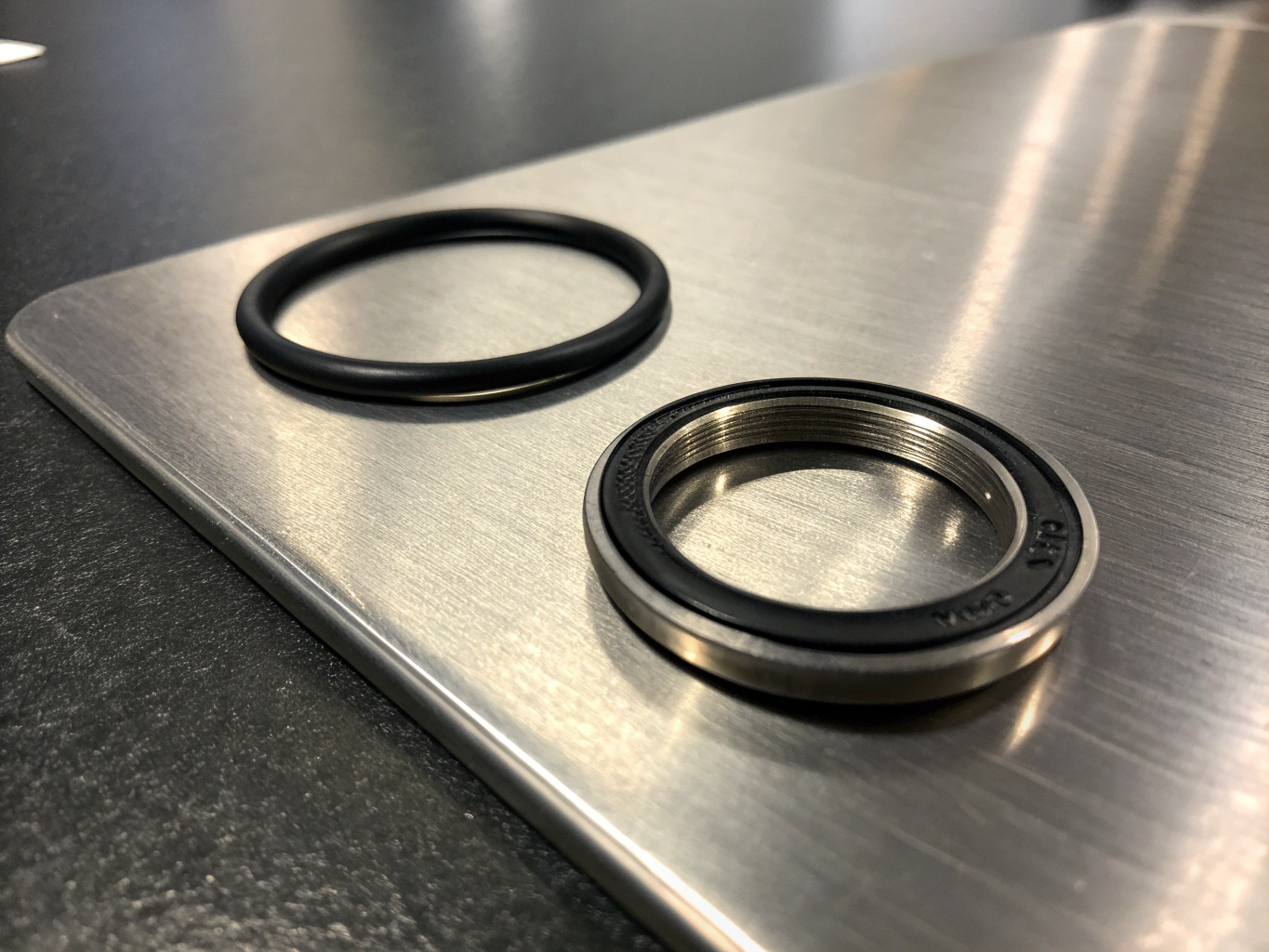

- EMC shielding installation & gasket sealing
- HIPOT dielectric & insulation resistance test
- Thermal cycling & environmental validation
- Functional load test under simulated duty
- Final electrical test & safety checklist sign-off
- IP-rating water & dust ingress verification
- Heavy-duty export crating & global dispatch
Standards-Based Quality & 100% Factory Inspection
All enclosures undergo comprehensive HIPOT dielectric testing, ground continuity checks, and waterproof verification prior to shipment.
Ready to Specify Your Electrical Control Cabinet?
Work directly with our precision fabrication engineers. From initial CAD review, custom laser profiling, and CNC bending to standards-based ingress protection and surface finishing, we help ensure your enclosures meet exact technical specs.
