ENGINEERED SERVER RACK CABINETS
OEM custom-fabricated from high-grade SPCC cold-rolled steel for hyperscale data centers, colocation facilities, and enterprise edge rooms. Engineered with precision thermodynamic airflow channeling and certified static load ratings up to 3,300 lbs (1,500 kg).
Engineering & Compliance Standards

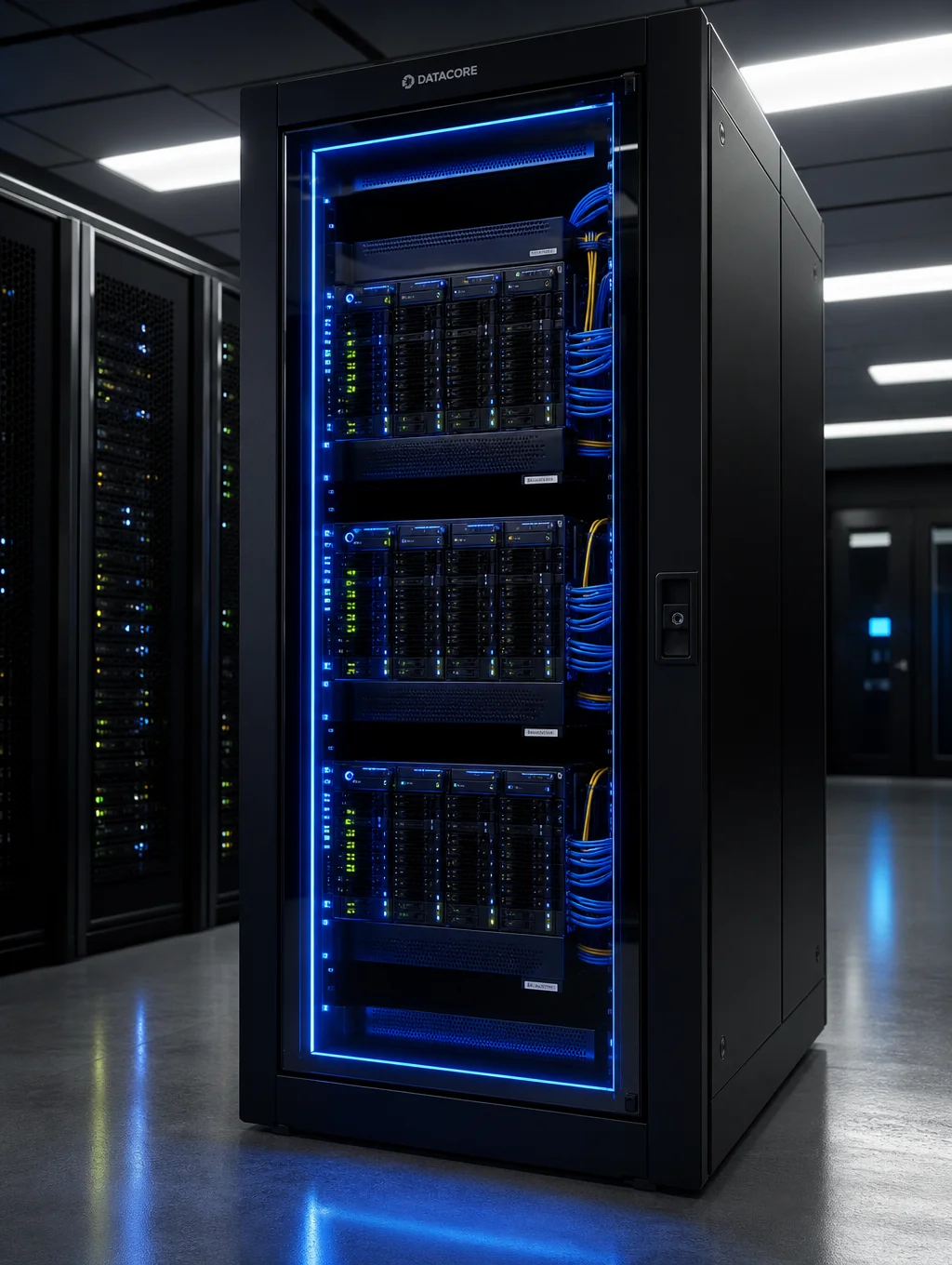

Isometric Overview
01 / 04Heavy-gauge SPCC cold-rolled steel frame with high-efficiency 80% hex perforation doors
STRUCTURAL CAPACITIES & SYSTEM SPECS

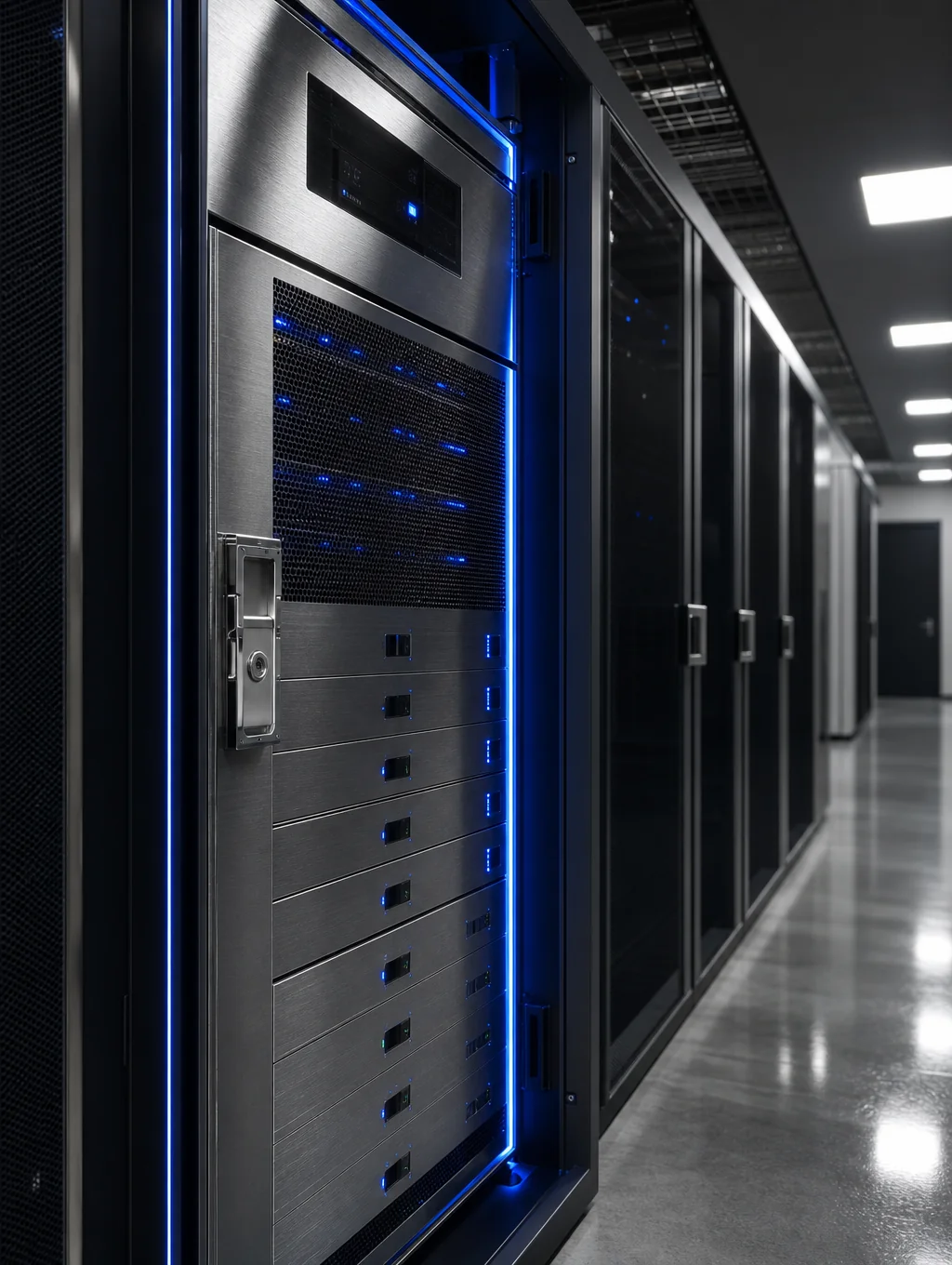

Contract-manufactured 42U/48U server enclosures precision-machined from cold-rolled structural steel, certified for high-density compute infrastructure.
Enclosure Ratings & Build Specs
DATA CENTER GRADEHeavy-duty multi-bend robotic welded roll-formed steel corner posts engineered for seismic Zone 4 high-density compute loads.
Adjustable depth 19" Z-rail channels with precision M6 square cage-nut holes and silk-screened dual-sided U-markings.

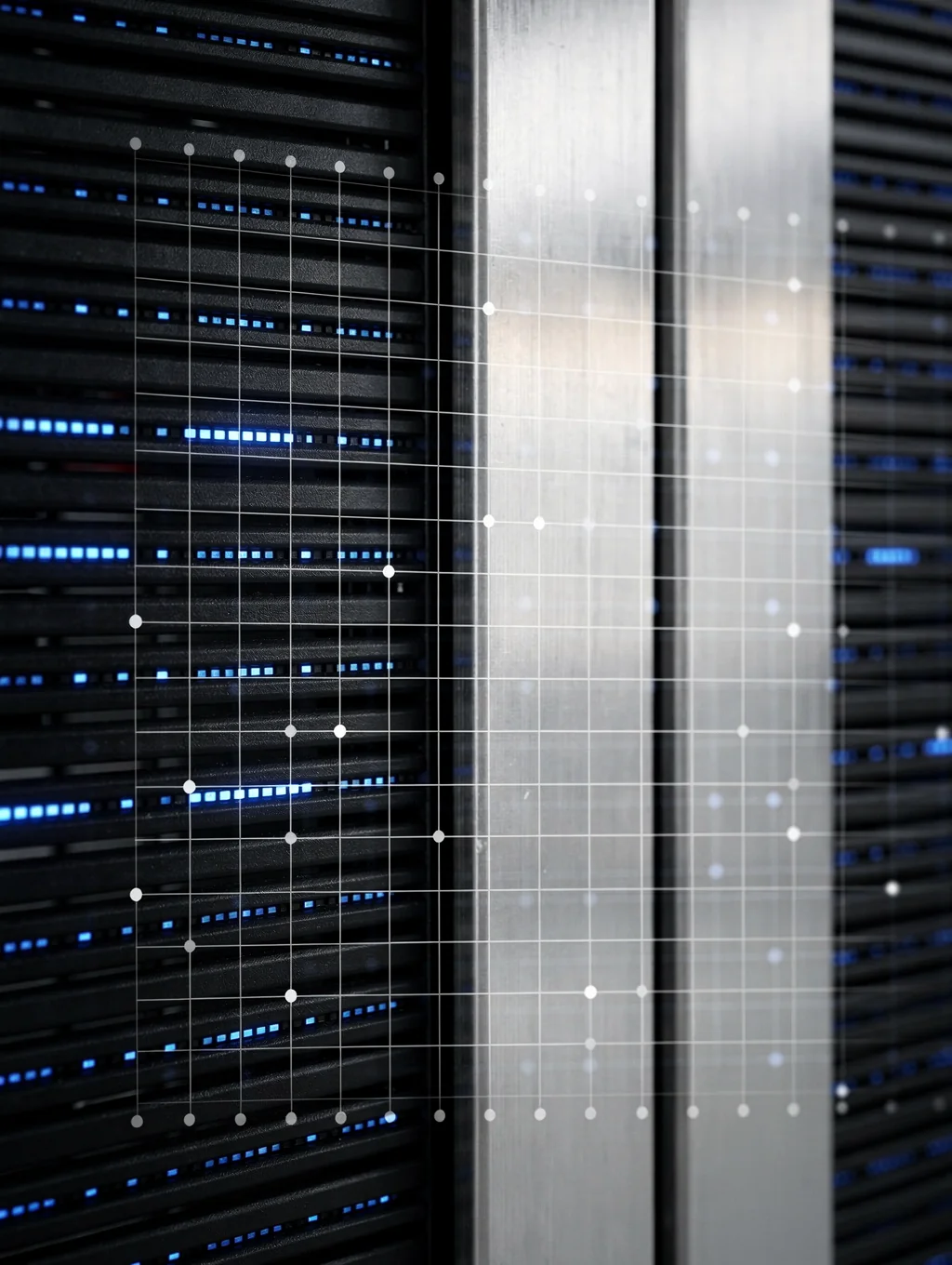

Micro-hexagonal perforation contour maximizing linear front-to-back volumetric airflow across dense blade servers.
High-density nylon filament seal baffles preventing thermal leakage while organizing overhead and subfloor copper/fiber trunks.
Full-height solid electrolytic copper earthing busbar with dedicated M6 grounding studs on all removable structural panels.
Engineered Pillars for High-Density Server Enclosures
Our specialized sheet metal engineering team designs and manufactures high-performance server rack cabinets, custom network frames, and edge computing enclosures built to withstand heavy payloads and demanding data center thermal loads.
Engineered high-flow perforation patterns, cold/hot aisle containment baffles, and dedicated fan-tray plenums prevent hotspots across ultra-dense compute nodes.
Fabricated from heavy-gauge cold-rolled steel and extruded multi-bend uprights, engineered to safely support maximum static and dynamic equipment payloads without deflection.
Modular full-height cable managers, segregated power and data wireways, and versatile zero-U toolless mounting channels facilitate zero-restriction airflow and swift servicing.
Proven Data Center & Rack Deployments
From hyper-scale hyperscale containment rows to mission-critical AI compute clusters, our custom fabricated server enclosures deliver strict airflow control, maximum structural payload, and rapid on-site assembly.

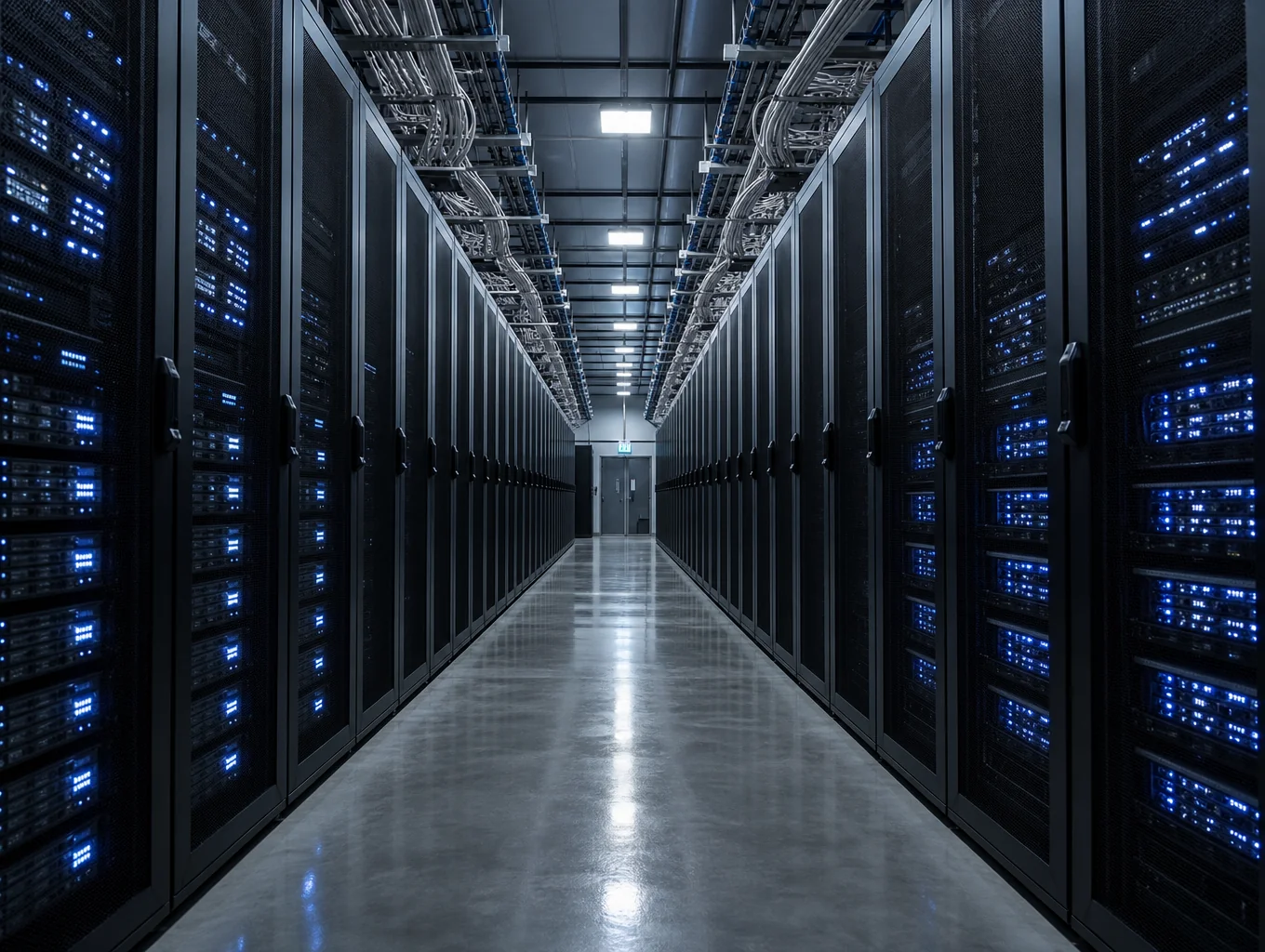

Hyper-Scale Colocation Facility
Modular 42U-52U server rack enclosures engineered for high-density compute, seamless hot/cold aisle containment, and rapid multi-bay deployment across large data halls.

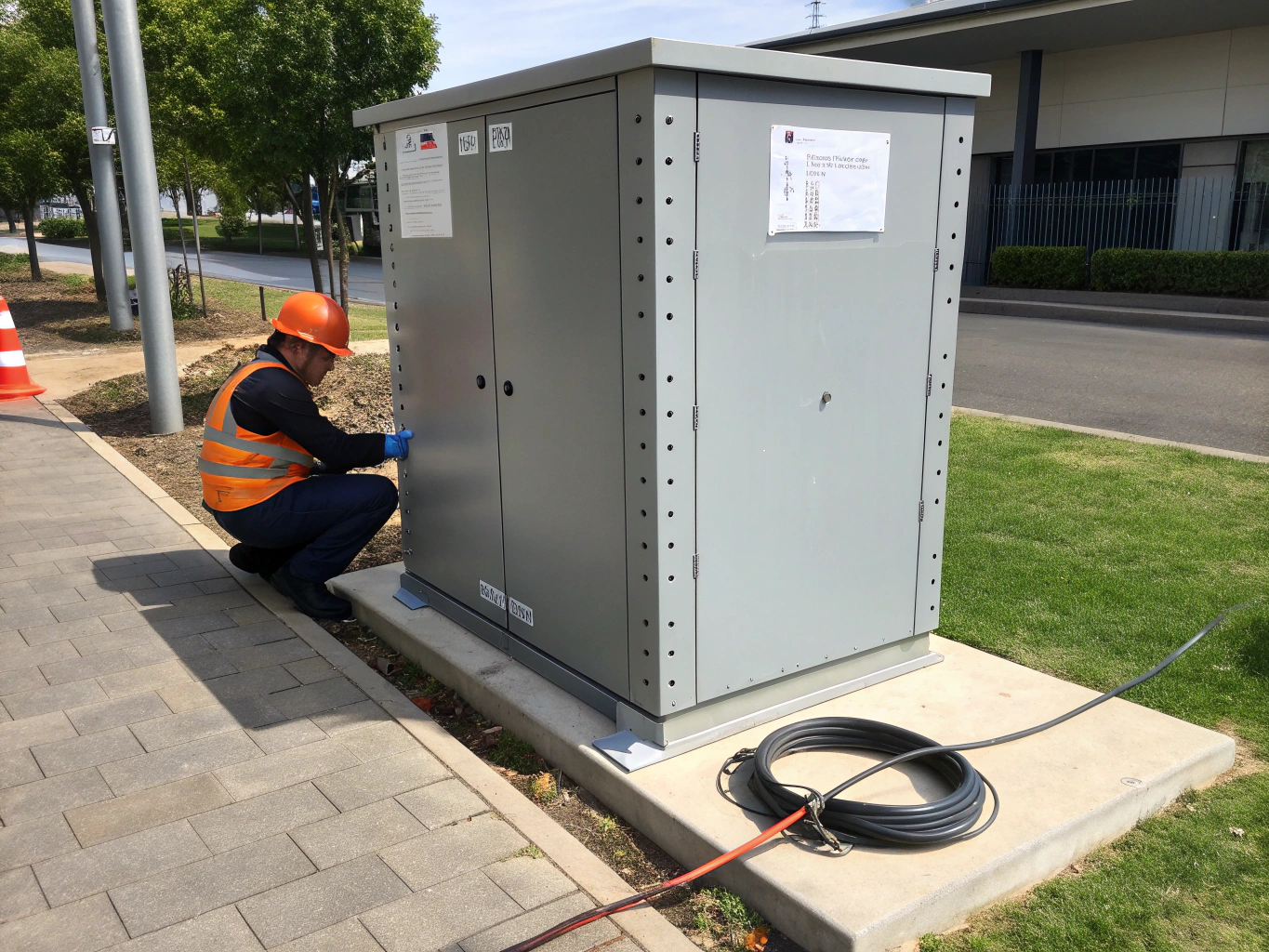

Edge Compute & Telecom Hub
Ruggedized micro-data center cabinets equipped with seismic bracing, IP-rated air filtration, and secure multi-point electronic latching for unmanned regional sites.

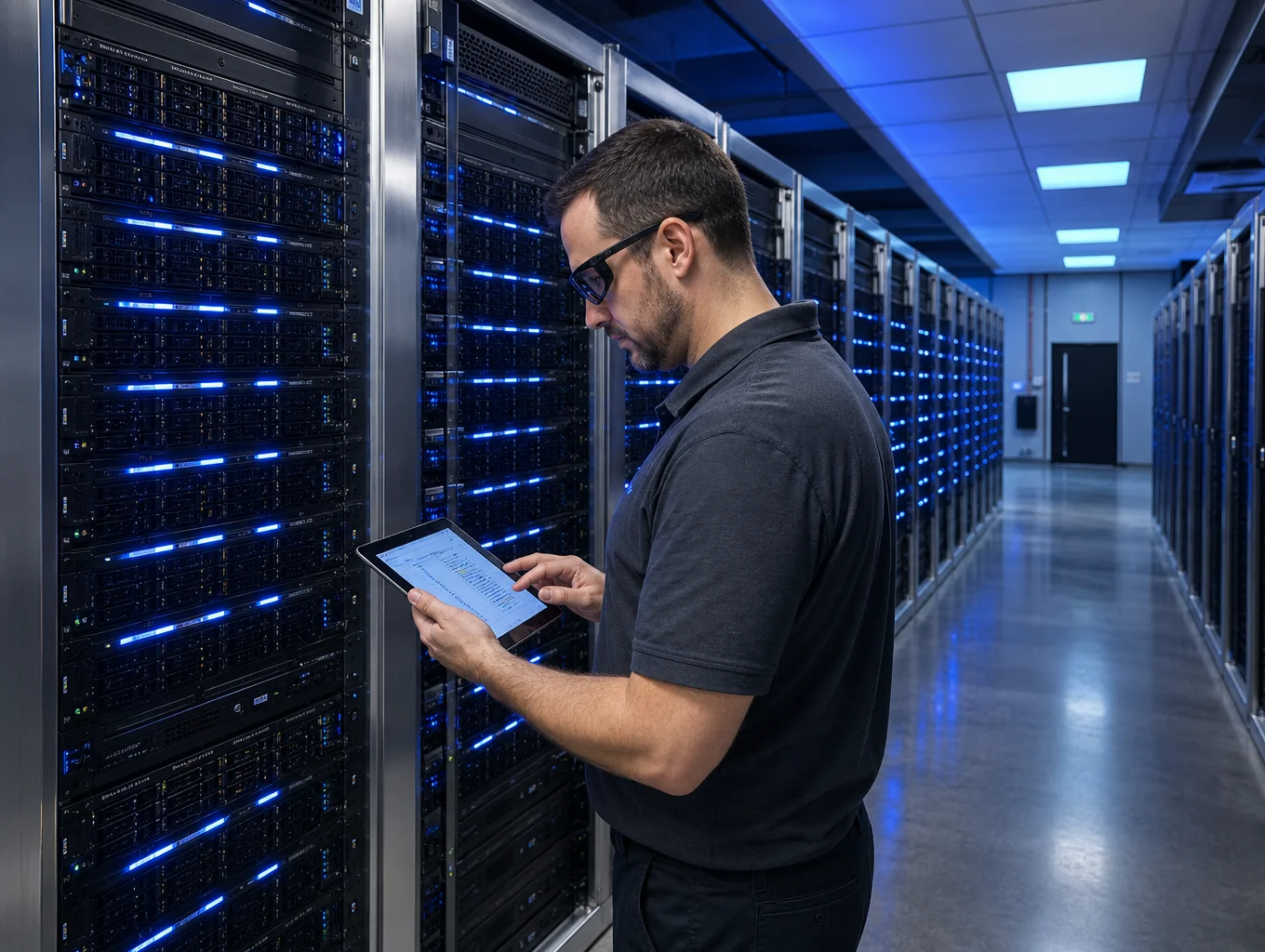

High-Performance Computing (HPC) Cluster
Ultra-heavy-duty liquid-to-air direct-to-chip cooling rack frames fabricated with 83% high-flow perforated mesh doors and integrated multi-manifold plumbing for AI accelerator clusters.
Need Custom Containment Rows or Non-Standard Rack Dimensions?
We fabricate bespoke server racks, dual-door hot aisle containment pods, and specialized cable ladder systems tailored to your mechanical drawings and airflow specifications.
Frequently Asked Technical Questions
Engineering guidance on EIA-310-E standards, aisle containment integration, static vs dynamic load capacities, custom finishes, and volume OEM delivery options.
All rack frames and vertical mounting rails strictly adhere to ANSI/EIA-310-E, IEC 60297-3-100, and DIN 41494 specifications. Mounting posts feature precision CNC-punched square cage nut holes (or tapped 10-32 / 12-24 options) with silk-screened U-position markings. Rail depths adjust seamlessly from 24 inches (610 mm) to 42 inches (1066 mm) to fit deep enterprise chassis from Dell PowerEdge, HPE ProLiant, Cisco UCS, and Supermicro.
Engineering & Compliance Highlights:
- Full compliance with EIA-310-E, IEC 60297-3-100 & RoHS standards
- Continuously adjustable rail depth with high-contrast laser/silk U-markings
- Validated fitment for standard 19" and 23" telecom and high-density compute chassis
Need Custom Rack Sizing or DFM Review?
Send your enclosure height (U-count), depth requirements, thermal airflow specs, or CAD models. Our structural engineers provide comprehensive DFM feedback and quote calculations within 24 hours.
We review STEP, IGES, SolidWorks, DXF files, and proprietary OEM schematics under bilateral NDA protection.
Server Rack Fabrication Capabilities
High-precision sheet metal manufacturing engineered for enterprise server rack enclosures, modular data center containment, and heavy-payload IT infrastructure.
CNC Turret Punching & Laser Cutting
High-speed multi-tool CNC turret punch presses and high-wattage fiber laser cutting systems deliver precise perforation patterns, louvers, knockouts, and clean edge geometry for server rack chassis and side panels.
Robotic Seam & Spot Welding
Automated robotic welding cells paired with AWS-certified TIG/MIG fixtures deliver structural rigidity, tight squareness tolerances, and high static payload support engineered for mission-critical IT infrastructure.
Automated Powder Coating Line
Continuous multi-stage pre-treatment, nano-ceramic conversion, and automated electrostatic powder coating produce durable, scratch-resistant, and ESD-safe industrial finishes across custom RAL specifications.
Intelligent Electronic Lock Systems
Factory integration of networked smart swinghandles, RFID card readers, numeric keypads, and remote microswitch sensors providing secure cabinet access control and automated audit logging.
Custom Airflow Baffles & Plenums
Engineered blanking panels, directional airflow baffles, brush cable pass-throughs, and vertical exhaust chimneys designed to eliminate thermal recirculation and optimize hot/cold aisle containment.
Factory-Installed Sub-Assemblies
Complete in-house mechanical integration including PEM self-clinching studs, mounting rails, grounding busbars, cable management fingers, and pre-routed power distribution brackets for plug-and-play installation.
Have Custom Server Rack or Enclosure Requirements?
Submit your STEP, DXF, or technical specifications for a comprehensive design-for-manufacturability evaluation, load calculation review, and rapid quotation.
Server Rack QA & Verification Matrix
Our China-based contract manufacturing facility operates under rigid ISO standards and multi-tier quality gates, guaranteeing dimensional fidelity, structural integrity, and global compliance for safety-critical data center deployments.
Compliance & Certification Matrix
Safety Compliance
Audio/Video, IT & Communication Enclosure Safety
Rigorous electrical safety, static loading, and fire containment certification.
Structural / Seismic
Seismic Zone 4 Dynamic Shake Table Testing
Multi-axis vibration qualification verifying welded structural joint integrity.
Standard Spec
Universal 19" Rack Dimensional Verification
Precision rail spacing, mounting unit (U) accuracy, and hole pitch conformity.
Surface Finish
1,000+ Hrs Accelerated Corrosion Resistance
Multi-stage zinc-phosphate pretreatment with industrial thermoset powder coat.
Enclosure Ingress
Ingress Protection & Dust/Moisture Resistance
Validated perimeter gasketing and filtered ventilation airflow protection.
Environmental
Hazardous Chemical Substance Restrictions
Strict material traceability ensuring non-hazardous metallurgical chemistry.
Manufacturing Quality Checklist
High-Precision CMM Dimensional Inspection
Optical coordinate measuring and height gauge verification ensuring sheet metal tolerances within ±0.05mm across all mounting points.
Weld Seam Integrity & Dynamic Load Testing
Non-destructive joint inspection and static weight ratings verified up to 1,500 kg (3,300 lbs) for high-density server configurations.
Airflow Ratio & Thermal Dissipation Validation
High-density 63% to 75% hexagonal door perforation testing to maintain unimpeded volumetric CFM airflow for hot/cold aisle setups.
Grounding Continuity & Electrical Bonding
Dedicated bonding studs on all frame panels, top covers, and doors with zero-resistance earth ground testing to meet global safety standards.
Pre-Delivery Trial Assembly & Hardware Alignment
100% pre-shipment mock assembly, door hinge swing testing, key lock mechanism inspection, and packaging drop-test verification.
Instant dispatch to enterprise procurement and engineering leads.
Standardized Production Process
Every server rack cabinet and enclosure goes through an end-to-end 8-stage manufacturing workflow, with dedicated QC verification at each checkpoint to guarantee structural perfection and fast turnaround.
Requirements & CAD Modeling
In-depth engineering review, 3D CAD modeling, DFM optimization, thermal analysis, and EIA-310 standard compliance check for custom rack architectures.
Sheet Metal CNC Processing
High-speed multi-kilowatt fiber laser cutting and multi-station CNC turret punching delivering ultra-clean ventilation mesh perforations and tight-tolerance cutouts.
Precision CNC Bending
Multi-axis CNC press brake forming guaranteeing exact angular tolerances and structural rigidity across mounting rails, doors, and side panels.
Robotic Welding & Assembly
Automated robotic welding cells and precision manual TIG/MIG seam fabrication ensuring structural integrity, squareness, and heavy static load ratings.
Pre-Treatment & Powder Coating
Multi-stage automated degreasing, chemical pre-treatment, and durable thermoset electrostatic powder coat application resistant to scratches and corrosion.
Sub-Assembly & Hardware Fitting
Precision integration of 19-inch EIA rack rails, PEM fasteners, ground studs, cable management channels, heavy-duty hinges, and multi-point locksets.
QA & Continuity Testing
100% CMM dimensional validation, electrical grounding & continuity verification, static/dynamic load testing, and thorough cosmetic quality audits.
Protective Packaging & Direct Freight
Anti-static wrapping, heavy-duty corner impact protection, ISPM-15 compliant export crating, and reliable direct container shipping worldwide.
Need Custom Fabrication & DFM Consulting?
Send us your 2D/3D CAD drawings to receive a comprehensive DFM analysis, tolerance optimization review, and rapid production quotation for server racks and enclosures.
BUILD YOUR CUSTOM SERVER ENCLOSURE
Specify your standard or custom server rack specifications below. Our engineering group delivers full DFM evaluations, configured 3D STEP drawings, and firm B2B contract pricing within 24 hours.
10-Year Welded Frame Guarantee
Heavy-gauge cold-rolled steel framing with reinforced welded corner gussets built for high-density compute loads.
100% EIA-310 Fit
Guaranteed standardized 19-inch mounting specifications with precision CNC stamped unit markings and universal compatibility.
Fast-Track 15-Day Lead Times
Accelerated OEM/ODM prototype fabrication, rapid CNC punching, and agile production line turnarounds.
