Metal Surface Treatments & Protective Coatings
Ensure maximum corrosion resistance, wear tolerance, and aesthetic quality for your sheet metal components. From automated powder coating to chemical passivation and electroplating, we provide full-service finishing under strict quality control.
In-House Finishing Line
Automated Conveyor & Batch Coating Facilities
Full Inspection Reports
Thickness, adhesion & salt spray certificates
Powder Coating & Painting
Automated conveyor lines with custom RAL color matching, textured coatings, and high-durability UV resistance.
Anodizing & Passivation
Type II and Type III hard anodizing for aluminum, along with ASTM A967 chemical passivation for stainless steel.
Plating & Conversion
Zinc, nickel, tin electroplating, and chemical conversion coatings engineered for harsh industrial environments.
Key Performance of SafeFaber Metal Surface Treatments
Raw fabricated sheet metal components require specialized finishes to withstand corrosive field conditions, deliver precise electrical characteristics, and meet stringent OEM visual standards.
- Up to 5x higher surface hardness (e.g., Hard Anodizing Type III)
- High impact and scratch resistance under rough shop environments
- Reduced surface friction to minimize continuous machine wear
- 1,000+ hour ASTM B117 salt spray test endurance
- Chemical, solvent, and acid exposure protection for industrial enclosures
- Hermetic sealing of exposed edges, seams, and laser-cut corners
- RAL and Pantone custom color powder coat and liquid paint matching
- Matte, satin, gloss, bead-blasted, and brushed surface textures
- Permanent laser engraving and screen printing for clear UI markings
- Selective masking for copper grounding studs and contact points
- MIL-DTL-5541 chromate conversion for conductive corrosion barrier
- Optimized emissivity and heat dispersion for server & inverter enclosures
Core Metal Treatment & Finishing Processes
Enhance the corrosion resistance, electrical conductivity, aesthetic appeal, and mechanical durability of custom sheet metal parts with our in-house and partner-certified surface treatments.
Powder Coating
Durable, uniform exterior and industrial surface protection
A dry finishing process where electrostatic powder is applied to grounded sheet metal assemblies and cured under heat (180°C – 200°C) to form a tough, protective skin.
Key Advantages & Capabilities
- Excellent resistance to chipping, scratching, UV fading, and corrosion
- Zero volatile organic compounds (VOCs) and minimal environmental impact
- Seamless edge coverage on complex laser-cut and welded sheet enclosures
- Over 200 standard RAL color options in stock with custom color matching
Compatible Materials:
Additional Post-Processing & Finishing Operations
Complete turnkey fabrication with comprehensive in-house mechanical preparation and precision secondary treatments.
Need custom surface treatment specifications or compliance reports?
Our engineering team can assist with MIL-SPEC, RoHS, REACH, and ASTM standards tailored to your OEM enclosure requirements.
Metal Surface Treatment & Industrial Finishing Services
Protect your sheet metal assemblies against corrosion, wear, and harsh operating conditions. We provide complete chemical, electrochemical, and mechanical surface treatments with verified quality documentation for global OEMs.
ASTM B117 salt fog test chamber on-site

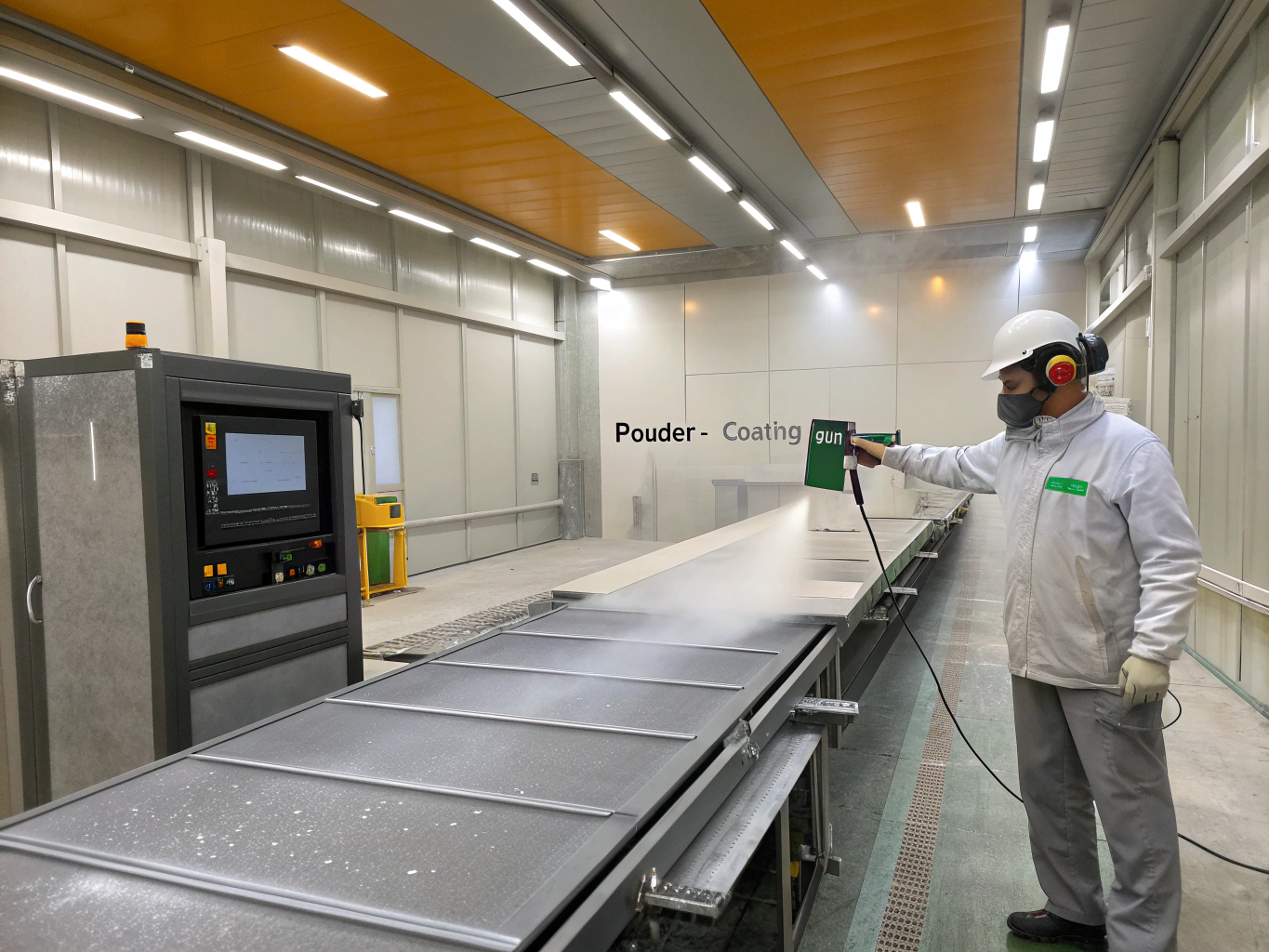

Large format automated conveyor oven lines
Eco-friendly chemistry with trivalent passivates
Eddy-current and magnetic gauge verification
Surface Finishing Capabilities
Engineered for aluminum, stainless steel, cold-rolled steel, galvanized steel, and copper alloys.
Precision Pre-Treatment, Masking & Inspection Protocol
Surface treatments fail when pre-cleaning and masking are neglected. We follow an aerospace-grade multi-stage regimen to ensure zero flaking, uniform film thickness, and clear electrical contact points.
Pre-Treatment & Degreasing
Multi-stage automated ultrasonic wash, alkaline degreasing, and silane or iron phosphate conversion coating.
Surface Masking & Tooling
Custom high-temperature silicone plugs, die-cut Kapton tape, and grounding point protection for threaded holes.
Controlled Deposition
Cleanroom application via robotic reciprocators and computerized curing profiles matching exact TDS specs.
Metrology & Quality Sign-Off
Cross-hatch adhesion testing (ASTM D3359), gloss meter reading, and X-ray fluorescence plating thickness analysis.
Need specialized masking diagrams or MIL-spec certifications?
Submit your 2D/3D CAD drawings with engineering callouts. Our engineers review tolerances and plating builds within 24 hours.
Materials and Metal Finishes
From precision raw metal alloys to rigorous corrosion-resistant surface coatings, our manufacturing facility delivers compliant, high-durability solutions engineered to strict global industrial standards.
Full chemical composition and mechanical strength verification on every batch of raw sheet metal and extrusions.
Automated continuous powder coating lines and multi-stage pretreatments for harsh outdoor environments.
Finishing allowances accounted for in CAD/CAM design to ensure seamless enclosure assembly and hardware fitment.
Grades: SUS304, SUS316L, SUS430, 201
Key Characteristics
Excellent corrosion resistance, sanitary finish, high tensile strength, heat resistant.
Typical Applications
Medical enclosures, food processing equipment, outdoor cabinets, chemical storage tanks.
Grades: AL5052-H32, AL6061-T6, AL6063, AL1050
Key Characteristics
Lightweight, non-magnetic, great thermal conductivity, natural oxide protection layer.
Typical Applications
Telecom housings, server chassis, battery enclosures, aerospace brackets, heatsinks.
Grades: SPCC (Cold-Rolled), SPHC (Hot-Rolled), SGCC / SECC (Galvanized)
Key Characteristics
Cost-effective, highly formable, superior structural rigidity, weldable.
Typical Applications
Heavy-duty industrial machinery, power distribution cabinets, rack frames, automotive panels.
Grades: C1100 (Electrolytic Copper), C2680 / C2600 (Yellow Brass)
Key Characteristics
Superb electrical and thermal conductivity, spark resistance, decorative appearance.
Typical Applications
Busbars, switchgear terminals, RF shielding boxes, electrical contactors.
Require custom alloys or heavy-plate cutting?
We source specialized structural steels, nickel alloys, and custom extrusion tooling.

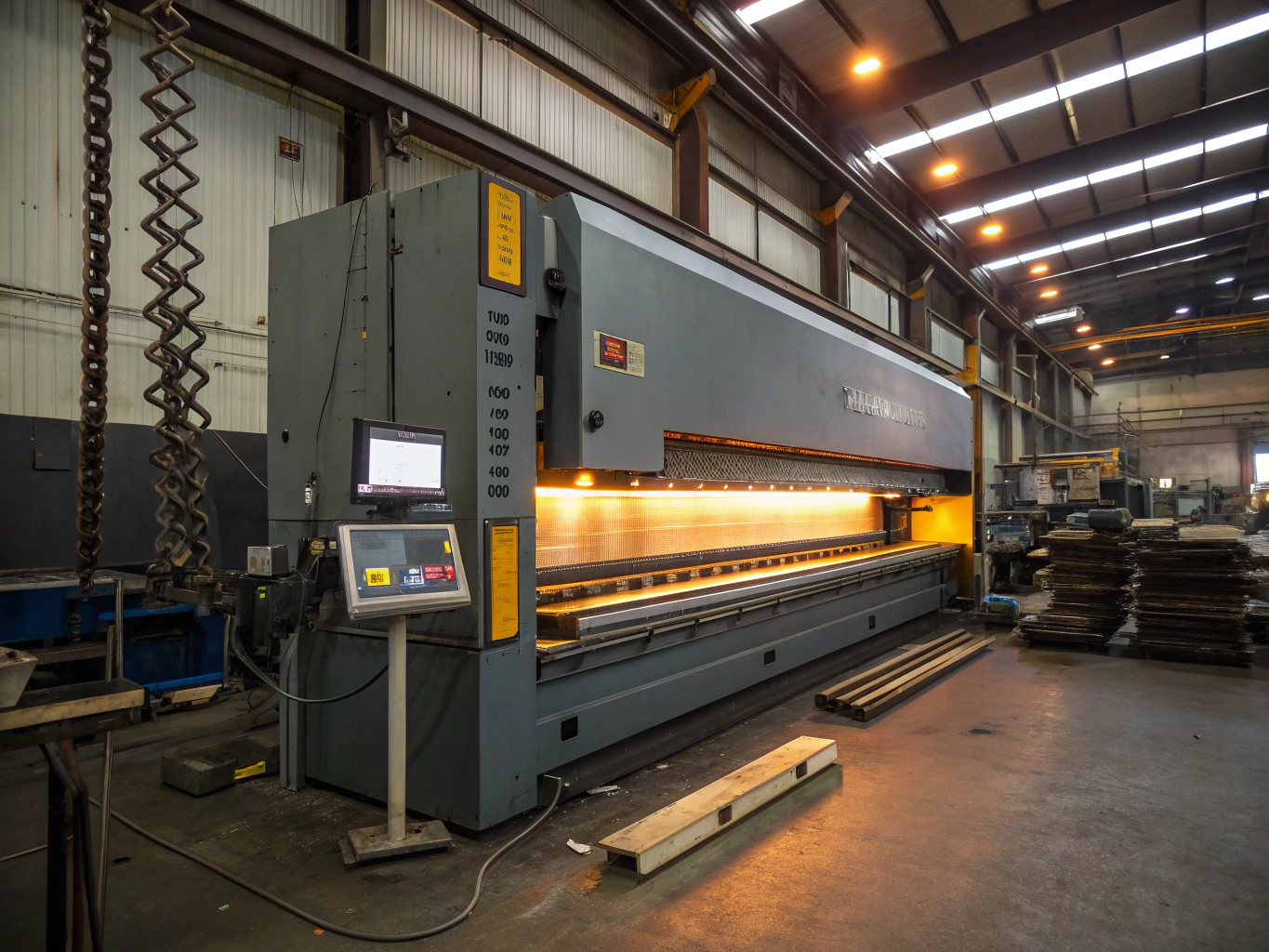

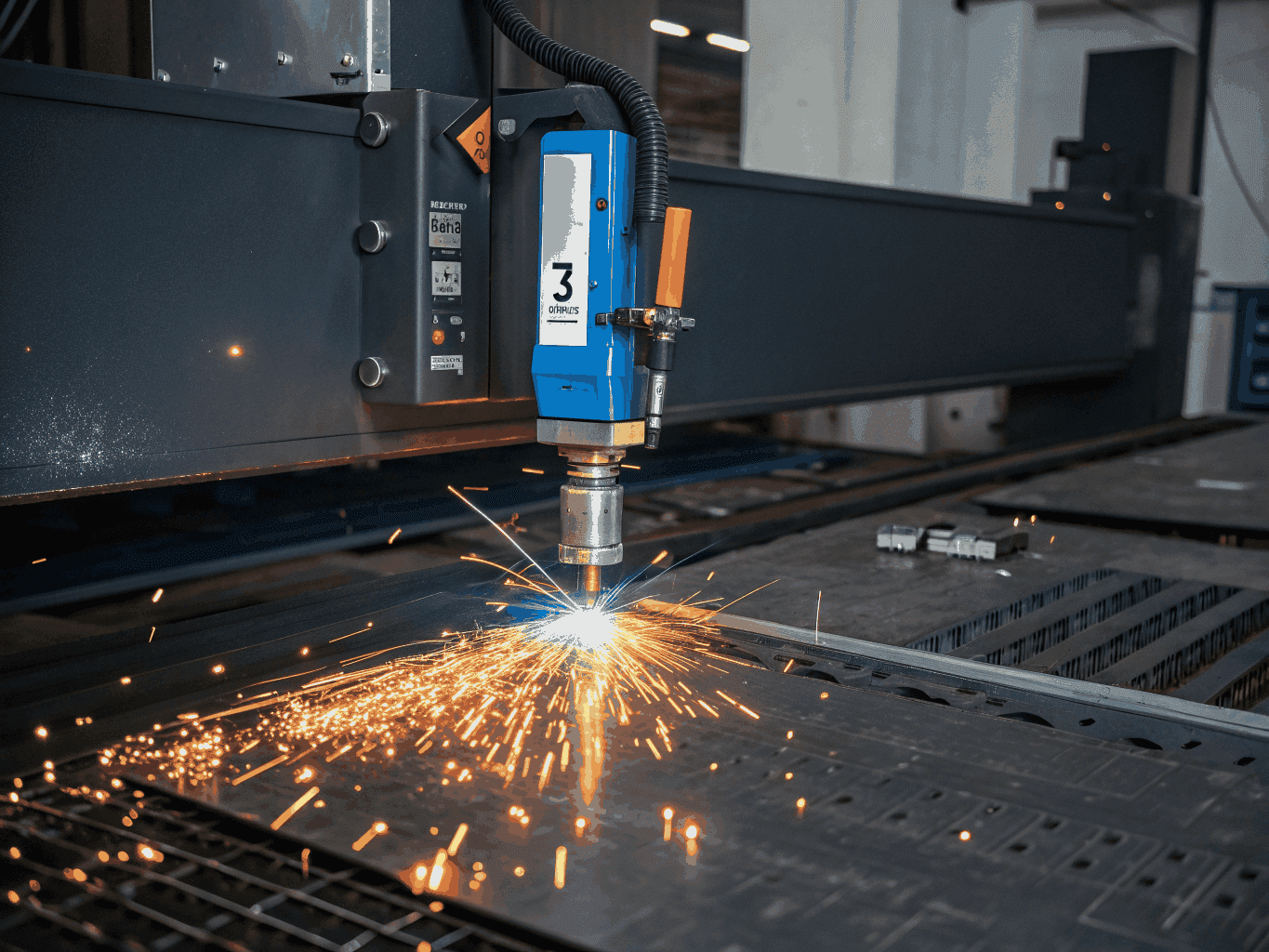

Related Fabrication Capabilities
Explore our core manufacturing processes engineered for high-precision OEM supply chains and industrial-grade volume production. Gain deeper insights by comparing metal finishes for durability, evaluating zinc plating types for corrosion protection, or utilizing mechanical assembly as a final production step.
- Tolerances to ±0.005 in
- Up to 1.0 in Plate Thickness
- Scratch-free finish
- Complex multiple fold profiles

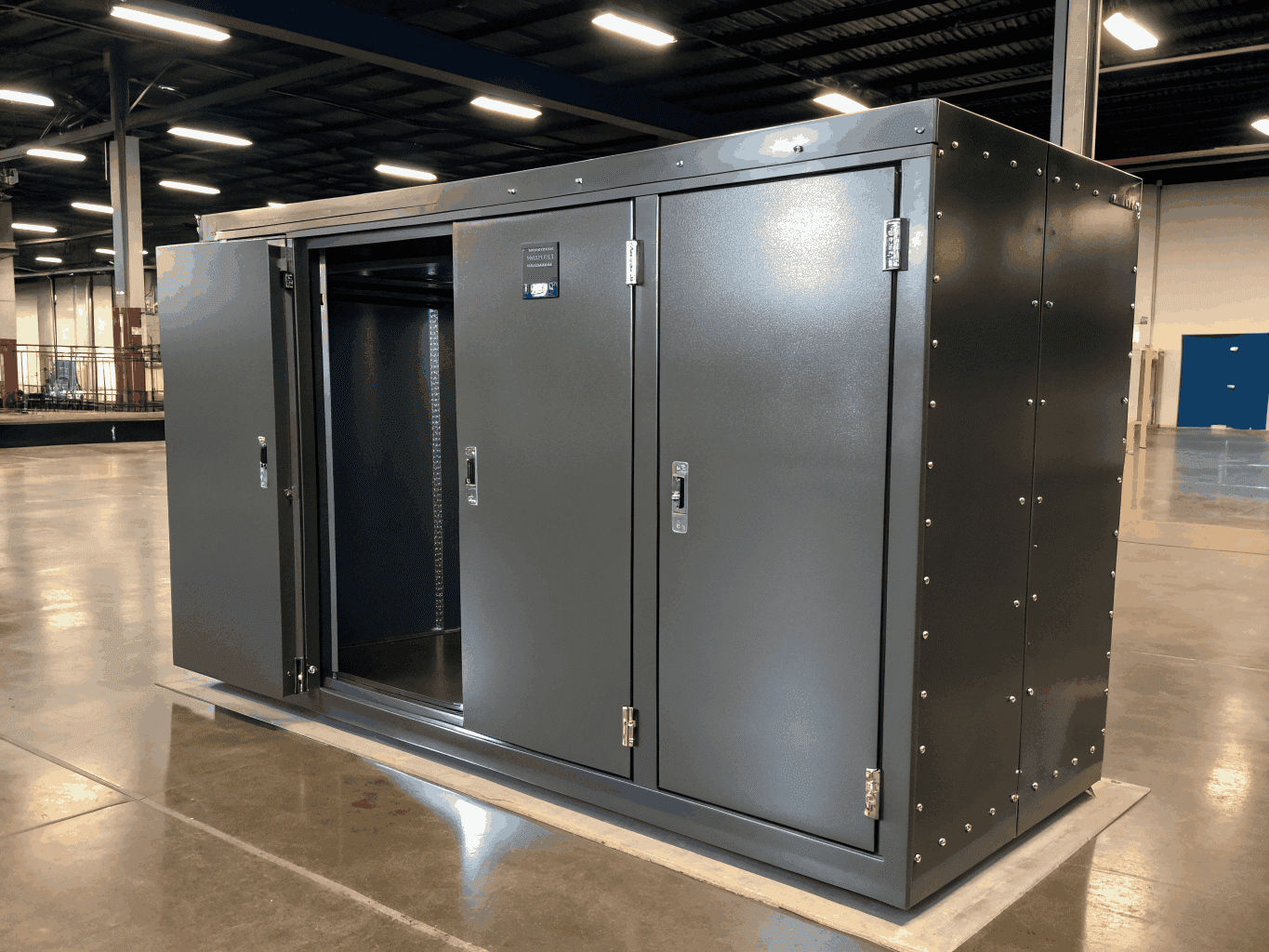

- NEMA 4X / IP66 Ready
- Full In-House Assembly
Metal Surface Treatment & Finishing Process
From raw stamped and welded assemblies to high-durability final delivery, our systematic 6-stage surface finishing workflow supports superior corrosion protection, optimal bonding, and refined cosmetic quality.
Quality & Specification Benchmarks
All surface operations execute under documented standard operating procedures (SOPs) with batch-level material certificates provided upon delivery.
Corrosion Resistance
Up to 1,000+ Hrs Salt Spray (ASTM B117)
Film Thickness Control
+/- 5 Microns Tolerance Precision
Coating Adhesion
Class 5B Cross-Hatch Adhesion Rating
Environmental Compliance
100% RoHS & REACH Aligned Chemistry
Require specialized anodizing, powder coating, or plating specs?
Our engineering team reviews technical drawings and finishes specifications within 24 hours.
Metal Surface Treatments in Real-World Applications
From corrosive marine battery farms to cleanroom data center racks, discover how our precision finishes protect sheet metal enclosures and meet global OEM engineering standards.

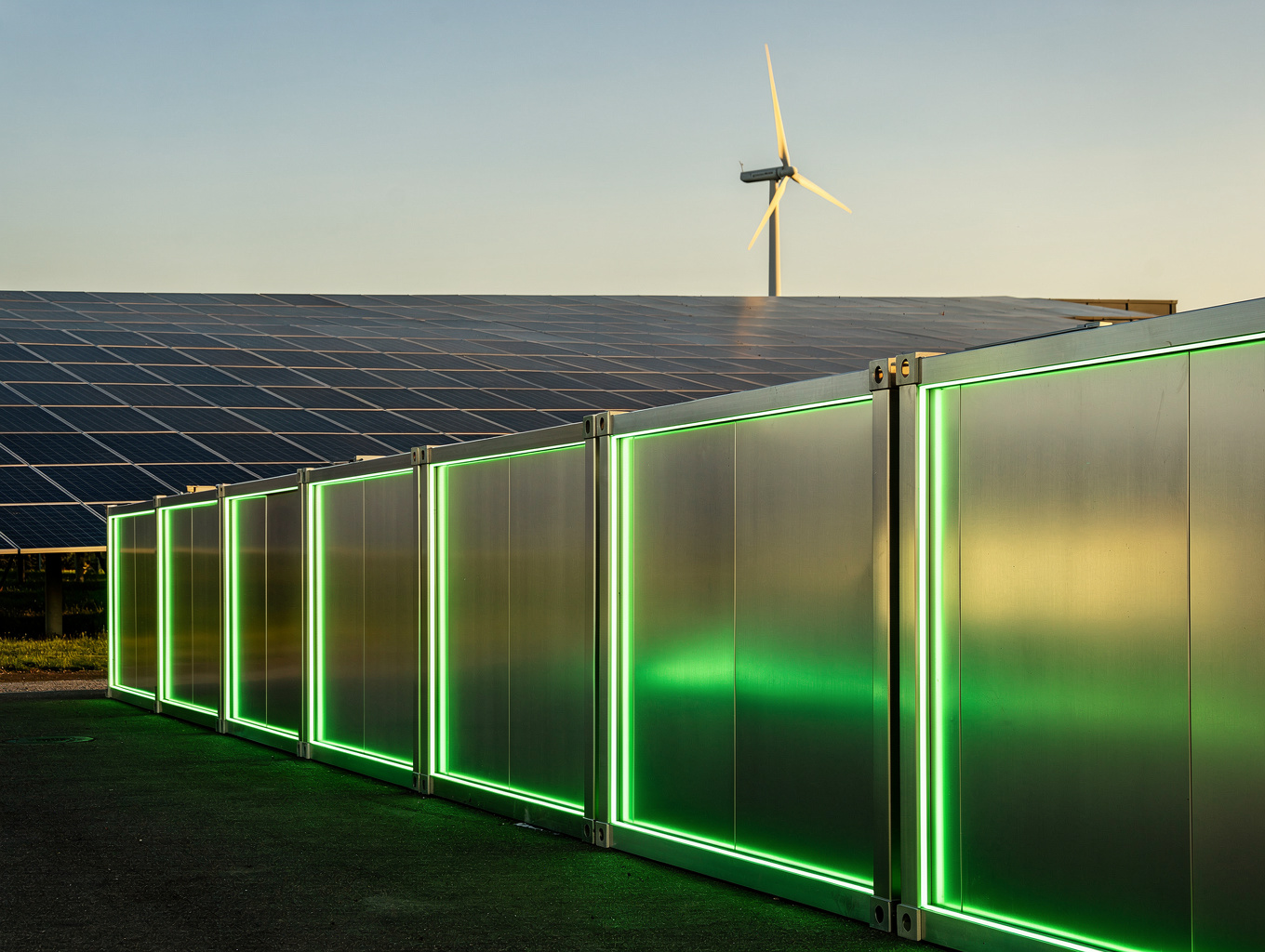

Supports a fire-retardant barrier, UV resistance, and minimal rust along welded seams in utility solar and battery sites.

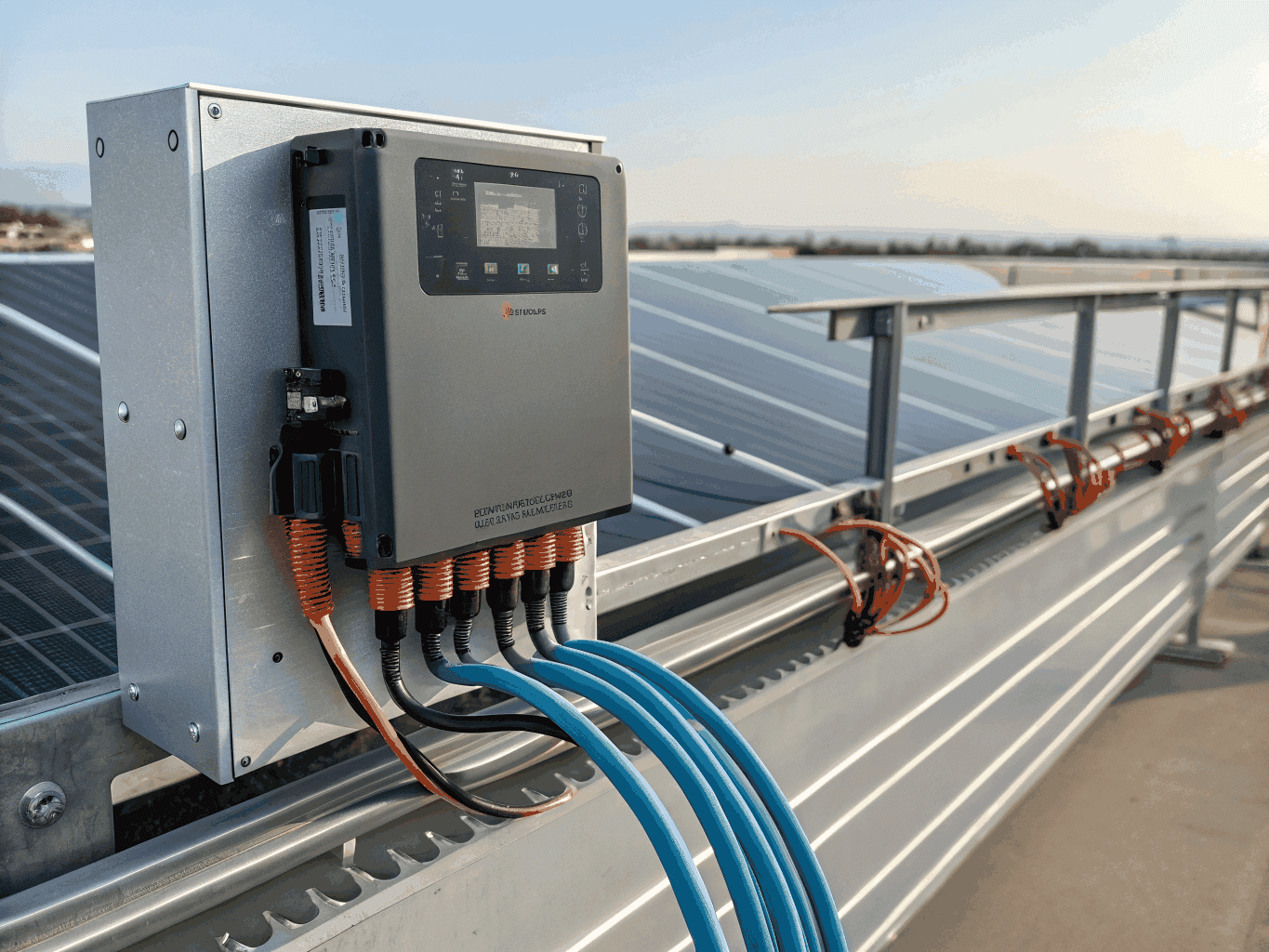

Protects high-power electronics against extreme thermal fluctuation, sand abrasion, and continuous sun exposure.

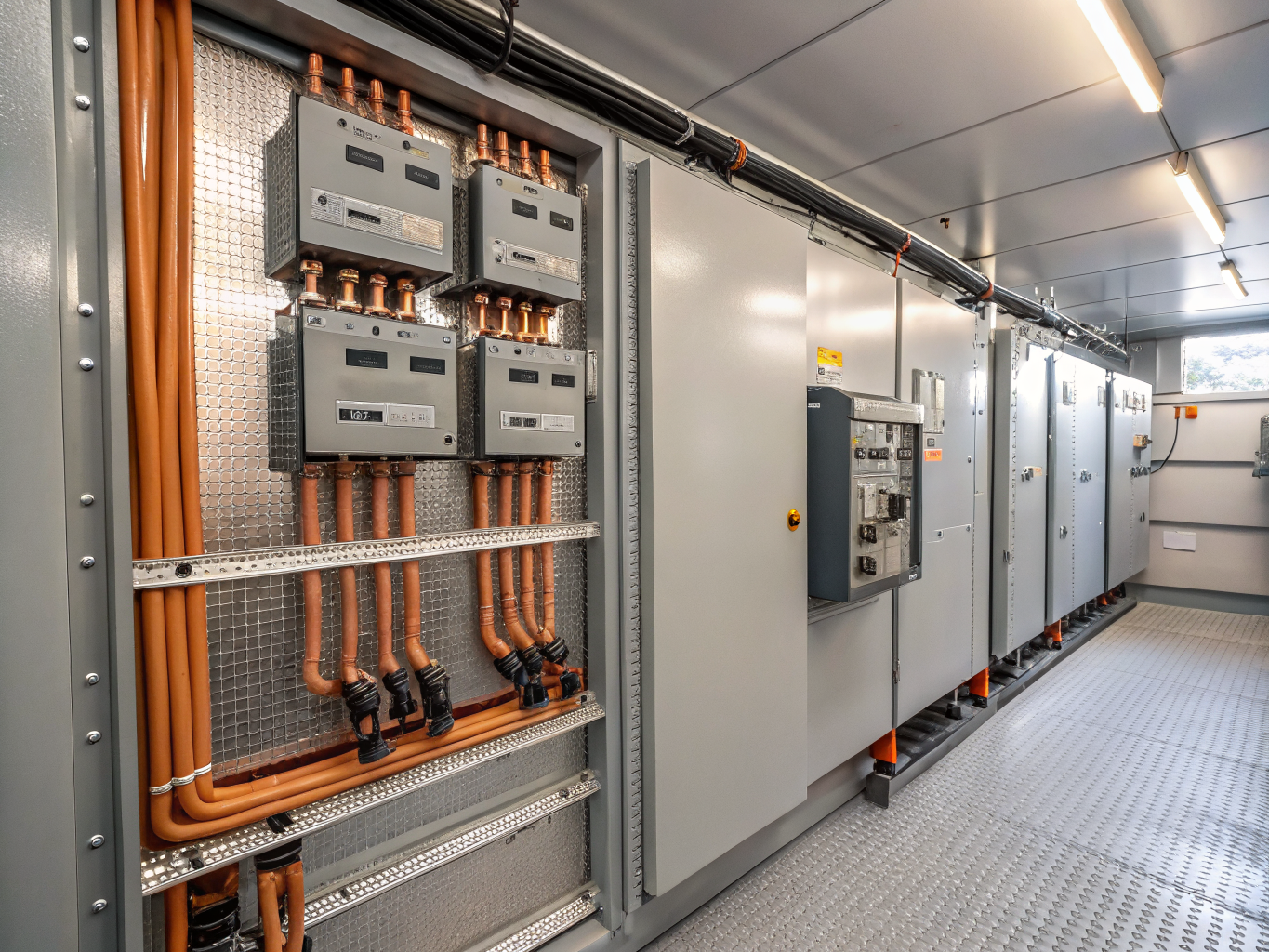

Provides precise thread tolerance on conductive fasteners, copper busbars, and heavy structural mounting panels.
ASTM & ISO Standards-Based
Tested under ISO 9227 & ASTM B117 salt fog chambers.
In-House Quality Control
Coating thickness gauges, cross-hatch adhesion, and gloss testers.
Surface Treatment Selection Table: Process, Material, Thickness, Color, Cost and Lead Time
| Process | Best materials | Film thickness | Color options | Cost band | Lead time |
|---|---|---|---|---|---|
| Anodizing | Aluminum, titanium | Type II 5–25 µm; Type III hardcoat 25–75 µm | Clear, black, dark bronze, gold, red, blue | Medium | 3–5 working days |
| Powder coating | Carbon steel, galvanized steel, aluminum | 60–120 µm | Any RAL or Pantone match; gloss, matte or textured | Low | 2–4 working days |
| Chrome powder coat | Carbon steel, aluminum | 70–120 µm | Chrome, mirror silver, clear-over-chrome tints | Medium | 4–6 working days |
| Bead blasting | Aluminum, stainless steel, carbon steel | No measurable build-up | Uniform matte or satin natural metal | Low | 1–2 working days |
| Abrasive blasting | Carbon steel, welded fabrications, cast parts | Removes about 5–25 µm of scale; leaves an anchor profile | Bare metal, ready for coating | Low | 1–2 working days |
| Alodine | Aluminum, magnesium | 0.5–1.5 µm | Clear, gold-yellow, light iridescent | Low | 1–3 working days |
| Zinc plating | Carbon steel, fasteners, small stamped parts | 5–25 µm | Clear, yellow, black, olive drab | Low to medium | 3–5 working days |
Anodized Aluminum Dark Bronze and Chrome Powder Coat
Specify anodized aluminum dark bronze using class, film thickness, and sealed color chips after abrasive blasting. For bright mirror aesthetics, we powder coat custom finishes on sheet enclosures instead of costly chrome plating. While unsuitable for sliding wear, this dry finish avoids hazardous tanks. See our metal finishes chart for detailed coating callouts.
Zinc Plating for Small Batch Steel Parts
Zinc plating is an economical sacrificial barrier for small batch steel parts requiring fast delivery. Simple rack tooling eliminates setup costs, and minimum lot pricing keeps initial runs affordable while higher volumes reduce piece rates. Specify clear, yellow, or black chromate passivates along with hydrogen embrittlement relief baking. Compare zinc plating types before selecting your chemistry.
Frequently Asked Questions
Technical answers regarding our metal finishing specs, production tolerances, project lead times, and engineering cost considerations.
Have a custom print or specific finishing spec?
Upload your 3D CAD files (STEP, IGES, SLDPRT) and 2D mechanical prints. Our application engineering team provides complete DFM reviews and detailed quotations within 24 hours.
Ready to specify high-durability surface treatment for your metal parts?
Protect against corrosion, achieve tight cosmetic tolerances, and streamline your entire contract manufacturing lifecycle with our turnkey post-processing capabilities.
Powder Coating & E-Coating
Automated conveyorized lines for durable, salt-spray tested exterior and interior industrial finishes.
Anodizing & Chromate Conversion
Type II and Type III hardcoat anodizing, clear/color finishes, and RoHS-compliant passivation.
Plating & Galvanization
Zinc, nickel, tin, and chrome electroplating delivering high corrosion resistance and conductivity.
Brushing, Polishing & Silk Screening
Directional grain brushing, bead blasting, mirror polishing, and custom B2B screen printed graphics.
