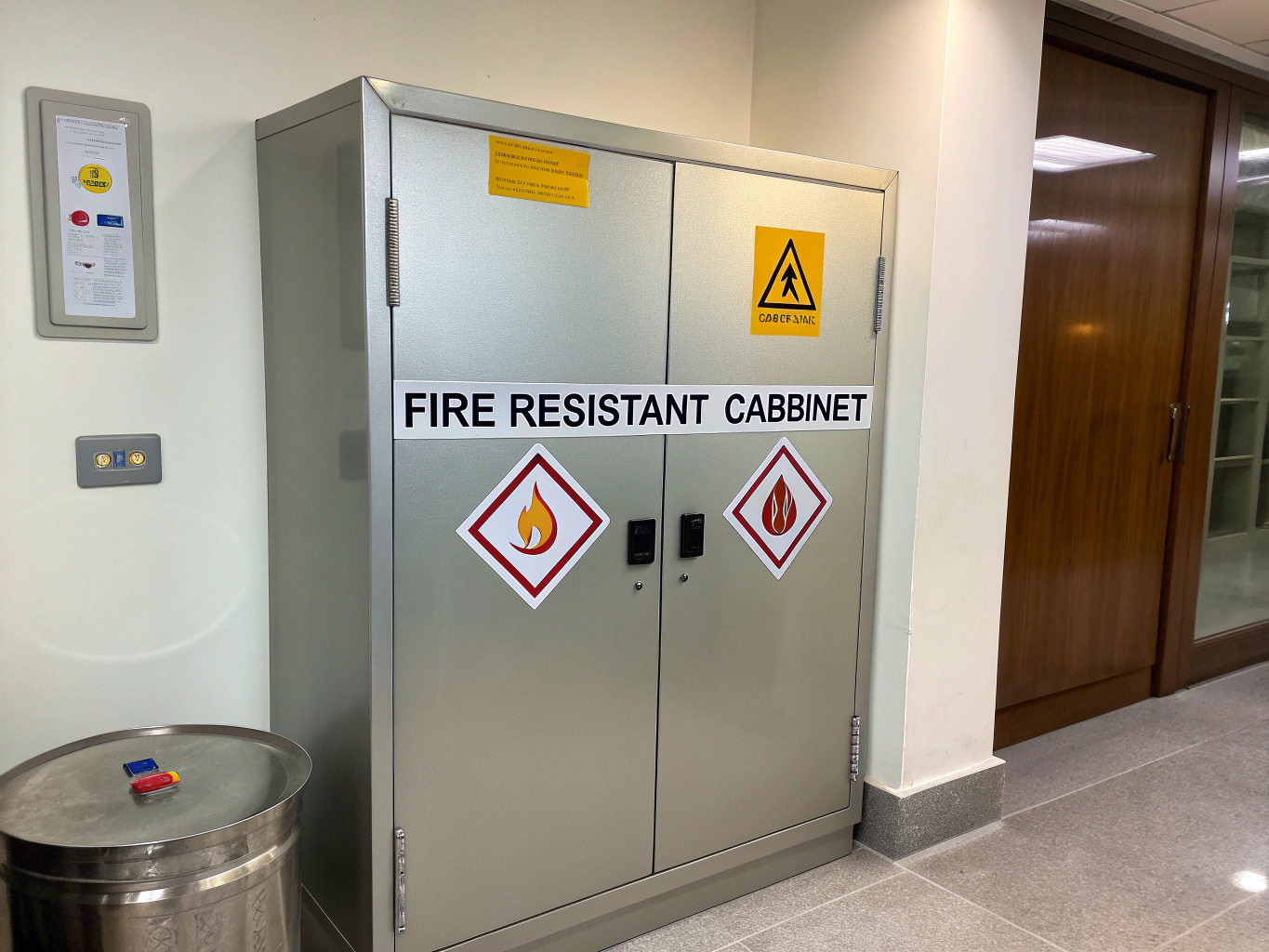

Flammable Cabinets
Heavy-duty fire cabinet solutions engineered for safe storage of flammable liquids, hazardous chemical materials, and solvents with custom OEM fabrication.
Key Specifications & Features
- Fire-resistant double-wall 1.2mm cold-rolled steel construction
- 50mm leak-proof containment sump base for liquid spills
- Adjustable galvanized steel shelving with high load capacity
- Available in 12, 30, 45, 60 & 90 gallon standard capacities
- Fully compliant with OSHA 29 CFR 1910.106 & NFPA 30 standards
PRODUCT OVERVIEW
Our flammable storage cabinets are purpose-built to safely contain flammable liquids, solvents and hazardous chemical materials in industrial, laboratory and warehouse environments. Each fireproof cabinet is fabricated from heavy-gauge steel with strict production standards, delivering reliable fire protection, spill containment and long-term durability. As a professional OEM manufacturer, we supply both standard models and fully custom fire cabinets to match specific project requirements.
ENGINEERING & MATERIAL SPECIFICATIONS
Industrial-grade double-wall construction designed for maximum fire containment, spill isolation, and long-term durability in demanding chemical environments.
Capacity
12 gal / 30 gal / 45 gal / 60 gal / 90 gal
Custom sizes & multi-compartment options available upon request
Construction
Double-wall cold-rolled steel, 1.2mm (18-gauge)
38mm insulating air space between walls for optimal fire protection
Door Type
Single / Double door (Manual or Self-closing)
180-degree continuous piano hinge with self-latch mechanism
Shelving
1–4 adjustable galvanized steel shelves
Galvanized design directs spills to leak-proof containment sump
Sump Depth
50mm (2-inch) leak-proof containment sump base
Seamless welded bottom retains accidental chemical leaks and spills
Ventilation
Dual 2-inch standard ventilation ports with flame arresters
Strategically placed threaded vents for safe fume exhausting
Lock System
3-point self-latching key lock mechanism
High-security stainless steel bullet latch with dual keys
Surface Finish
Epoxy powder coating, standard safety yellow
High-gloss lead-free powder coat provides chemical wear resistance
Compliance
OSHA 29 CFR 1910.106 & NFPA Code 30
Verified structural integrity, thermal isolation & leak retention
TAILORED ENGINEERING & CAD DRAFTING
Need specialized dimensions, custom door mechanics, unique ventilation manifold layouts, or 304/316 stainless steel construction?
* All specifications can be customized per client and regulatory requirements.
Engineering Support & CAD
Beyond standard catalog models, we provide full custom design support for tailored fire cabinet solutions. Our engineering team collaborates directly with procurement and site safety managers to ensure precise fit and full regulatory compliance.
Custom Structure Design
Tailored cabinet dimensions and load capacities engineered to accommodate specific facility layouts, tight footprints, and specialized safety clearance constraints.
Professional CAD Drafting
Detailed 2D assembly blueprints and 3D CAD modeling provided for engineering review and client sign-off before raw material cutting begins.
DFM Optimization
Design for Manufacturability analysis to maximize sheet metal utilization, lower fabrication costs, and enhance structural durability under heat stress.
Compliance Review
Rigorous design audits ensuring custom cabinet structures comply fully with OSHA 29 CFR 1910.106 and NFPA 30 fire containment standards.
Custom Internal Layout
Configurable shelving height increments, dedicated grounding lugs, custom containment sump depths, and specialized chemical separation dividers.
Standardized Fireproof Cabinet Production Process
Every flammable storage cabinet follows a rigorous 7-stage in-house production workflow with quality checkpoints at every step to guarantee structural integrity, fire protection, and leak containment.
Safety Compliance Review & Design Finalization
Engineering team verifies design against OSHA & NFPA safety standards, confirms double-wall structure specs, material thickness, and sump sealing requirements.
Precision Fiber Laser Cutting of Steel Panels
High-precision laser cutting of heavy-gauge cold-rolled steel sheets, ensuring accurate dimensions for all cabinet panels, doors, and internal components.
CNC Bending & Forming of Cabinet Structure
CNC press brake forming of cabinet double-wall body, door panels, and sump base, ensuring uniform bending precision and structural fit.
Seamless Welding & Leak-Proof Fabrication
Precision welding of cabinet frame and 50mm containment sump base to guarantee 100% leak-proof performance and long-term durability.
Chemical-Resistant Surface Treatment
Full pre-treatment chemical wash and durable epoxy powder coating process for corrosion resistance and industrial safety yellow finish.
Full Assembly & Safety Hardware Fitting
Assembly of cabinet doors, 3-point self-latching mechanisms, adjustable shelves, grounding connectors, and dual flame arresters.
Safety Performance Inspection & Packaging
Full inspection of door sealing, sump leak-proof performance, lock function, and dimensional accuracy, followed by protective packaging.
Safety Compliance Review & Design Finalization
Engineering team verifies design against OSHA & NFPA safety standards, confirms double-wall structure specs, material thickness, and sump sealing requirements.
Precision Fiber Laser Cutting of Steel Panels
High-precision laser cutting of heavy-gauge cold-rolled steel sheets, ensuring accurate dimensions for all cabinet panels, doors, and internal components.
CNC Bending & Forming of Cabinet Structure
CNC press brake forming of cabinet double-wall body, door panels, and sump base, ensuring uniform bending precision and structural fit.
Seamless Welding & Leak-Proof Fabrication
Precision welding of cabinet frame and 50mm containment sump base to guarantee 100% leak-proof performance and long-term durability.
Chemical-Resistant Surface Treatment
Full pre-treatment chemical wash and durable epoxy powder coating process for corrosion resistance and industrial safety yellow finish.
Full Assembly & Safety Hardware Fitting
Assembly of cabinet doors, 3-point self-latching mechanisms, adjustable shelves, grounding connectors, and dual flame arresters.
Safety Performance Inspection & Packaging
Full inspection of door sealing, sump leak-proof performance, lock function, and dimensional accuracy, followed by protective packaging.
CUSTOMIZATION OPTIONS
Custom Dimensions & Capacity
Tailored exterior sizing and internal gallon capacities designed to fit your precise floor space and storage volume requirements.
Material Selection
Heavy-gauge cold-rolled steel construction standard, with 304 stainless steel available for high-corrosive chemical environments.
Door Configuration
Available in single or double door setups with manual opening or automatic self-closing mechanisms for emergency fire containment.
Lock System & Hardware
Standard key locking or upgraded 3-point self-latching security mechanisms for enhanced access control and safety compliance.
Custom Color & Finish
Durable epoxy powder coating in standard safety yellow, with full RAL colour matching options to align with facility aesthetics.
Additional Accessories
Equip with grounding wires, forced ventilation kits, flame arresters, and extra galvanized steel shelves for custom internal storage.
Certified Storage Quality & Safety
Every flammable storage cabinet is built to uncompromising B2B manufacturing standards. From laser-cut steel precision to 100% leak testing, our compliance regime guarantees certified workplace protection.
Verified Manufacturing Standards
ISO 9001:2015 Certified System
ISO 9001Strict quality management governing raw sheet metal inspection, laser cutting accuracy, and assembly precision.
OSHA 29 CFR 1910.106 & NFPA 30
CompliantEngineered to satisfy double-wall thermal insulation, double ventilation with flame arresters, and 50mm containment sump rules.
100% Leak & Sump Verification
Batch TestedEvery cabinet sump undergoes strict leak-proof testing to guarantee zero hazardous chemical or liquid migration.
Cold-Rolled Steel Construction
VerifiedHeavy-gauge double-wall steel verified for structural integrity, 3-point self-latching security, and long-term fire resistance.
Pre-Delivery Safety Audit
Final CheckComprehensive end-of-line functional checks covering door alignment, lock systems, grounding connections, and powder finish.
Frequently Asked Questions
Find technical answers regarding our flammable storage cabinets, compliance standards, custom steel fabrication, and OEM contract manufacturing process.
Custom Engineering & DFM
OSHA 29 CFR 1910.106 & NFPA 30 Compliant
Need CAD drawings, 3D models, or custom dimensional submittals for your safety cabinet project? Our engineering team responds within 24 working hours.
Related Safety & Storage Solutions
Explore our complementary line of engineered industrial cabinets built for fire protection, hazard isolation, and chemical containment.

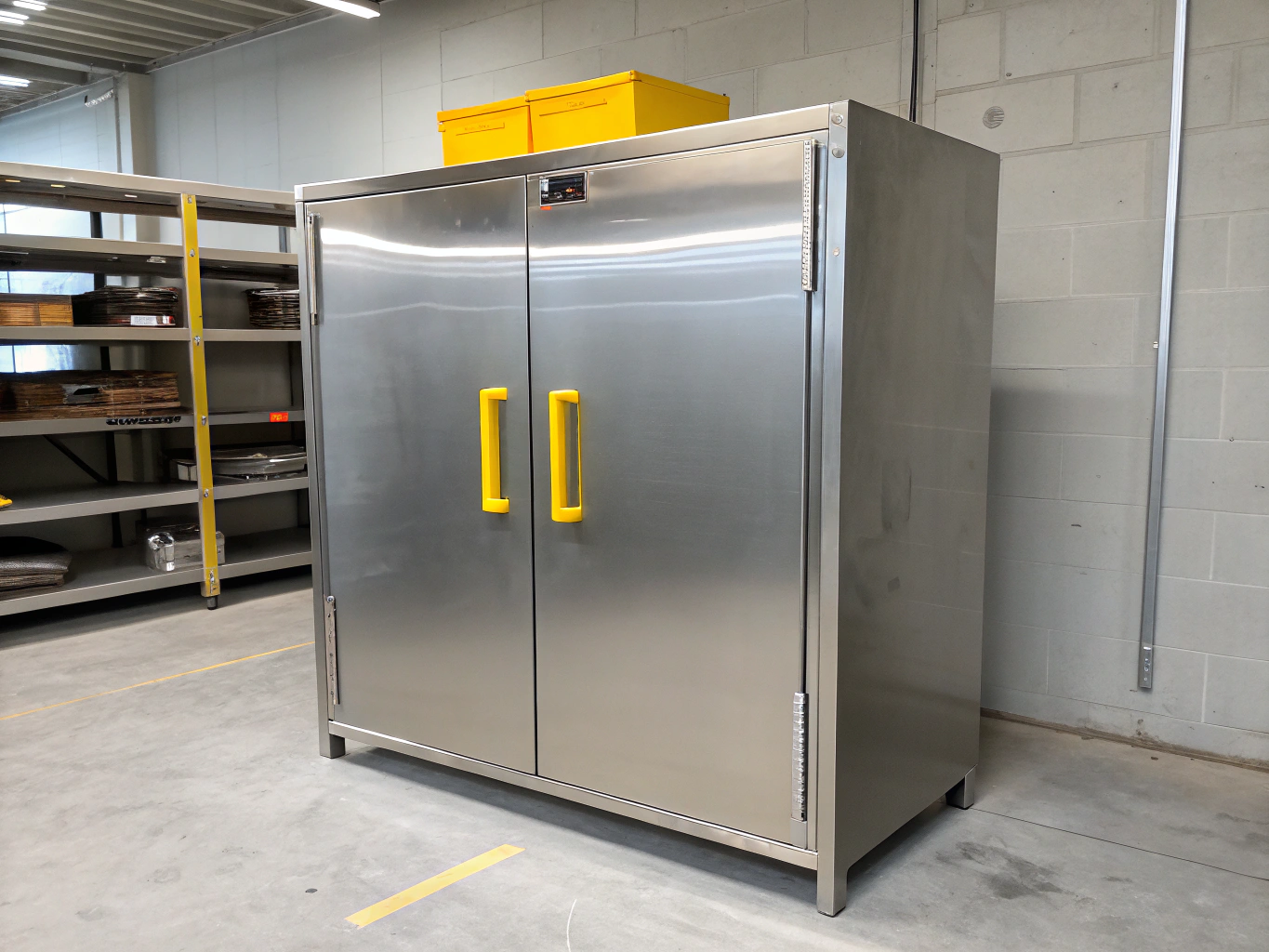

Heavy Duty Industrial Cabinets
Engineered heavy-gauge steel cabinets designed for structural durability, tool storage, and harsh shop floor environments.
Lithium-Ion Battery Cabinets
Specialized thermal containment cabinets with explosion-relief ventilation ports for high-risk battery storage.
Chemical Storage Cabinets
Corrosion-resistant steel cabinets featuring leak-proof welded sumps and flame arrester vents for acids and solvents.
Request a Custom Quote for Flammable Storage Cabinets
Share your required capacity, dimensions, safety specifications, and order quantity. Our engineering team will review your requirements and reply with a detailed CAD design proposal and quotation within 24 working hours.
